Heater-Seat Back-Left

Component ID: 159
Component : HEATER-SEAT BACK-LEFT

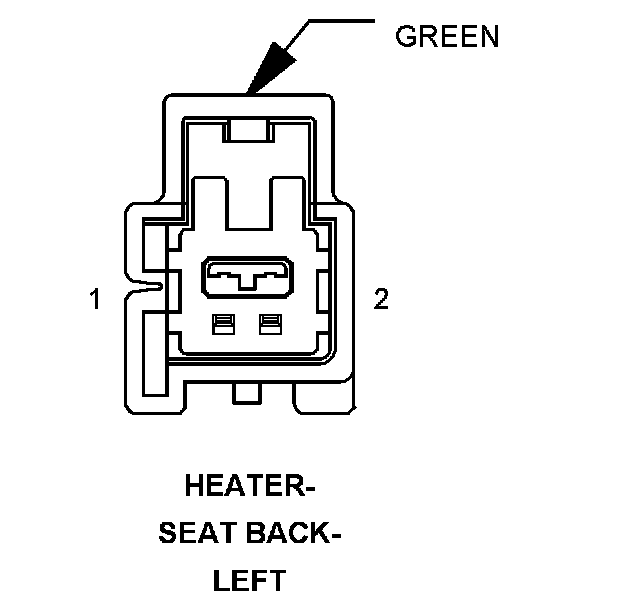

Connector:
Name : HEATER-SEAT BACK-LEFT
Color : GREEN
# of pins : 2




Pin Circuit Description
1 P187 16LG/BR LEFT SEAT HEATER B(+) DRIVER
2 Z911 16BK GROUND

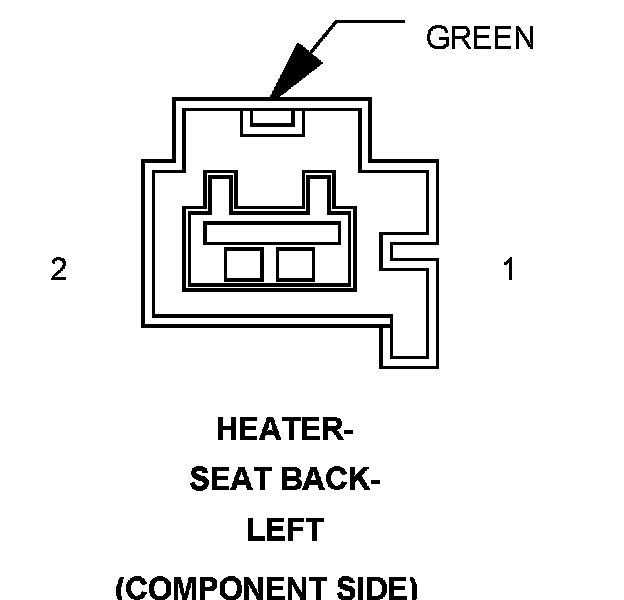

Connector:
Name : HEATER-SEAT BACK-LEFT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 18BK GROUND
2 18LG/RD LEFT SEAT HEATER B(+) DRIVER
