Heater-Seat Back-Right

Component ID: 160
Component : HEATER-SEAT BACK-RIGHT

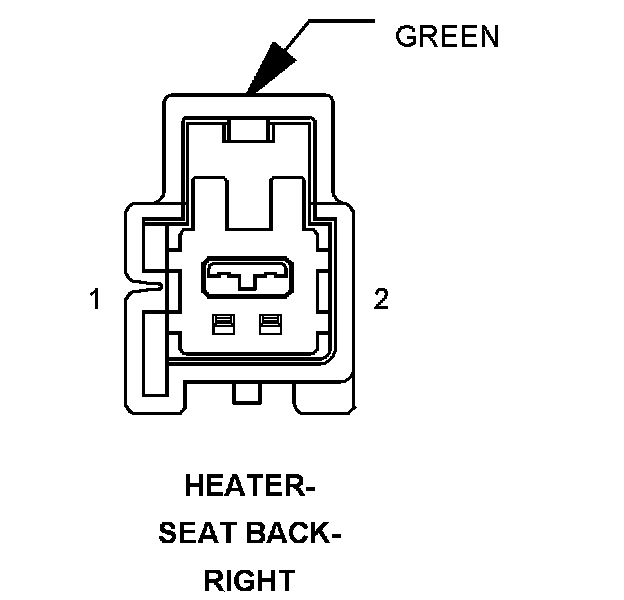

Connector:
Name : HEATER-SEAT BACK-RIGHT
Color : GREEN
# of pins : 2




Pin Circuit Description
1 P188 16LG/VT RIGHT SEAT HEATER B(+) DRIVER
2 Z909 16BK GROUND
2 Z909 16BK/OR GROUND



Connector:
Name : HEATER-SEAT BACK-RIGHT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 18BK GROUND
2 18LG/RD RIGHT SEAT HEATER B(+) DRIVER
