Speaker-Instrument Panel-Left

Component ID: 553

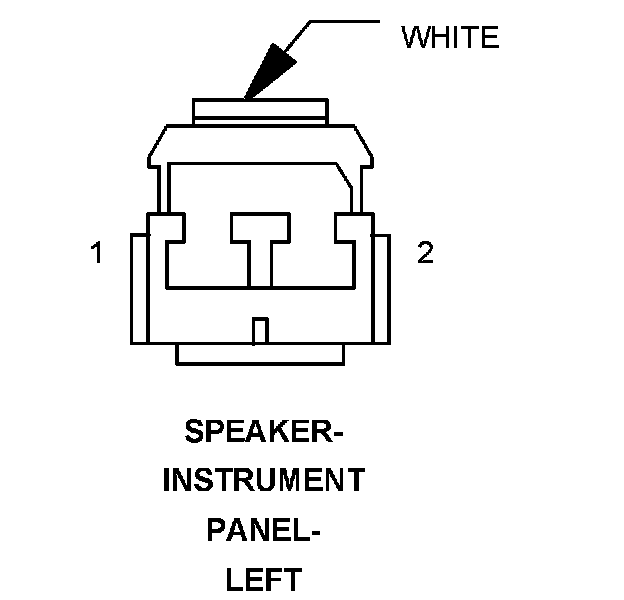

Component : SPEAKER-INSTRUMENT PANEL-LEFT

Connector:
Name : SPEAKER-INSTRUMENT PANEL-LEFT
Color : WHITE
# of pins : 2




Pin Circuit Description
1 X299 18GY/YL LEFT I/P SPEAKER (-)
2 X209 18GY/OR LEFT I/P SPEAKER (+)
