Speaker-Instrument Panel-Right

Component ID: 554

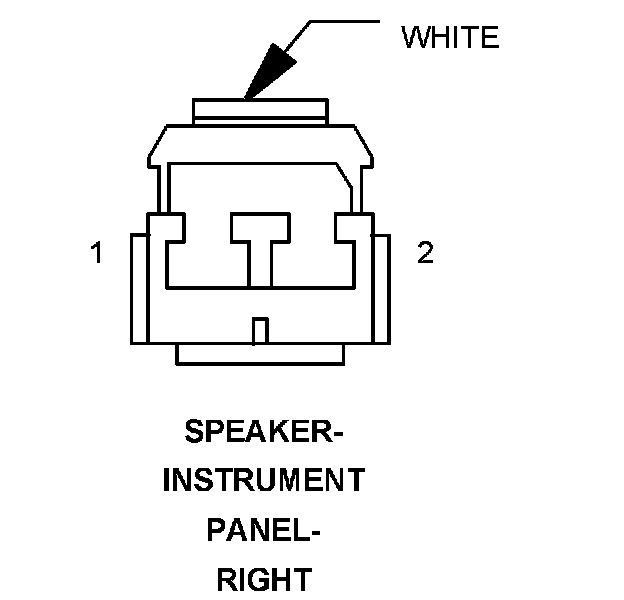

Component : SPEAKER-INSTRUMENT PANEL-RIGHT

Connector:
Name : SPEAKER-INSTRUMENT PANEL-RIGHT
Color : WHITE
# of pins : 2




Pin Circuit Description
1 X298 18GY/LG RIGHT I/P SPEAKER (-)
2 X208 18GY/DG RIGHT I/P SPEAKER (+)

Component Location - 42
