Speaker-Left Rear Door

Component ID: 556
Component : SPEAKER-LEFT REAR DOOR

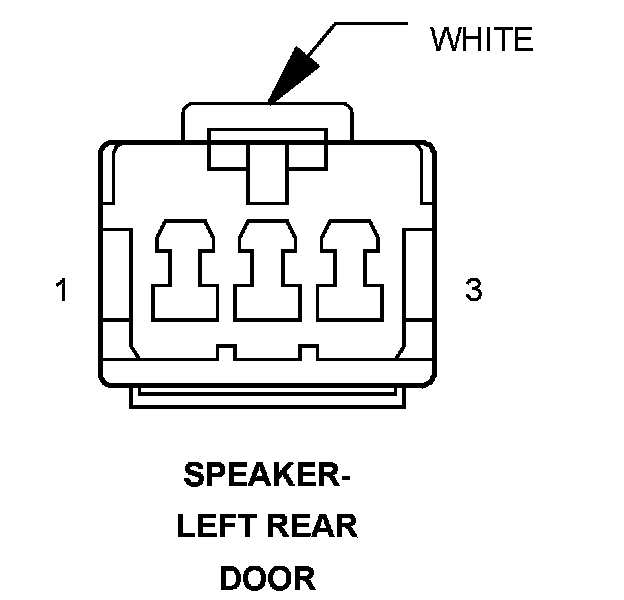

Connector:
Name : SPEAKER-LEFT REAR DOOR
Color : WHITE
# of pins : 3




Pin Circuit Description
1 X205 18GY/LG AMPLIFIED LEFT REAR DOOR SPEAKER (+)
2 - -
3 X295 18GY/DG AMPLIFIED LEFT REAR DOOR SPEAKER (-)

Component Location - 67
