Monitor-DVD

Component ID: 236
Component : MONITOR-DVD

Connector:

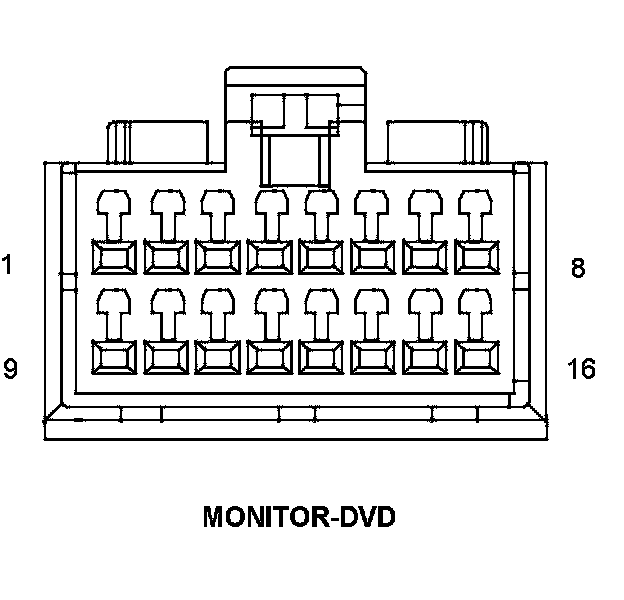

Name : MONITOR-DVD
Color :
# of pins : 16




Pin Circuit Description
1 A114 20GY/RD FUSED B(+)
2 X523 20GY/LB REMOTE CONTROL FUNCTION 1
3 D91 20WT/DB BMM1 ADDRESS BUS
4 - -
5 X965 20GY/BR I/R AUDIO LEFT
6 - -
7 X915 20LB VIDEO RETURN
8 X515 20GY VIDEO SIGNAL
9 Z915 18BK GROUND
10 X524 20GY/OR REMOTE CONTROL FUNCTION 2
11 D92 20WT BMM2 ADDRESS BUS
12 X555 20VT/OR VIDEO PLAY SIGNAL
13 X964 20GY/WT I/R AUDIO RIGHT
14 X969 20GY/DB I/R AUDIO RETURN
15 - -
16 X955 20 SHIELD

Component Location - 48




Component Location - 51
