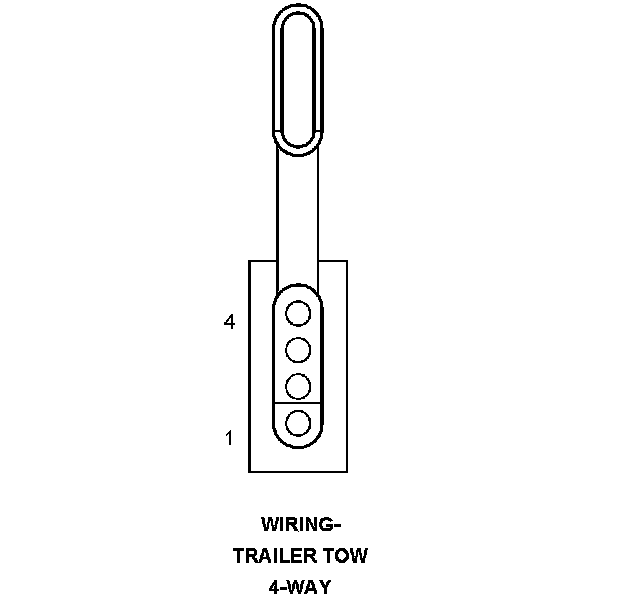

Wiring-Trailer Tow 4-Way

Component ID: 602
Component : WIRING-TRAILER TOW 4-WAY

Connector:
Name : WIRING-TRAILER TOW 4-WAY
Color :
# of pins : 4




Pin Circuit Description
1 Z912 14BK GROUND
2 L76 18WT/BR FUSED PARK LAMP RELAY OUTPUT
3 L615 18WT/YL TRAILER TOW LEFT STOP/TURN SIGNAL
4 L614 18WT/DB TRAILER TOW RIGHT STOP/TURN SIGNAL

Component Location - 70
