Wiring-Trailer Tow 7-Way

Component ID: 603
Component : WIRING-TRAILER TOW 7-WAY

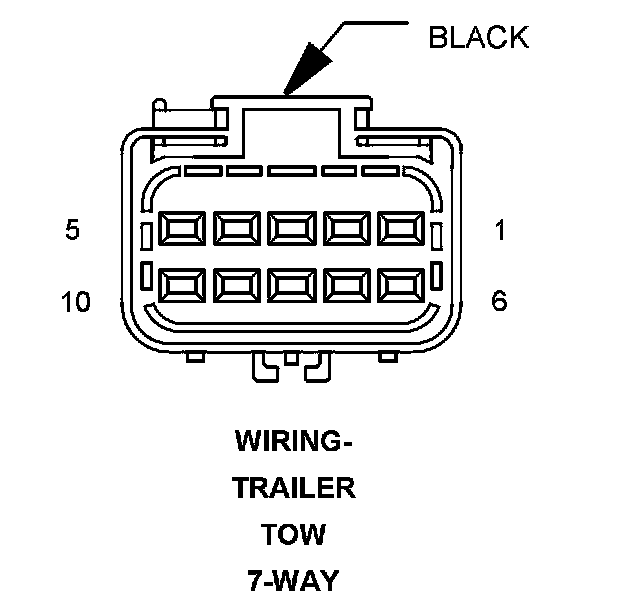

Connector:
Name : WIRING-TRAILER TOW 7-WAY
Color : BLACK
# of pins : 10




Pin Circuit Description
1 - -
2 L614 18WT/DB TRAILER TOW RIGHT STOP/TURN SIGNAL
3 L1 18WT/LG BACKUP LAMP FEED
4 A930 14RD/WT POWER OUTLET RELAY OUTPUT
5 L76 18WT/BR FUSED PARK LAMP RELAY OUTPUT
6 - -
7 B400 14DG TRAILER TOW ELECTRIC BRAKE OUTPUT
8 Z912 14BK GROUND
9 Z912 14BK GROUND
10 L615 18WT/YL TRAILER TOW LEFT STOP/TURN SIGNAL

Component Location - 70
