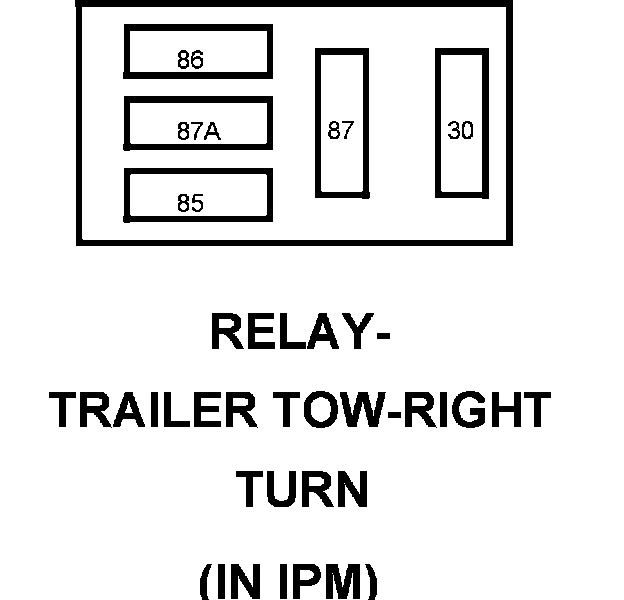

Relay-Trailer Tow-Right Turn

Component ID: 295
Component : RELAY-TRAILER TOW-RIGHT TURN

Connector:
Name : RELAY-TRAILER TOW-RIGHT TURN
Color :
# of pins : 0




30 A921 18RD FUSED B(+)
85 L656 20WT/DG RIGHT TRAILER TOW BRAKE LAMP RELAY CONTROL
86 A921 18RD FUSED B(+)
87 L614 18WT/DB TRAILER TOW RIGHT STOP/TURN SIGNAL
87A - -
