Solenoid-Multi Displacement System Cyl 4

Component ID: 549

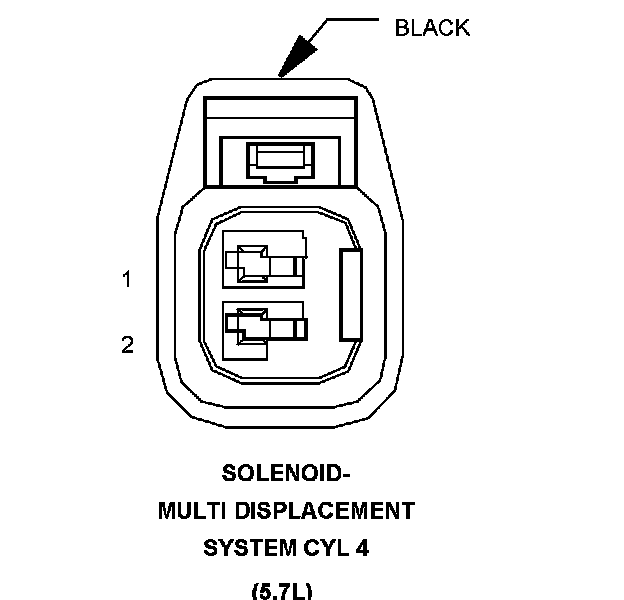

Component : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 4

Connector:
Name : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 4
Color : BLACK
# of pins : 2
Qualifier : (5.7L)




Pin Circuit Description
1 K452 20BR/LB MDS SOL CONTROL NO. 4
2 Z42 20BK/LG GROUND
