Solenoid-Multi Displacement System Cyl 6

Component ID: 550

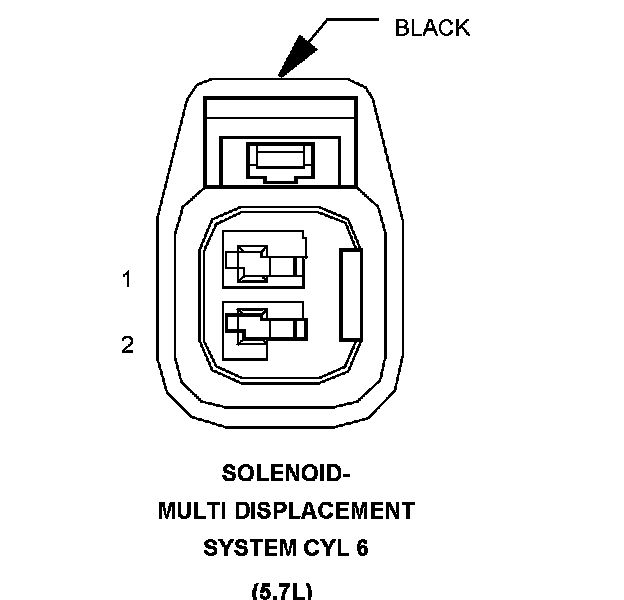

Component : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 6

Connector:
Name : SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 6
Color : BLACK
# of pins : 2
Qualifier : (5.7L)




Pin Circuit Description
1 K453 20BR/DG MDS SOL CONTROL NO. 6
2 Z42 20BK/LG GROUND
