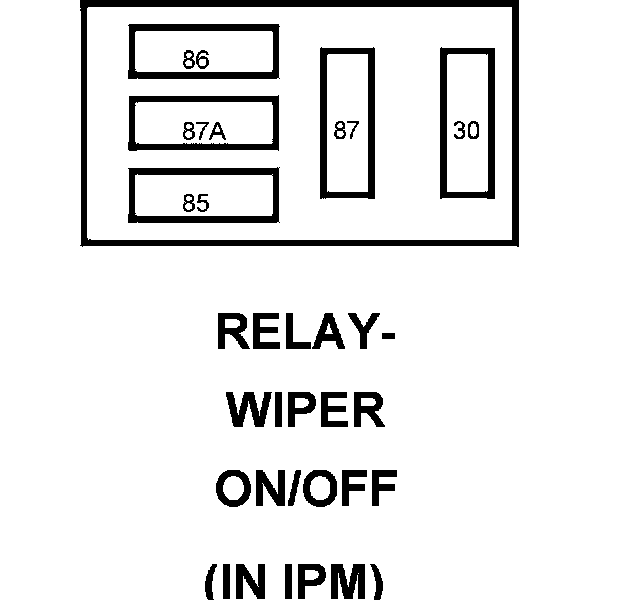

Relay-Wiper On/Off

Component ID: 299
Component : RELAY-WIPER ON/OFF

Connector:
Name : RELAY-WIPER ON/OFF
Color :
# of pins : 0




30 W6 16BR/LB WIPER ON/OFF RELAY OUTPUT
85 W5 20BR/LG WIPER ON/OFF RELAY CONTROL
86 A5 16RD/VT FUSED B(+)
87 A5 16RD/VT FUSED B(+)
87A Z387 16BK GROUND
