Group 8W-13 (Integrated Power Module)

8w-13-02:



8w-13-09:

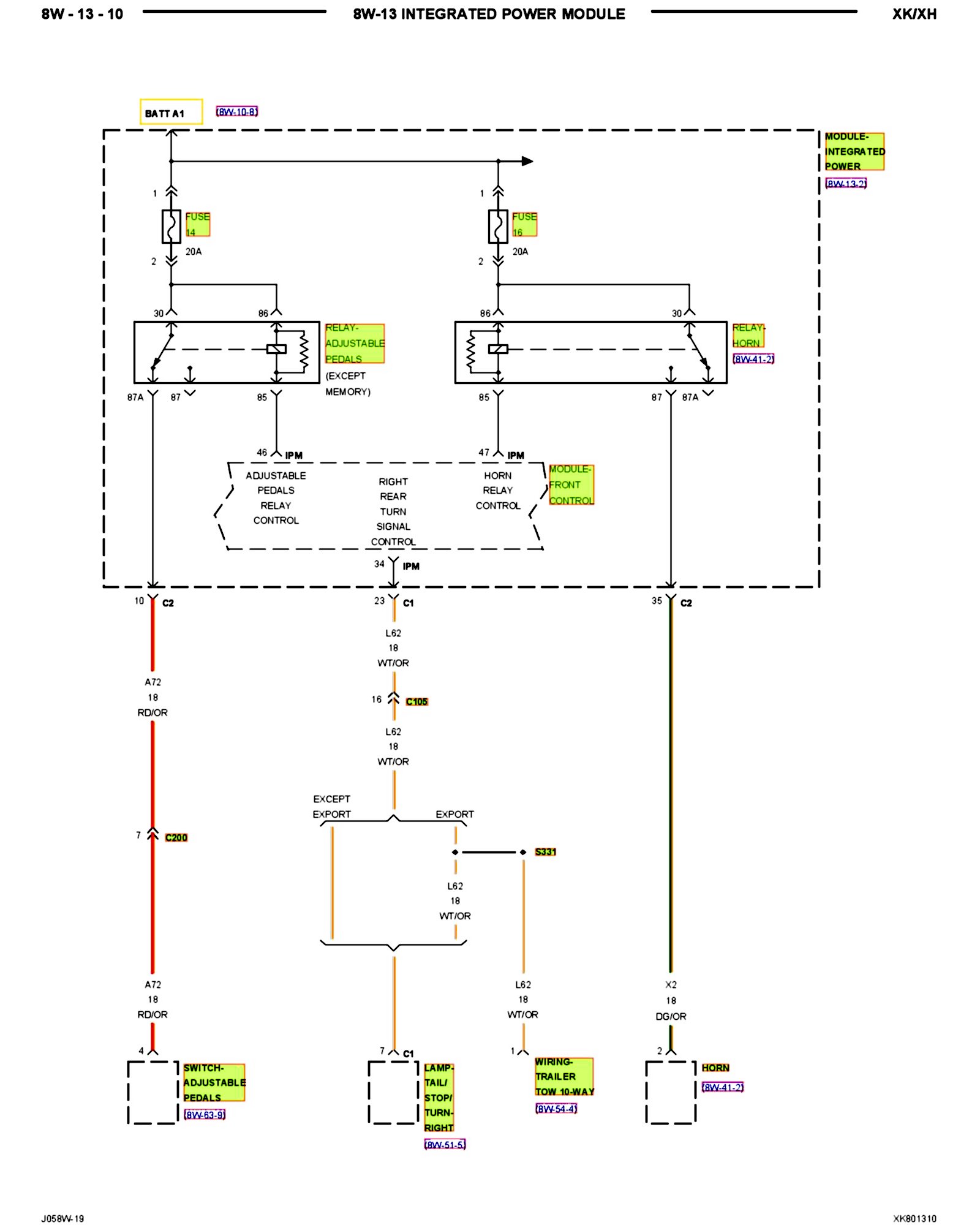

8w-13-10:



8w-13-11:



8w-13-12:



8w-13-13:



8w-13-14:

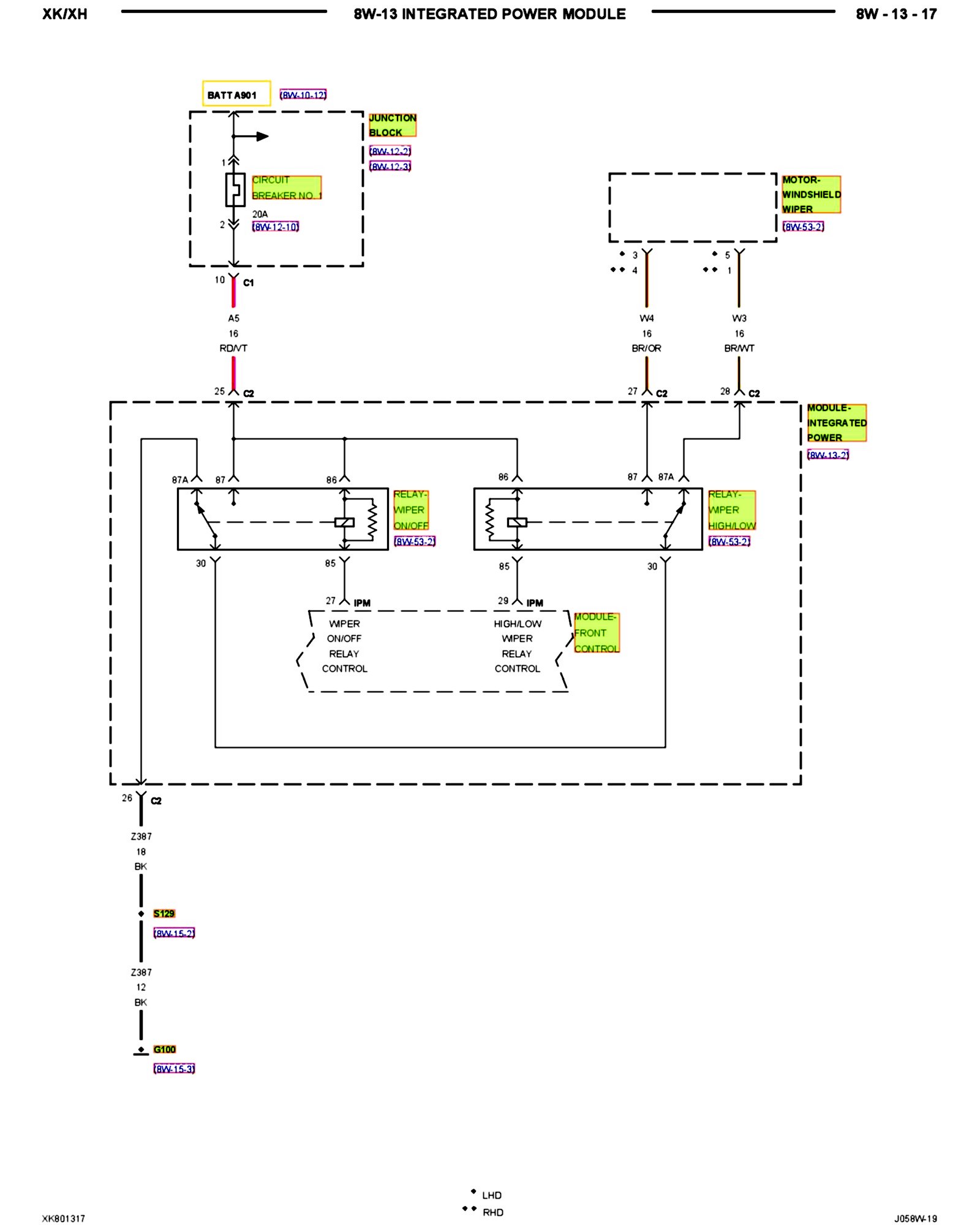

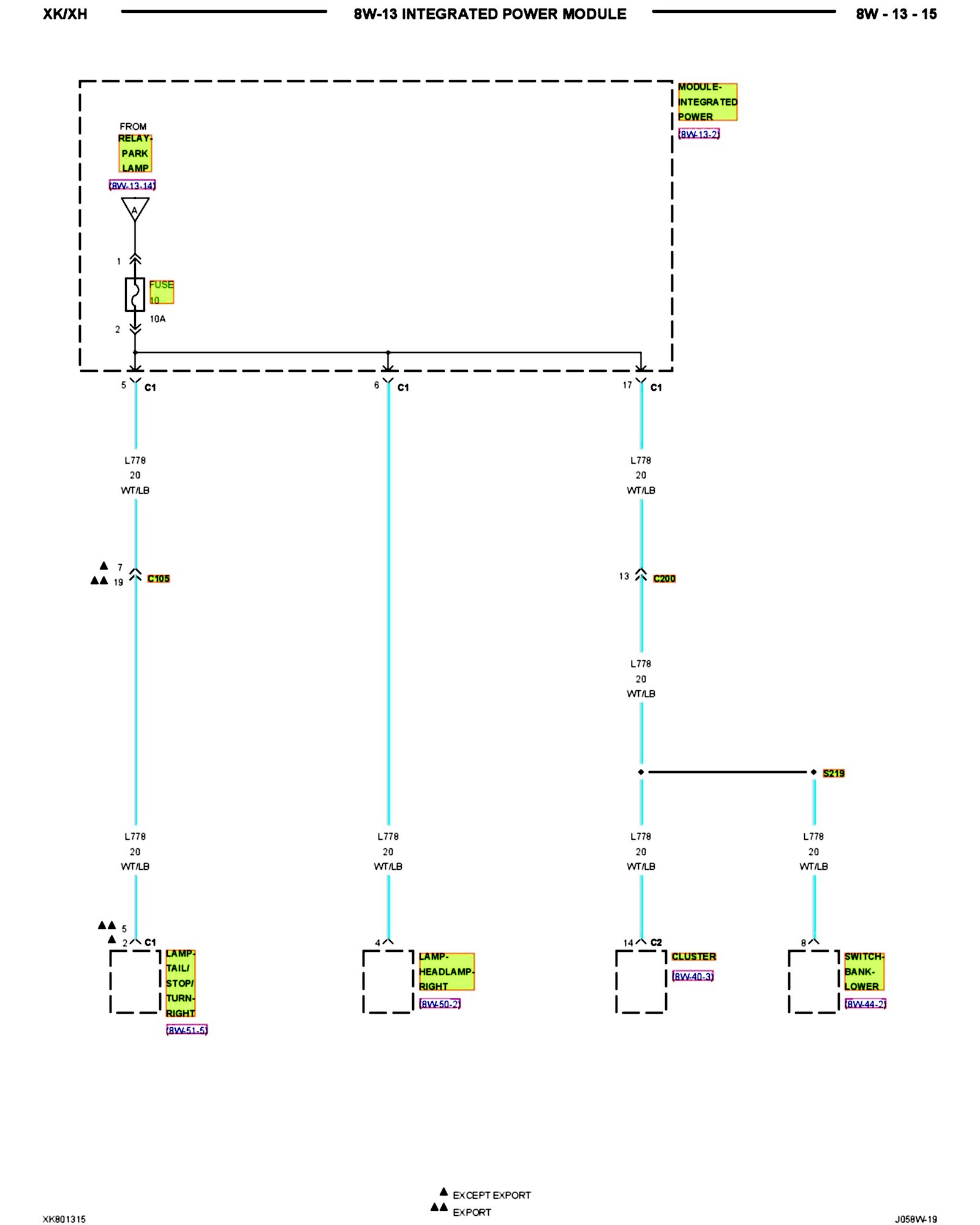

8w-13-15:



8w-13-16:



8w-13-17:



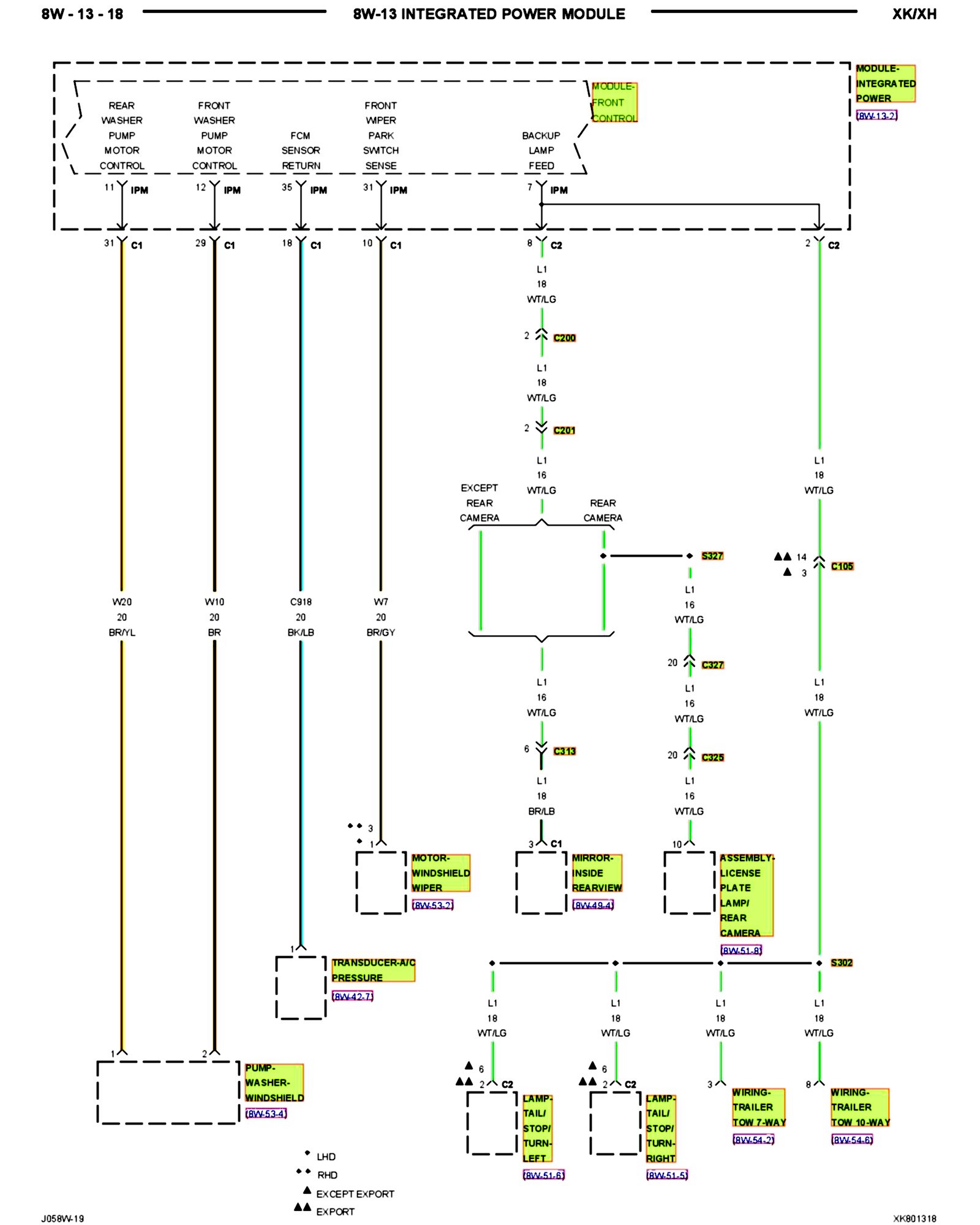

8w-13-18:



8w-13-19:



8w-13-20:



8w-13-21:



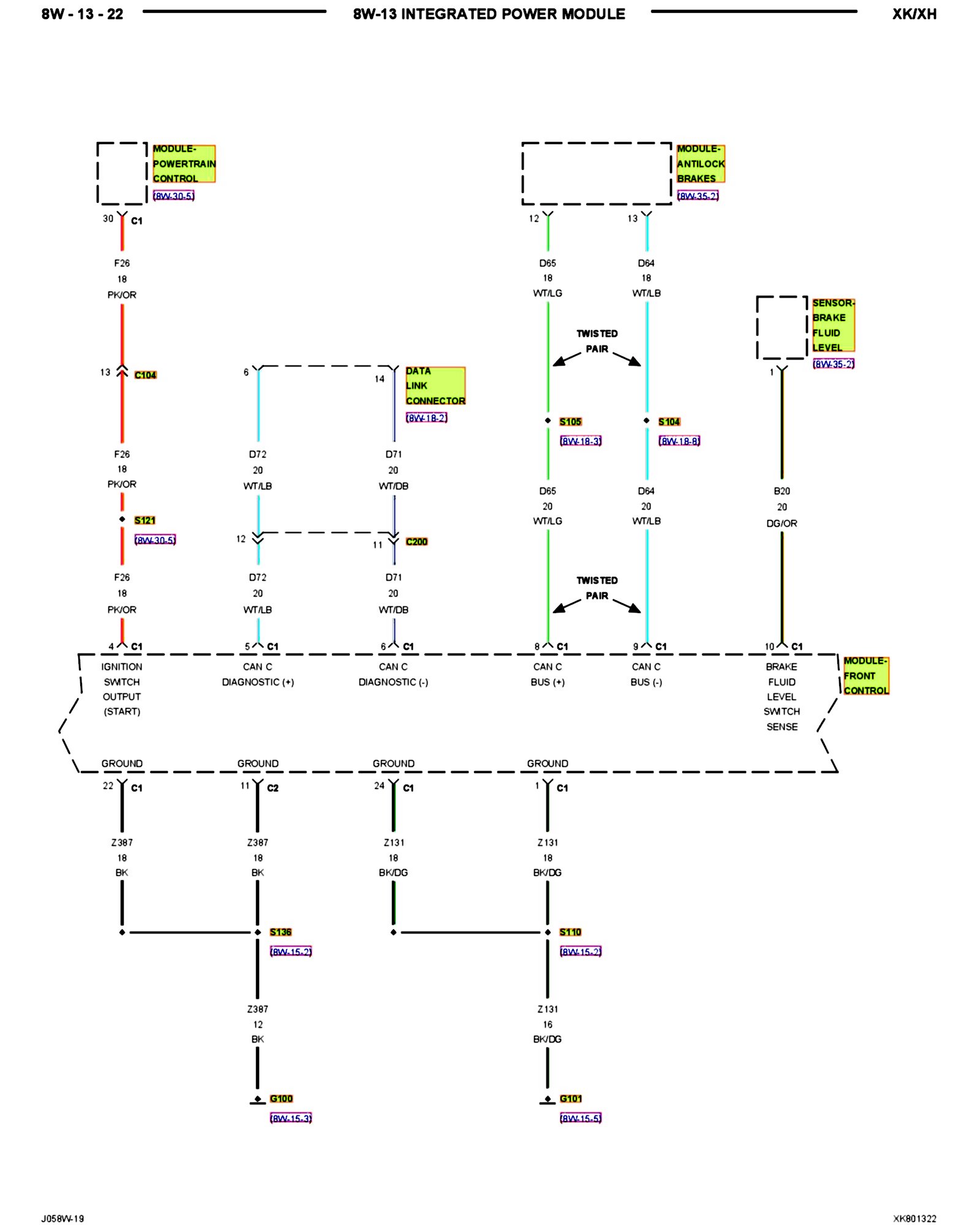

8w-13-22:

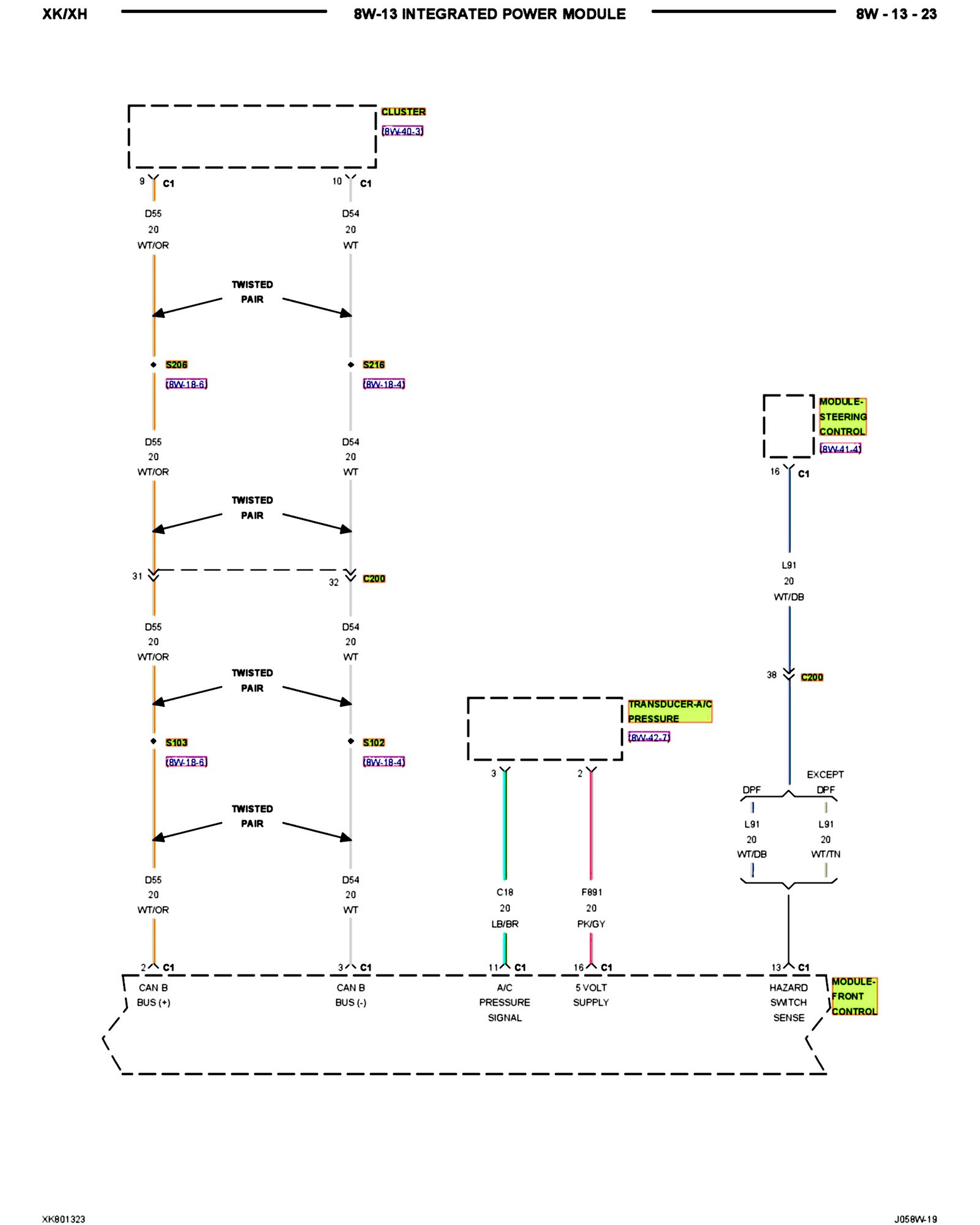

8w-13-23:

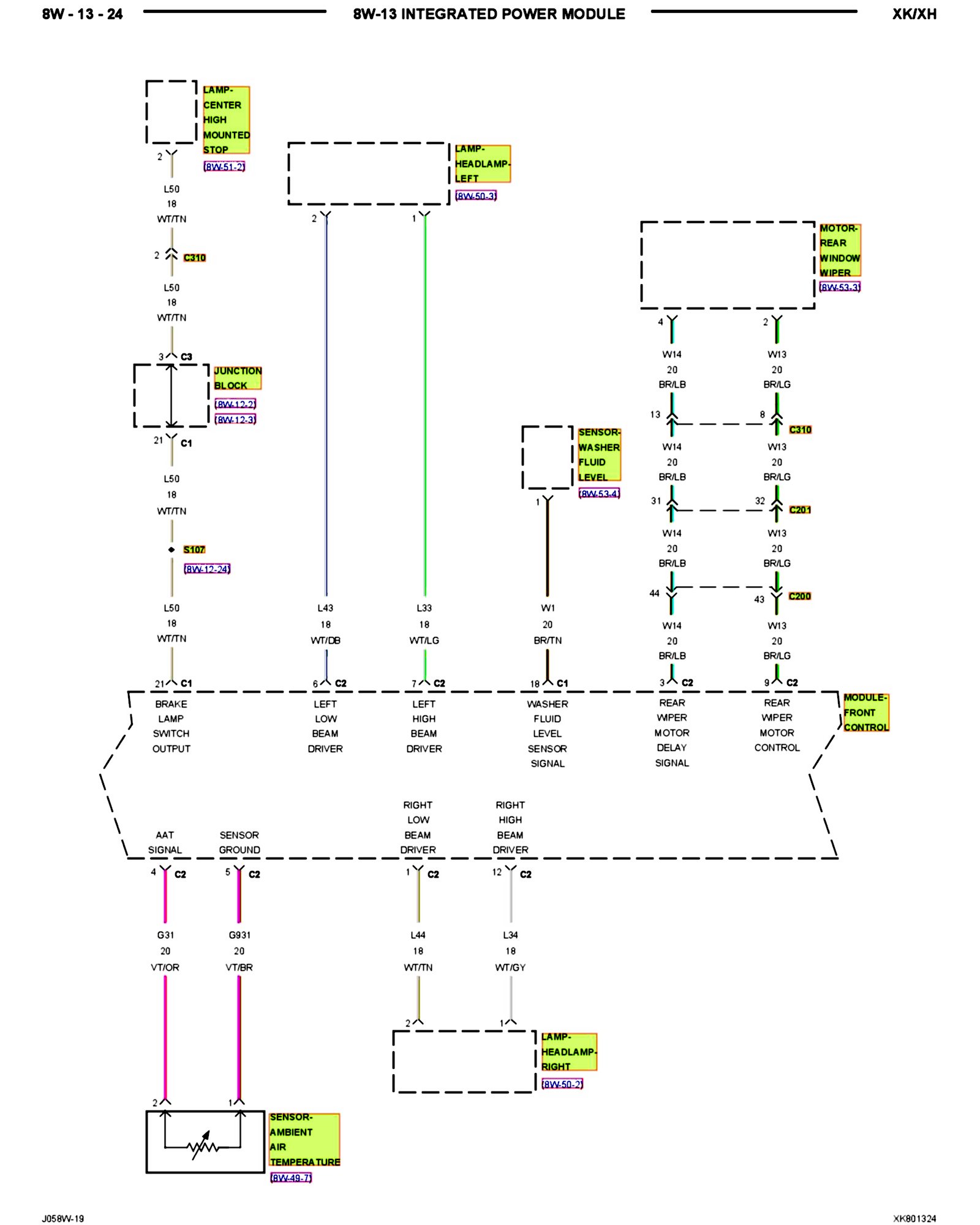

8w-13-24:

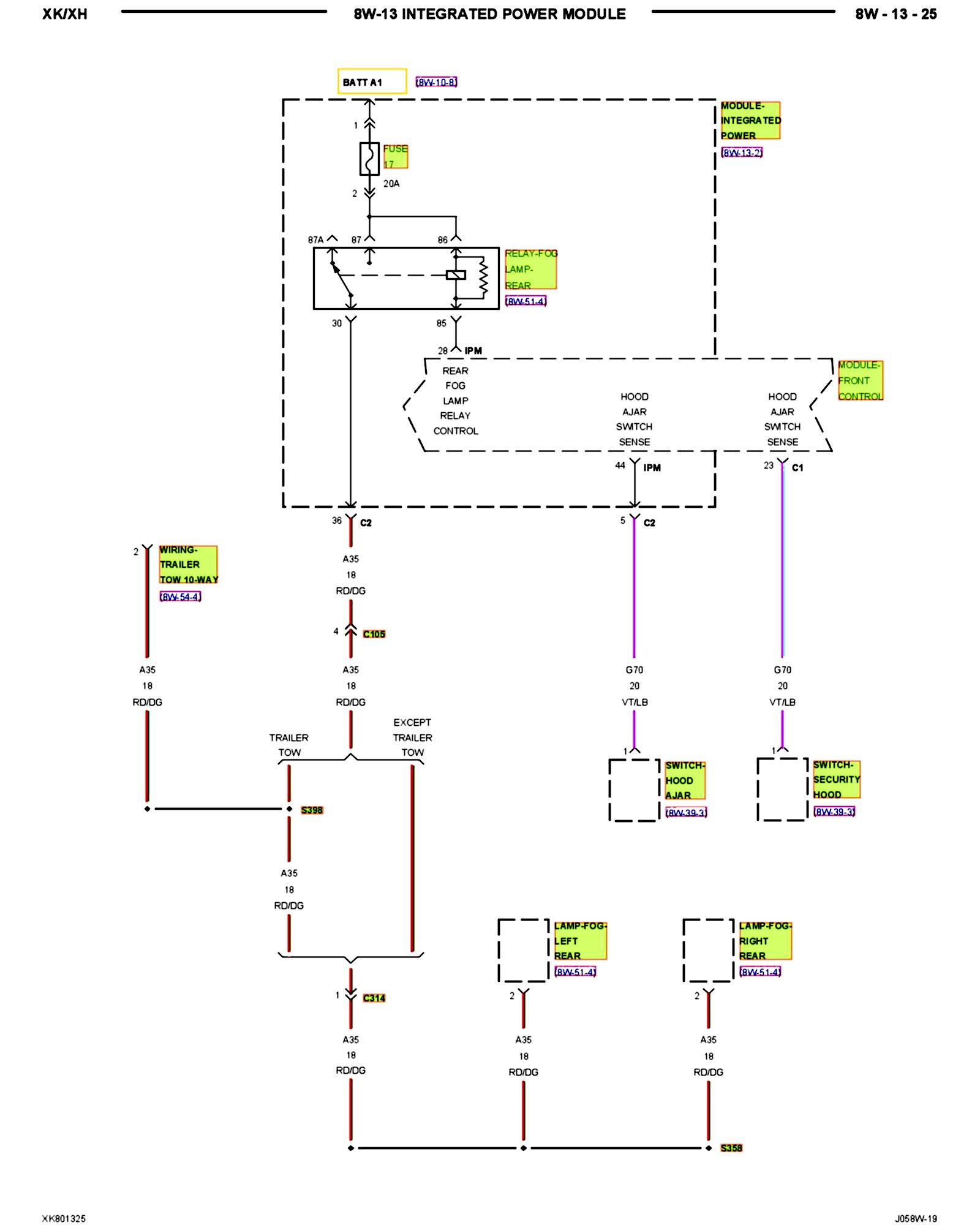

8w-13-25:
