Lamp-Tail/Stop/Turn-Left

Component ID: 190
Component : LAMP-TAIL/STOP/TURN-LEFT

Connector:
Name : LAMP-TAIL/STOP/TURN-LEFT
Color :
# of pins : 8




Pin Circuit Description
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 A35 18RD/DG -
3 L614 18WT/DB -
4 L615 18WT/YL -
5 L777 20WT/VT FUSED PARK LAMP RELAY OUTPUT
6 L1 18WT/LG BACKUP LAMP FEED
7 L63 18WT/DG LEFT REAR TURN SIGNAL CONTROL
8 Z918 18BK GROUND

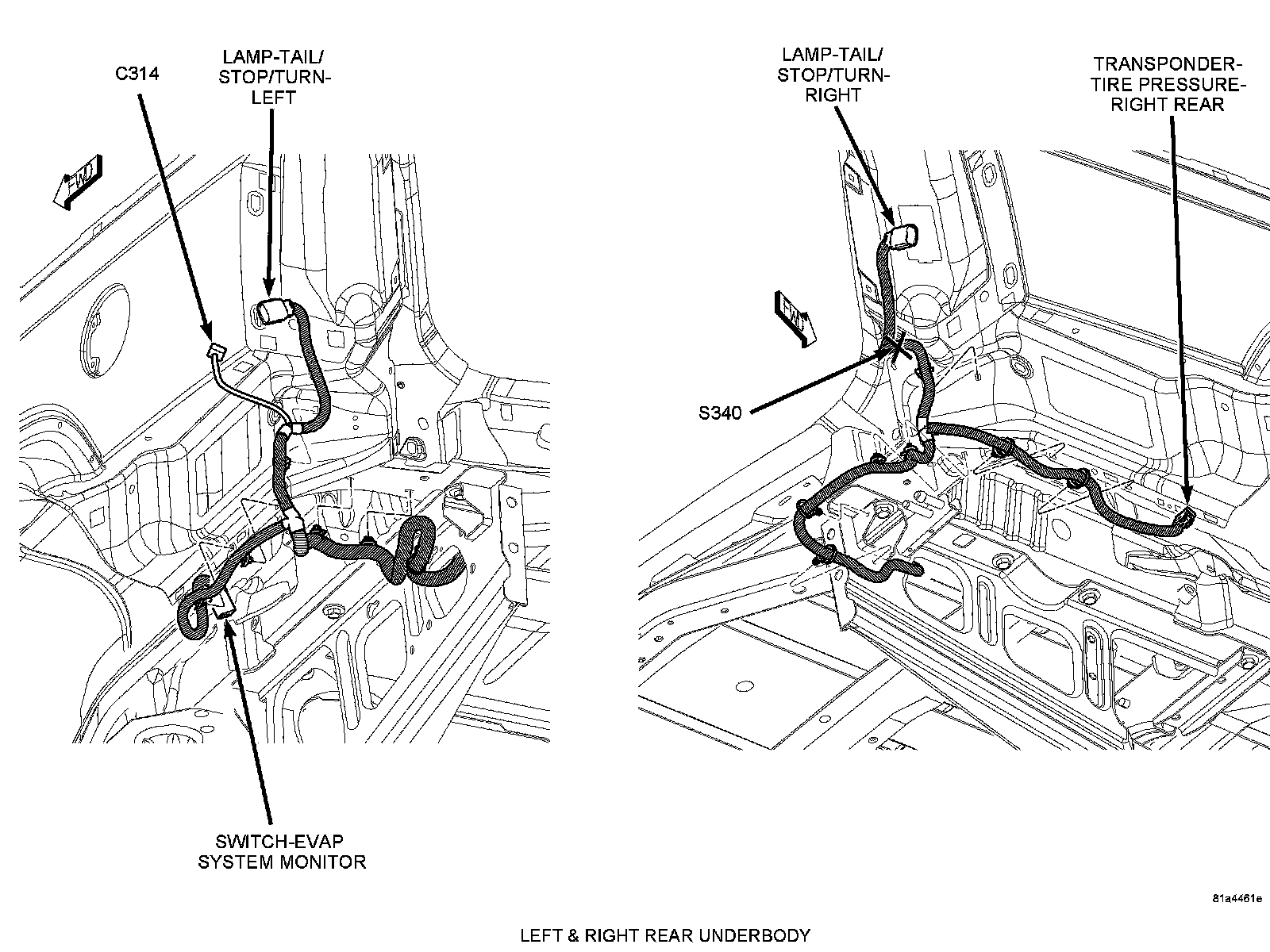

Component Location - 71
