Intake Manifold

INTAKE MANIFOLD TORQUE AND SEQUENCE

Install intake manifold retaining bolts, and tighten in sequence from the middle bolts towards the outside in a crisscross pattern. Torque fasteners to 12 Nm (105 in. lbs.).

THROTTLE BODY TORQUE AND SEQUENCE

1. Install all throttle body mounting bolts finger tight.





CAUTION: The throttle body mounting bolts MUST be torqued to specifications. DO NOT OVER TIGHTEN MOUNTING BOLTS. Over tightening can cause damage to the throttle body, throttle plate, gaskets, bolts and/or the intake manifold. Proper torque of the mounting bolts is critical to normal operation.

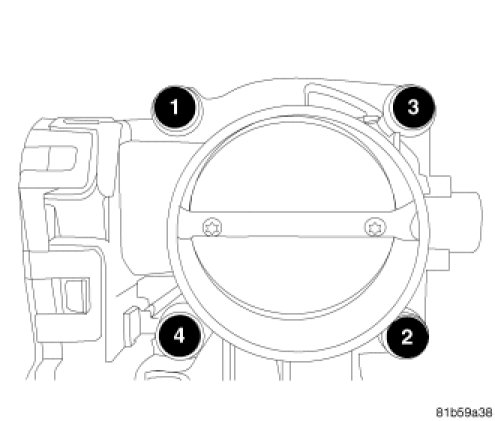

2. Obtain a torque wrench. Tighten mounting bolts (as shown) in a mandatory torque criss-cross pattern sequence to 5.6 Nm (50 in. lbs.).
