Jeep Truck
>>
2008
>>
Compass 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor Relay
>>
Radiator Fan High/Low Relay (In F/RB)
Radiator Fan High/Low Relay (In F/RB)

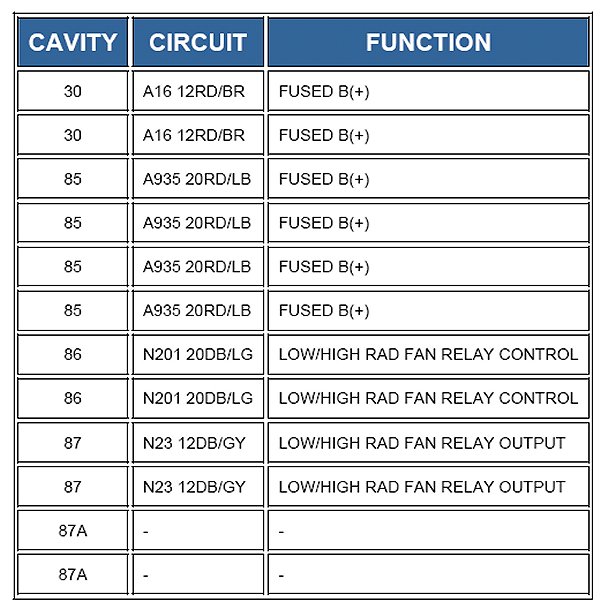

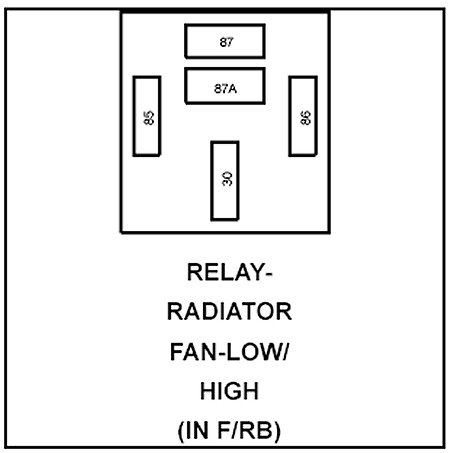

Radiator Fan-Low/High Relay
