Airbag-Passenger Squib 2

Component ID: 239

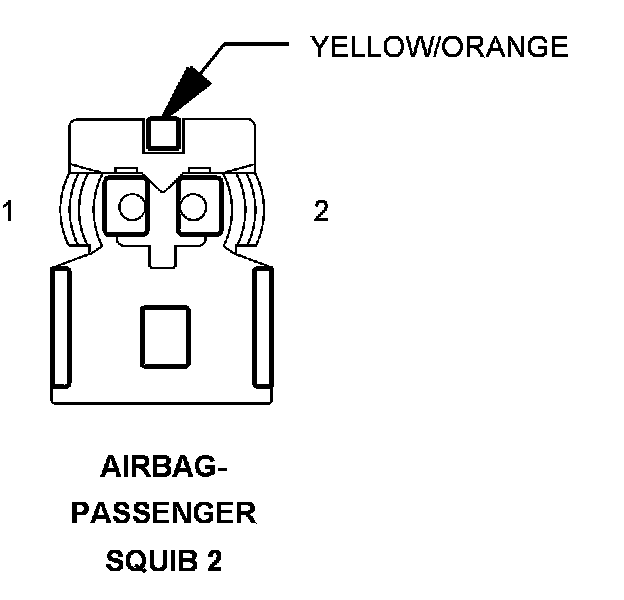

Component : AIRBAG-PASSENGER SQUIB 2

Connector:
Name : AIRBAG-PASSENGER SQUIB 2
Color : YELLOW/ORANGE
# of pins : 2




Pin Circuit Description
1 R62 18LB/VT PASSENGER SQUIB 2 LINE 2
2 R64 18LB/WT PASSENGER SQUIB 2 LINE 1

Component Location - 24




Component Location - 26




Component Location - 29
