Airbag-Seat-Left

Component ID: 355

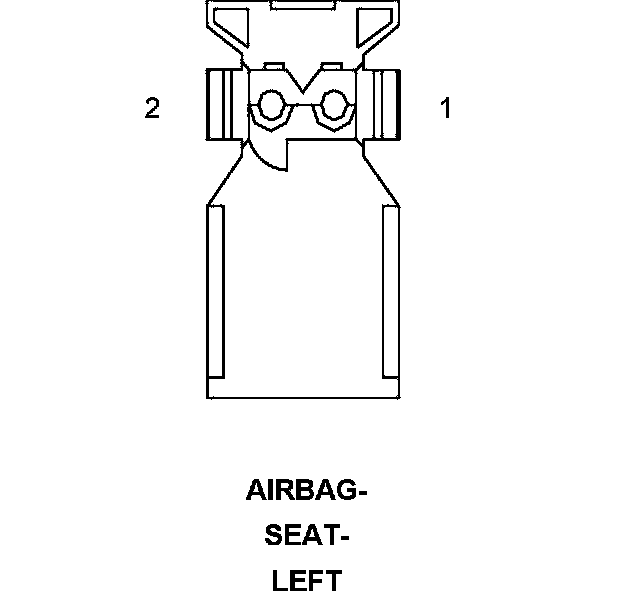

Component : AIRBAG-SEAT-LEFT

Connector:
Name : AIRBAG-SEAT-LEFT
Color :
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 R5 18LB/VT LEFT SEAT SQUIB 1 LINE 2
2 R7 18LG/GY LEFT SEAT SQUIB 1 LINE 1
