Antenna, Radio

Component ID: 252
Component : ANTENNA-RADIO

Connector:
Name : ANTENNA-RADIO
Color :
# of pins : 2
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 D931 14WT/YL ANTENNA SIGNAL
2 D5 14WT/OR ANTENNA GROUND

Component Location - 38




Component Location - 40





Connector:

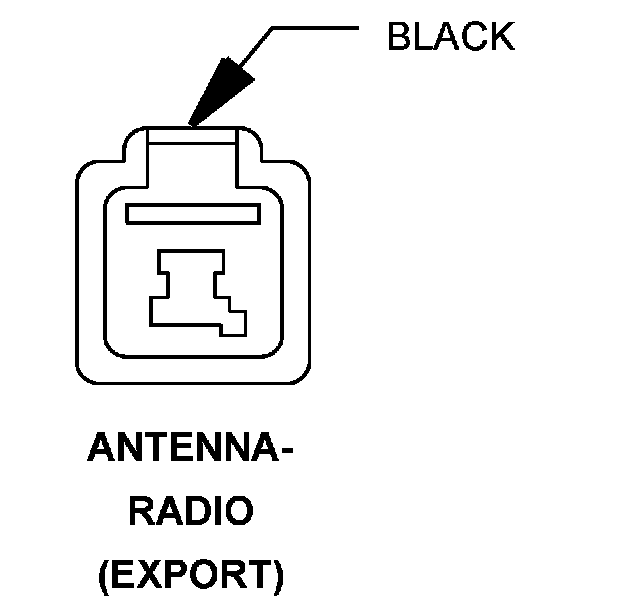

Name : ANTENNA-RADIO
Color : BLACK
# of pins : 1
Qualifier : (EXPORT)




Pin Circuit Description
1 X60 20GY/RD POWER ANTENNA SIGNAL

Component Location - 38




Component Location - 40
