C323

Component ID: 384
Component : C323

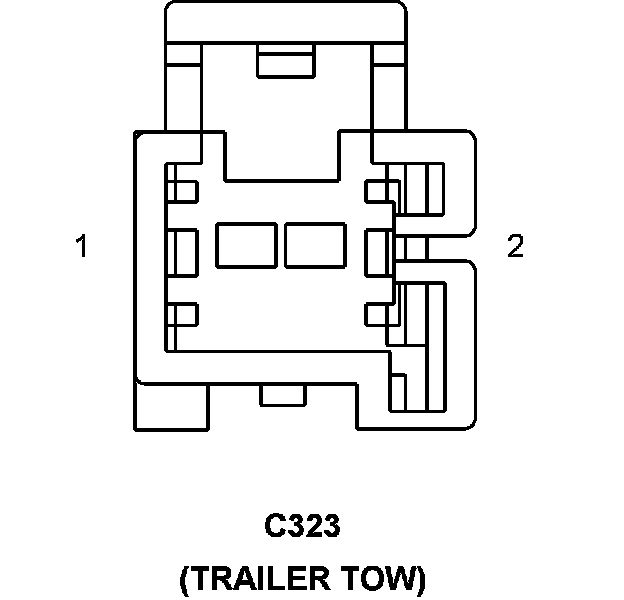

Connector:
Name : C323
Color :
# of pins : 2
Qualifier : (TRAILER TOW)
Gender : FEMALE




Pin Circuit Description
1 - -
2 A100 18RD/VT FUSED B(+)

Component Location - 53




Component Location - 68





Connector:
Name : C323
Color :
# of pins : 2
Qualifier : (TRAILER TOW)
Gender : MALE




Pin Circuit Description
1 - -
2 A100 18RD/VT FUSED B(+)

Component Location - 53




Component Location - 68
