Cargo Lamp: Diagrams

Component ID: 344

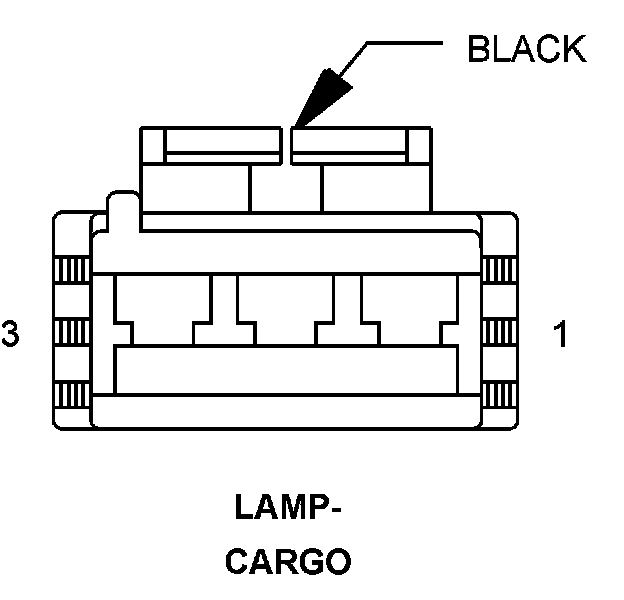

Component : LAMP-CARGO

Connector:
Name : LAMP-CARGO
Color : BLACK
# of pins : 3




Pin Circuit Description
1 - -
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 Z936 20BK/LB GROUND

Component Location - 37
