Cargo Lamp: Diagrams

Component ID: 168
Component : LAMP-CARGO

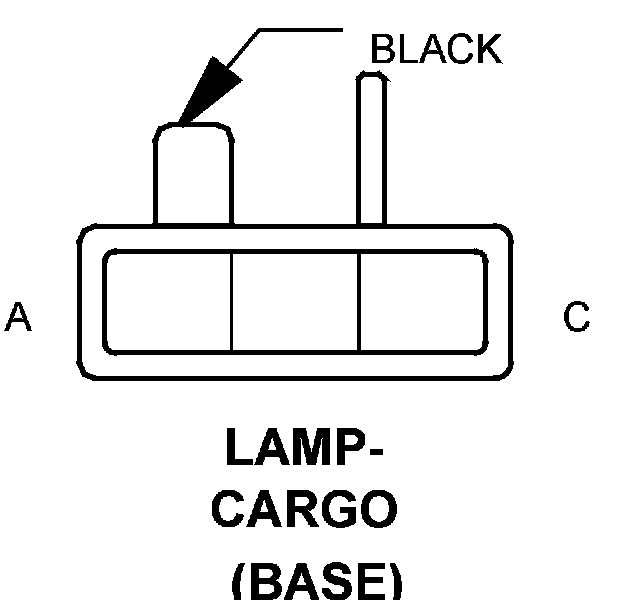

Connector:
Name : LAMP-CARGO
Color : BLACK
# of pins : 3
Qualifier : (BASE)




A A931 20RD/WT FUSED B(+)
B M22 20YL/OR COURTESY LAMPS DRIVER
C - -

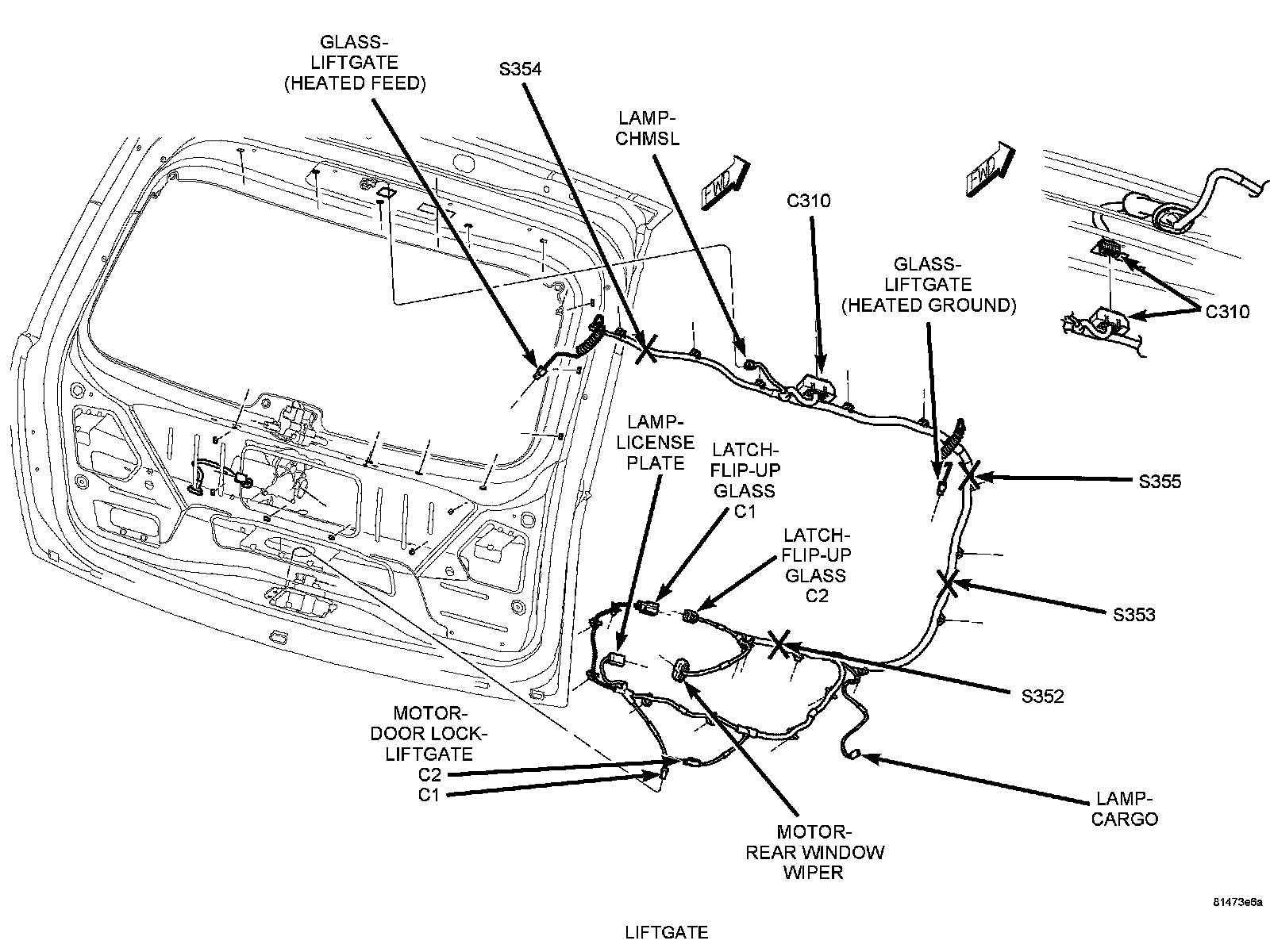

Component Location - 74
