Center Mounted Brake Lamp: Diagrams

Component ID: 169

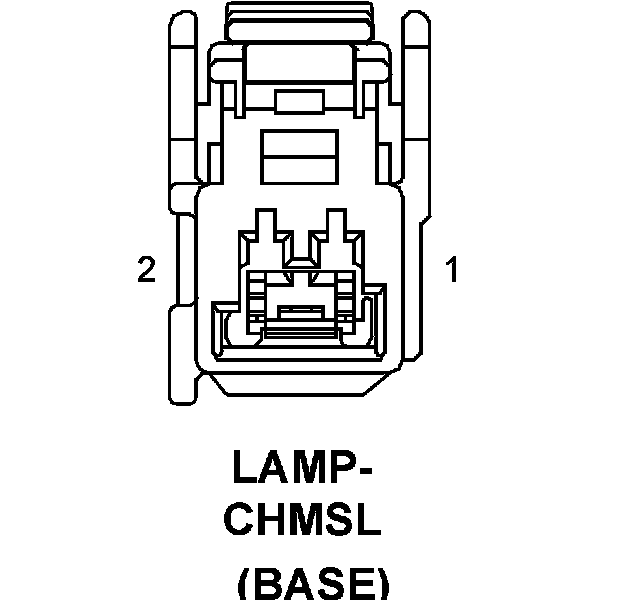

Component : LAMP-CHMSL

Connector:
Name : LAMP-CHMSL
Color :
# of pins : 2
Qualifier : (BASE)




Pin Circuit Description
1 Z800 18BK GROUND
2 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT

Component Location - 74
