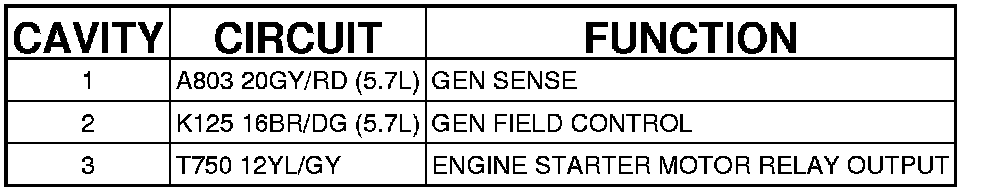

C102 (Headlamp And Dash Side) 3 Way
C102 (Headlamp And Dash Side) 3 Way
Connector - (
HEADLAMP
AND DASH SIDE) 3 WAY

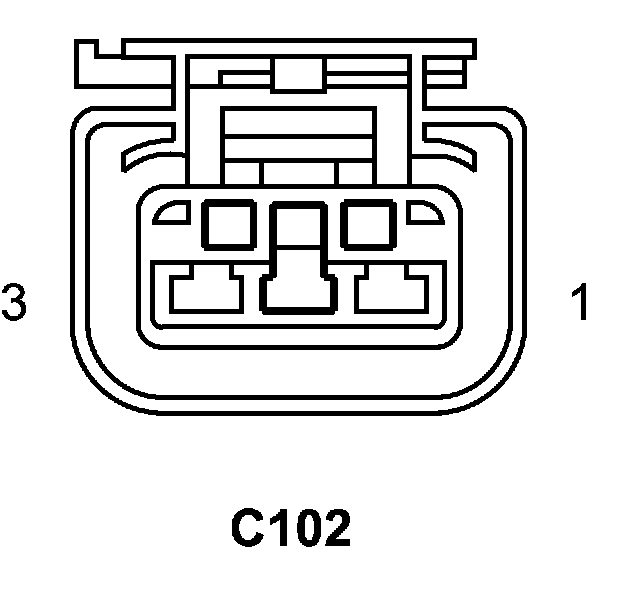

C102 - (
HEADLAMP
AND DASH SIDE) 3 WAY
