C114 (Headlamp And Dash Side) 20 Way
C114 (Headlamp And Dash Side) 20 Way

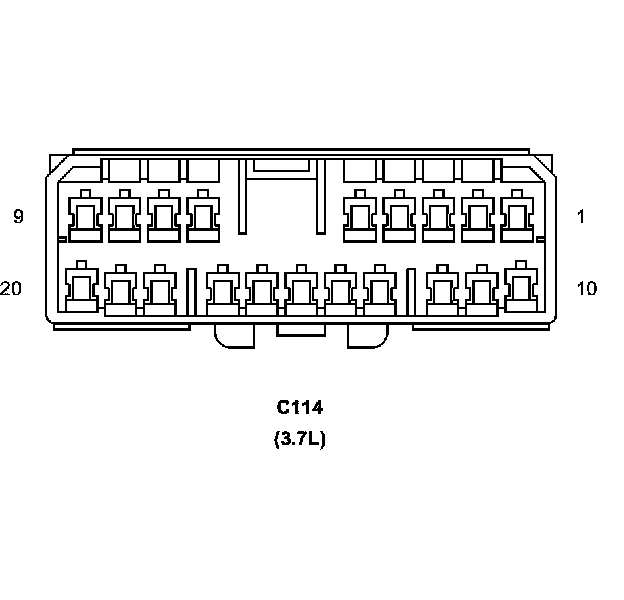

Connector (3.7L) - (
HEADLAMP
AND DASH SIDE) 20 WAY
C114 (3.7L) - (
HEADLAMP
AND DASH SIDE) 20 WAY
