C328 (Rear HVAC Jumper Side) 6 Way
C328 (Rear HVAC Jumper Side) 6 Way

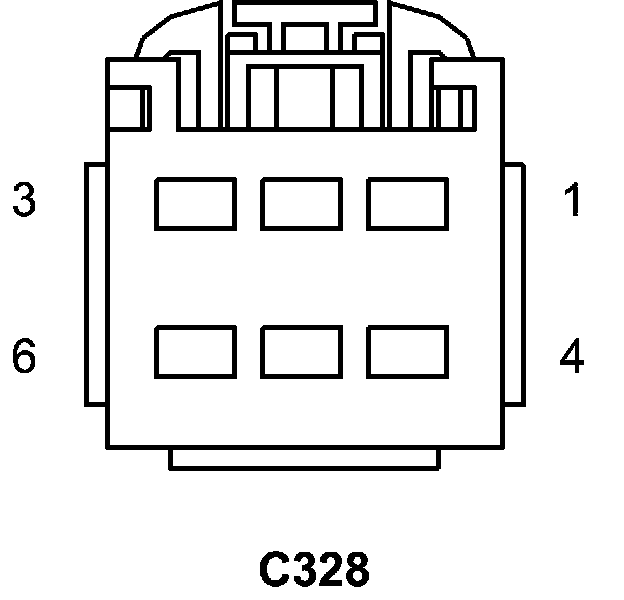

Connector - (REAR HVAC JUMPER SIDE) 6 WAY

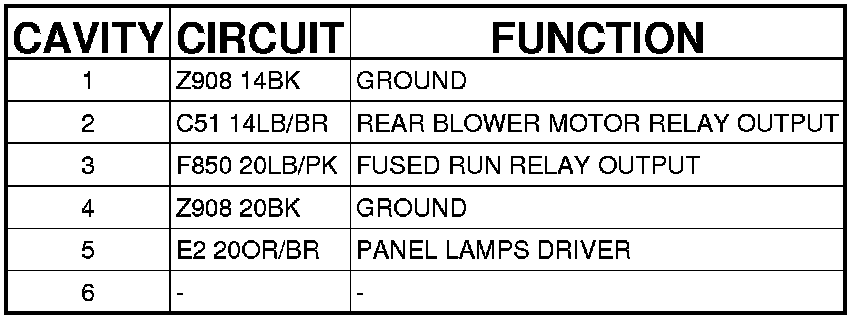

C328 - (REAR HVAC JUMPER SIDE) 6 WAY
