C304 (SAB) (Right Seat Side) 14 Way
C304 (SAB) (Right Seat Side) 14 Way

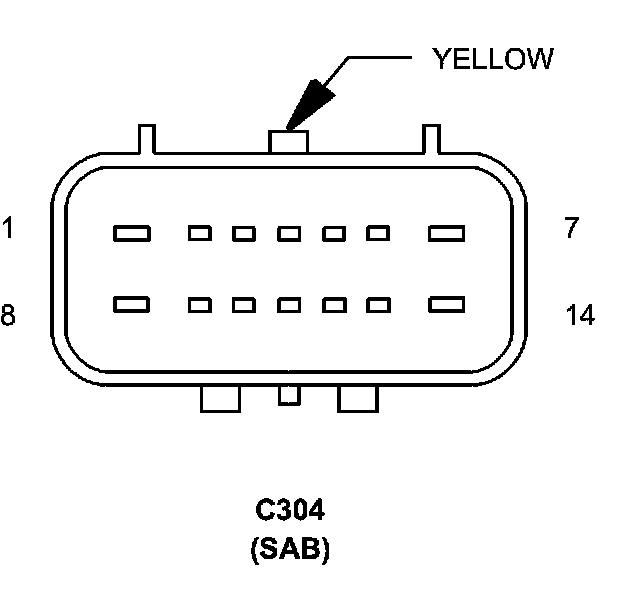

Connector (SAB) - (RIGHT SEAT SIDE) 14 WAY

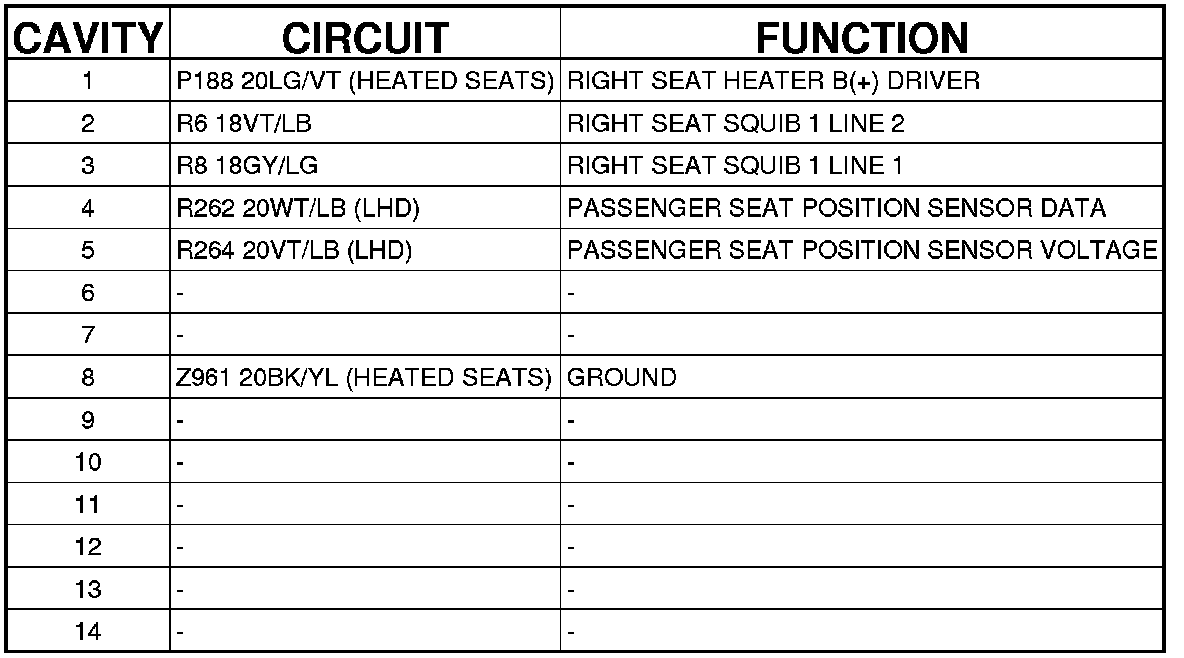

C304 (SAB) - (RIGHT SEAT SIDE) 14 WAY
