C323 (Trailer Tow) (Body Side) 2 Way
C323 (Trailer Tow) (Body Side) 2 Way

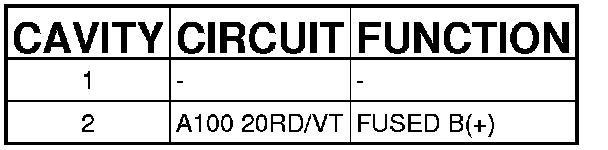

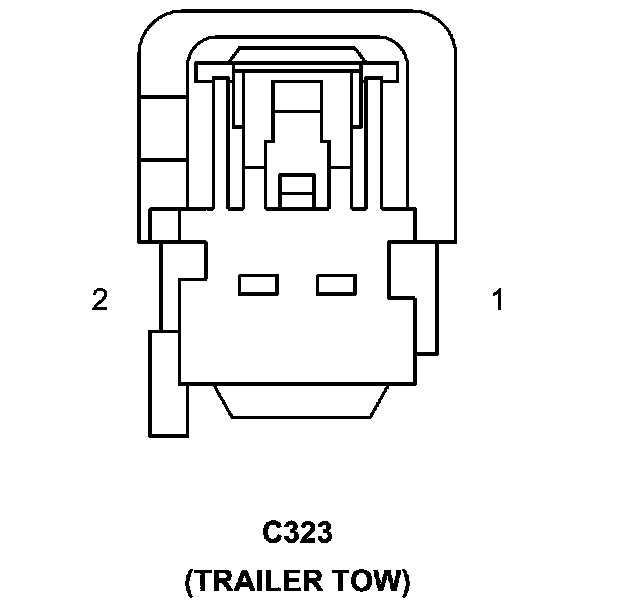

Connector (TRAILER TOW) - (BODY SIDE) 2 WAY
C323 (TRAILER TOW) - (BODY SIDE) 2 WAY
