Valve Body - Operation
Valve Body - Operation
OPERATION

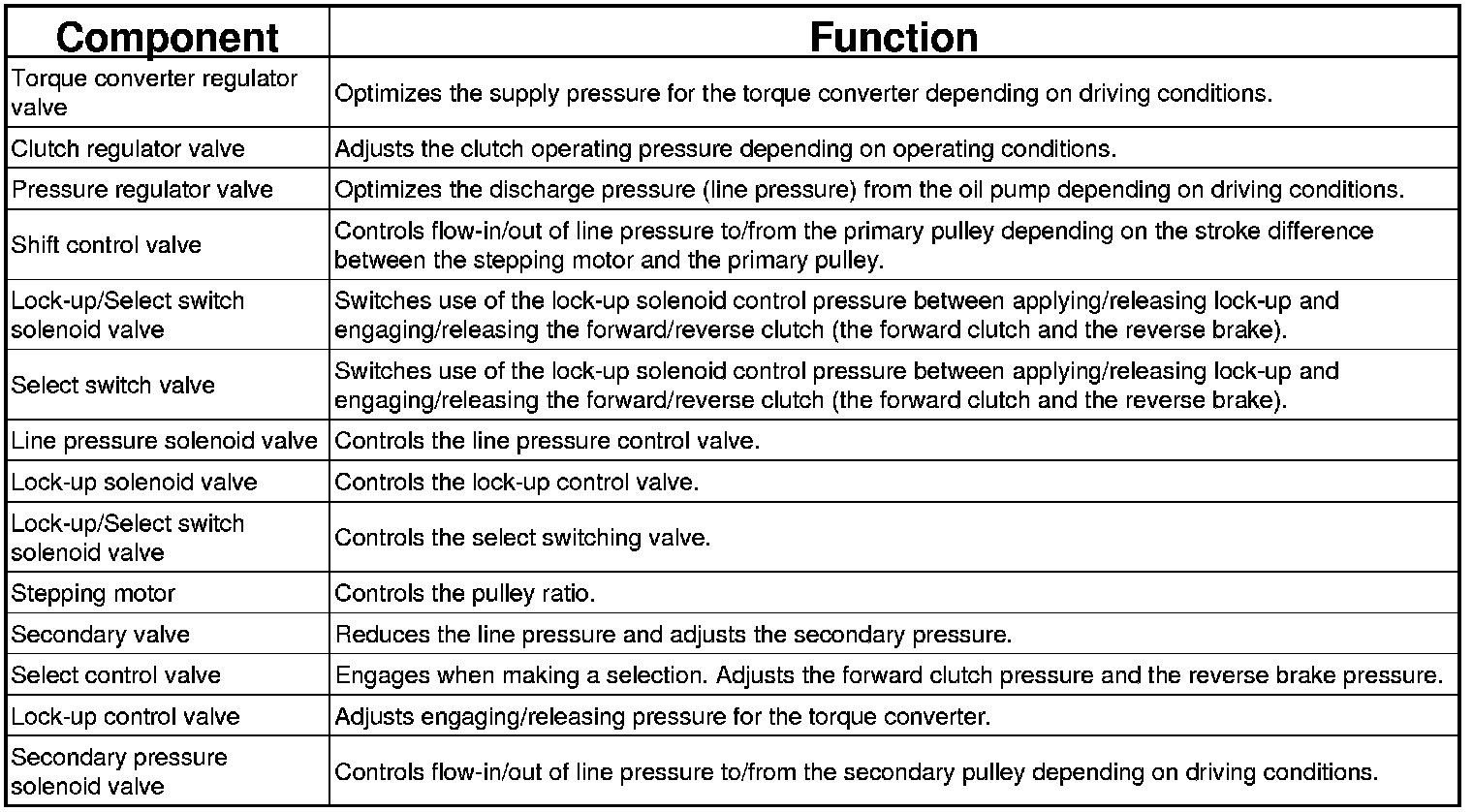

Outline of the Functions of the Main Components
