Home >> Kia >> 2000 >> Sephia LS Sedan L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Condenser Fan

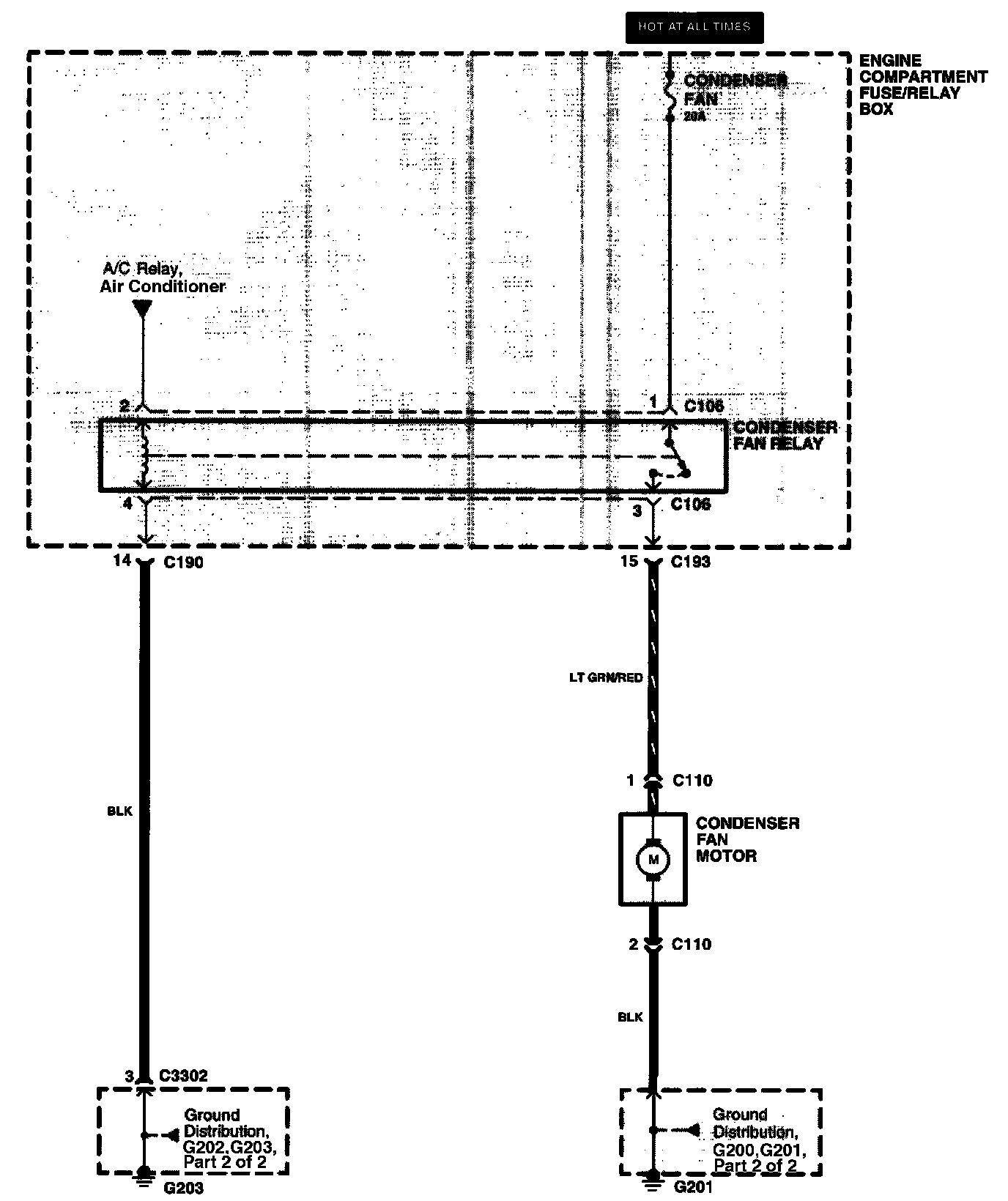

Condenser Fan

Part 2 Of 2:
