Manual Transmission/Transaxle: Description and Operation

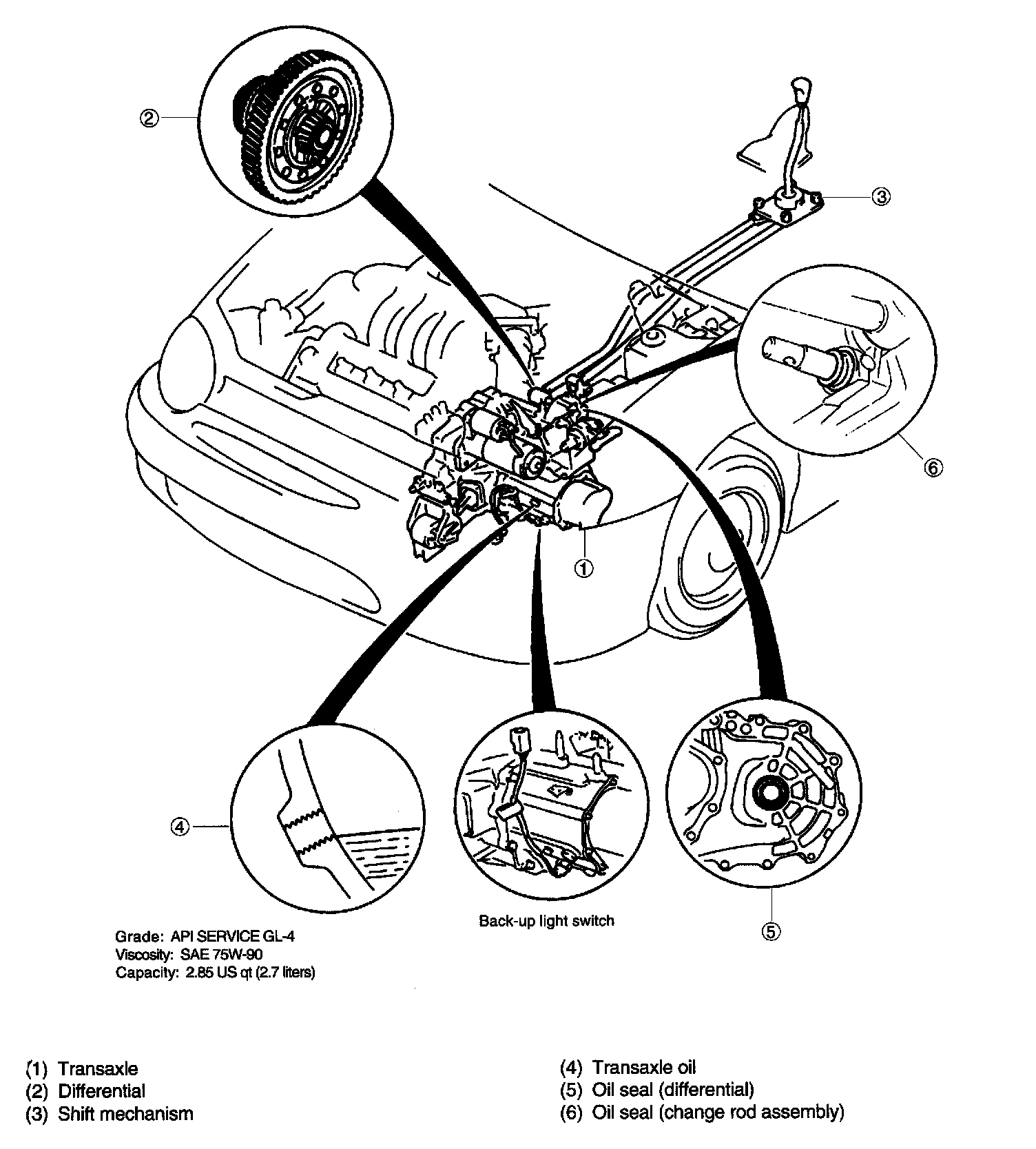

STRUCTURAL VIEW





CROSS-SECTIONAL VIEW

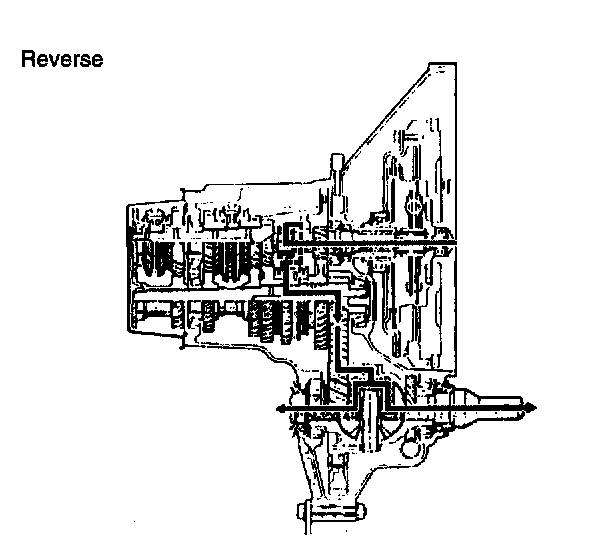

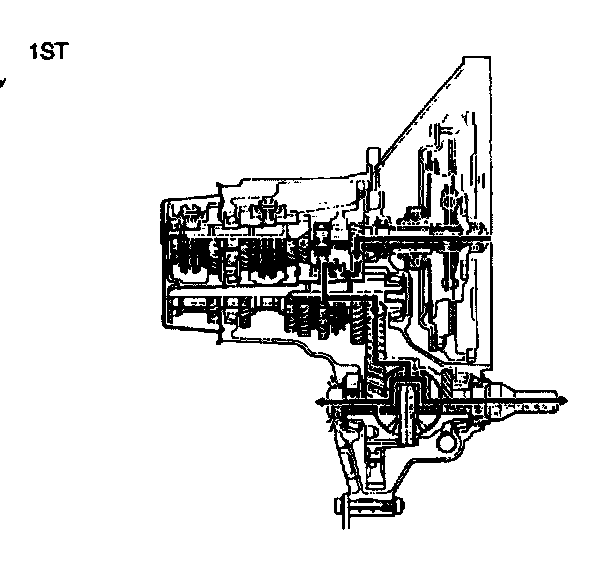

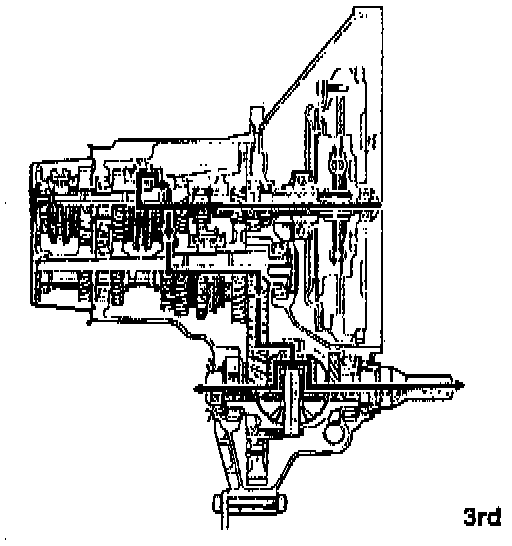

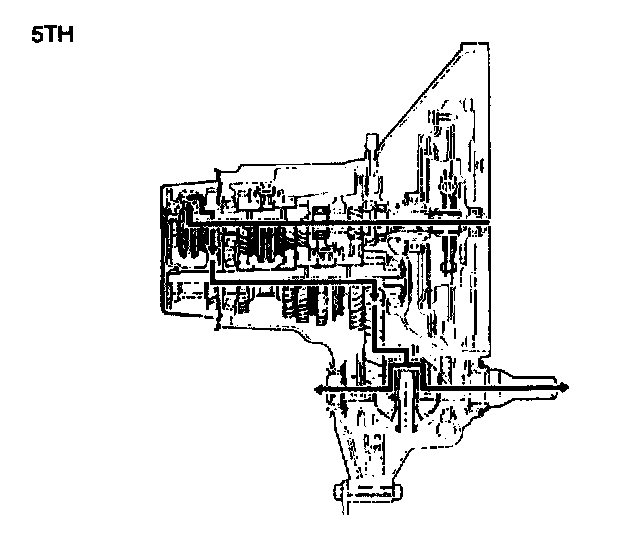

POWER FLOW
