Timing Belt: Diagrams

TIMING BELT ALIGNMENT MARKS





Camshaft Sprockets

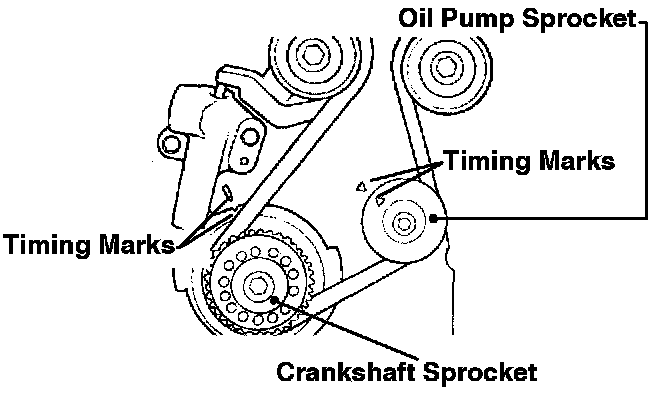

Crankshaft and Oil Pump Sprockets

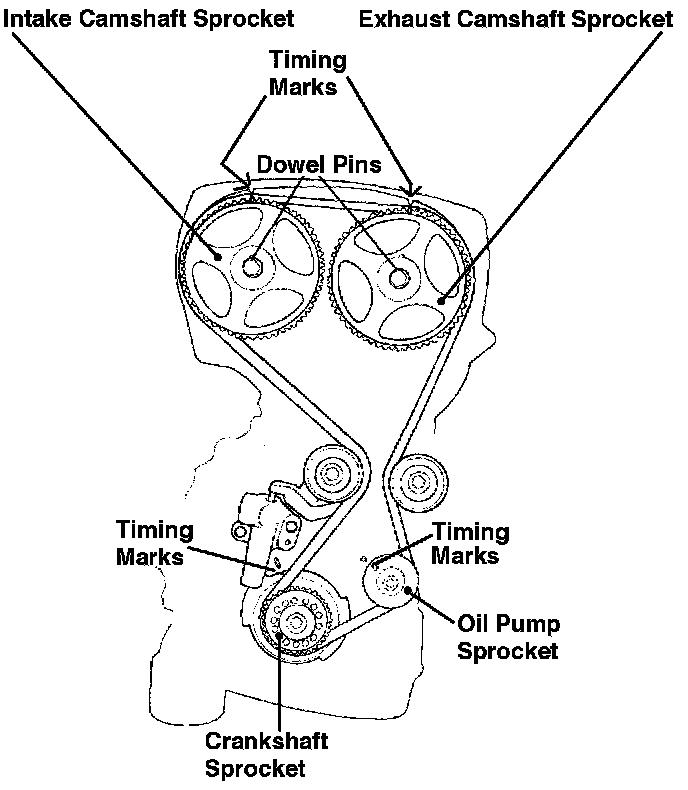

Full Belt Diagram
