Condenser Fan: Service and Repair

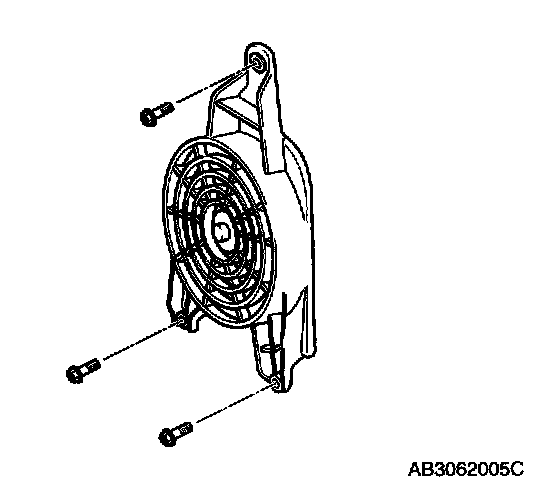

Condenser fan

Removal
1. Disconnect condenser fan connector.

2. Remove bolts and remove condenser fan.

Installation
Install in reverse order of removal.
