Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2003
>>
Rio RXV (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
Control Assembly, HVAC

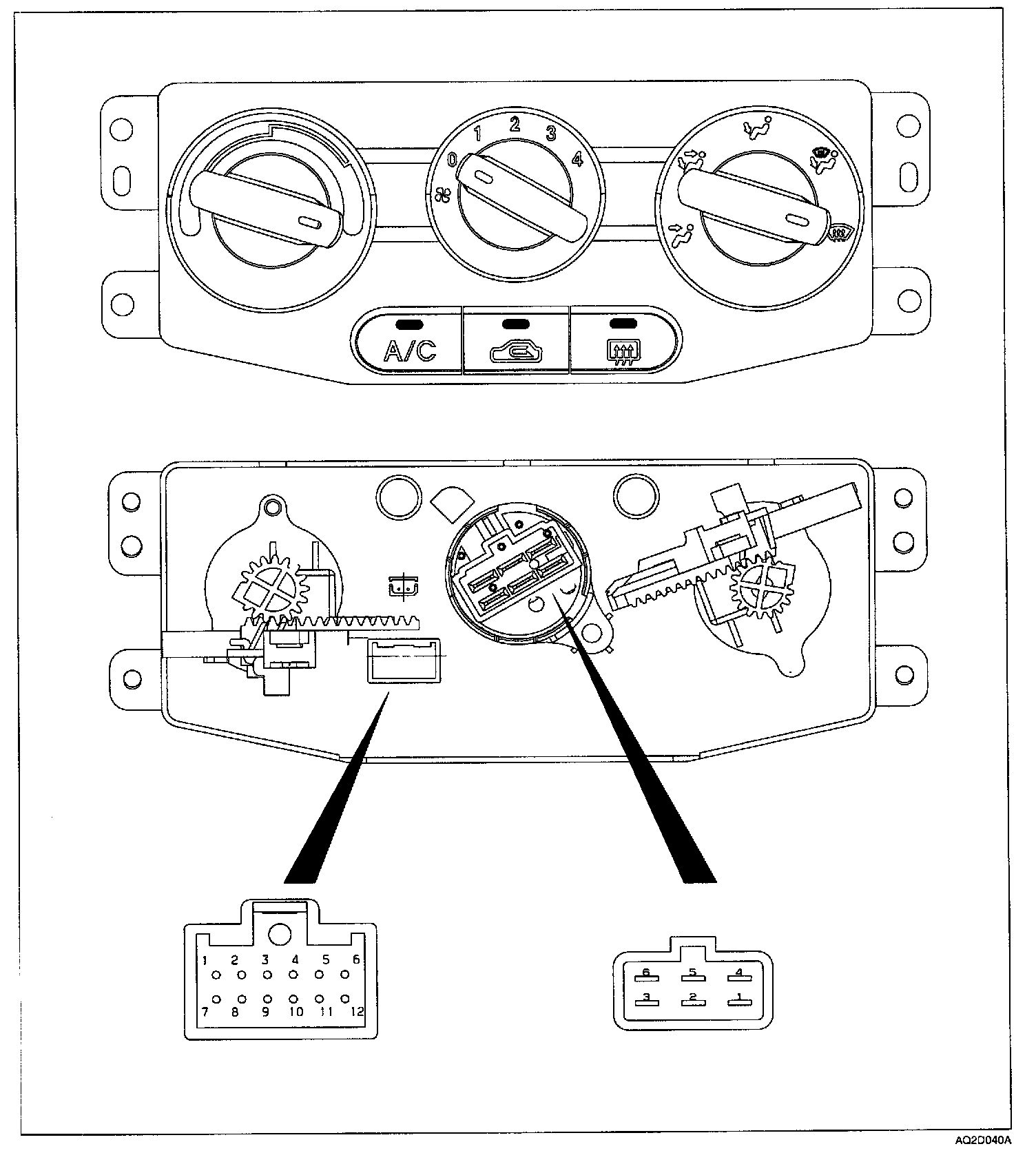

Control Panel:

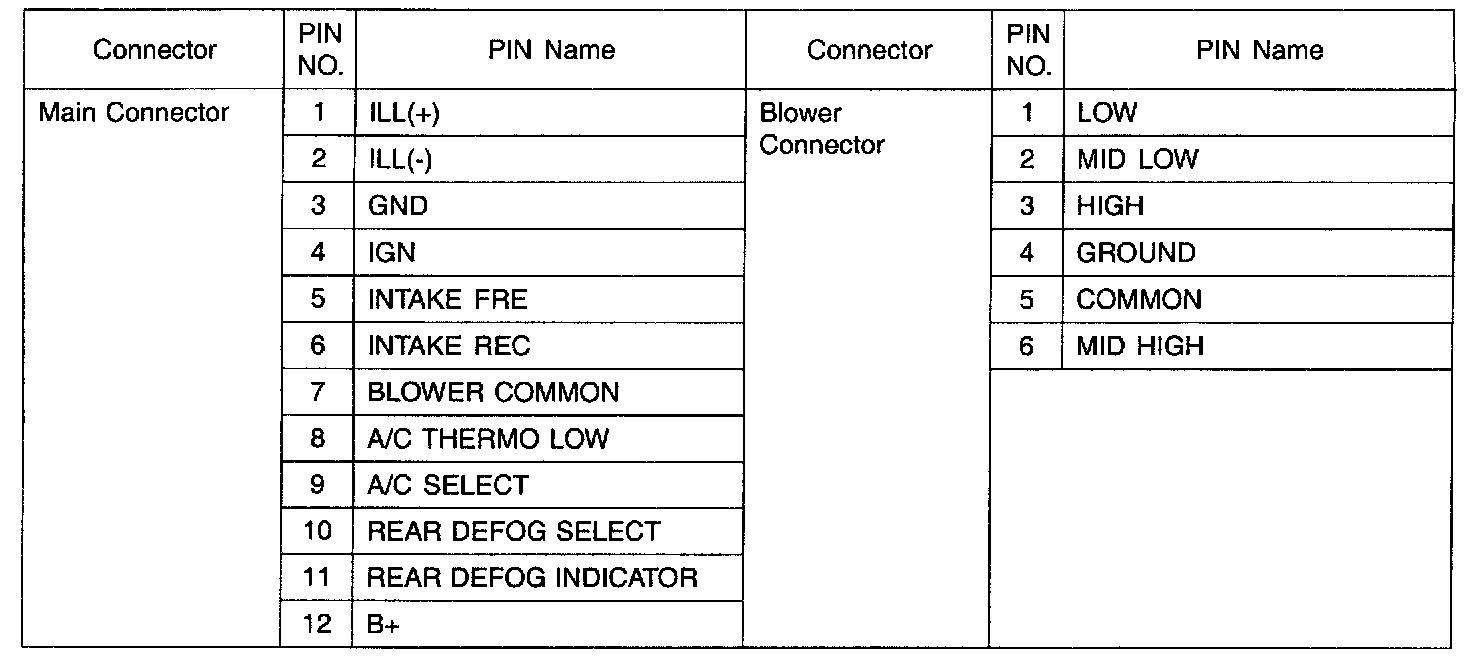

Connector Pin Description:
