Home >> Kia >> 2004 >> Amanti V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Common Connector >> X-48 - X-54

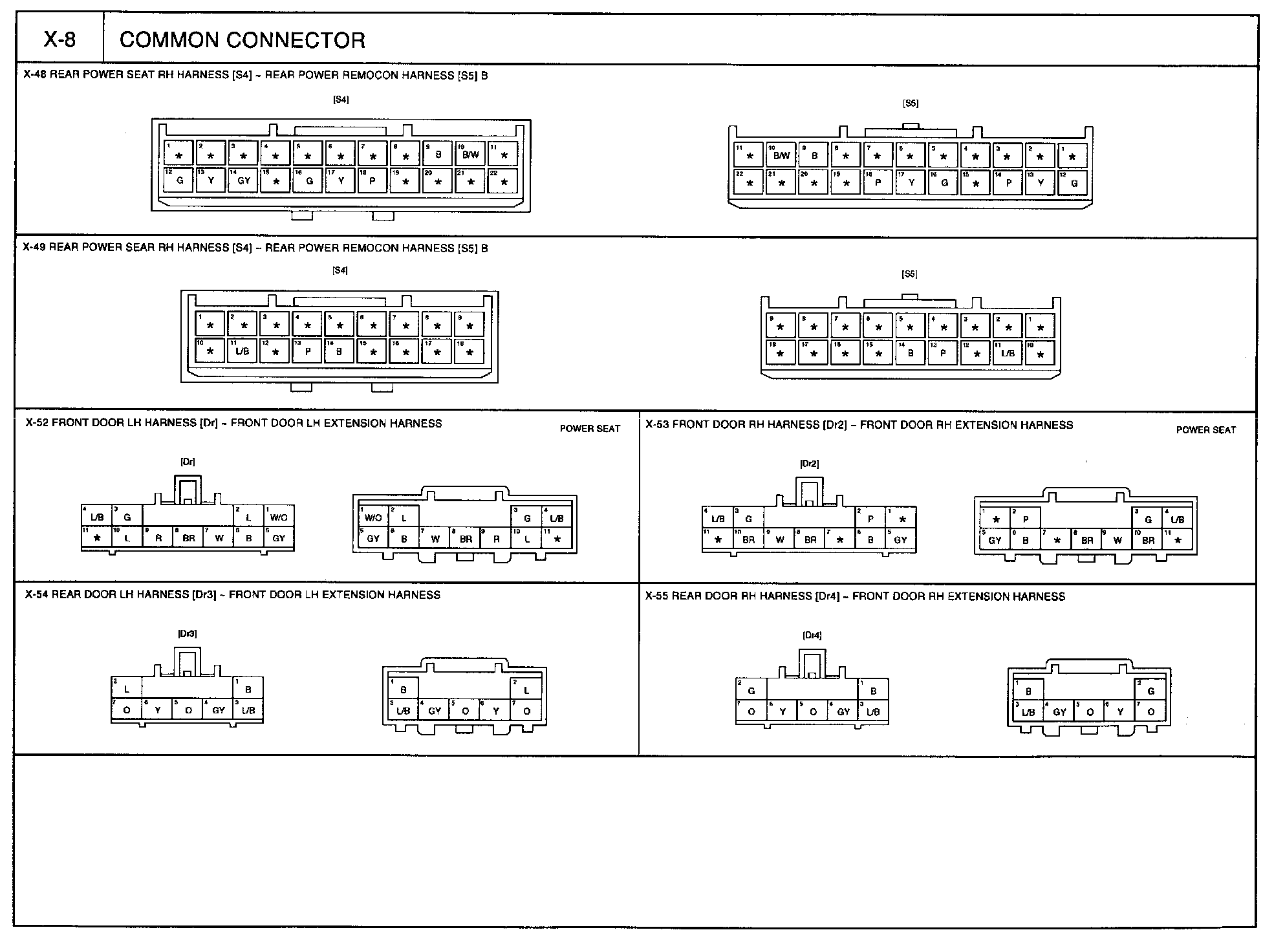

X-48 - X-54

X-48 - X-54:
