Information Bus

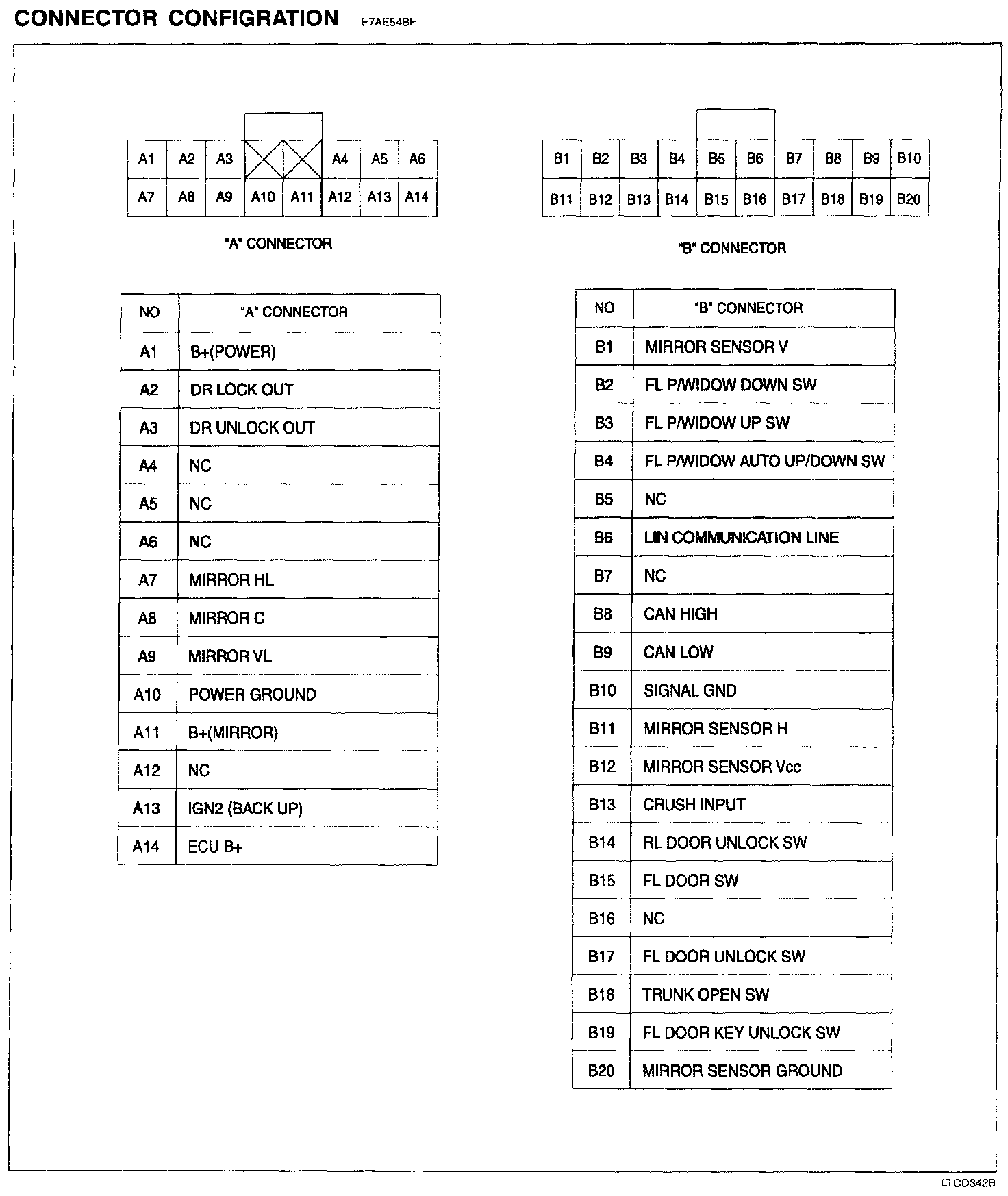

Driver Door Module - Connector Configuration:

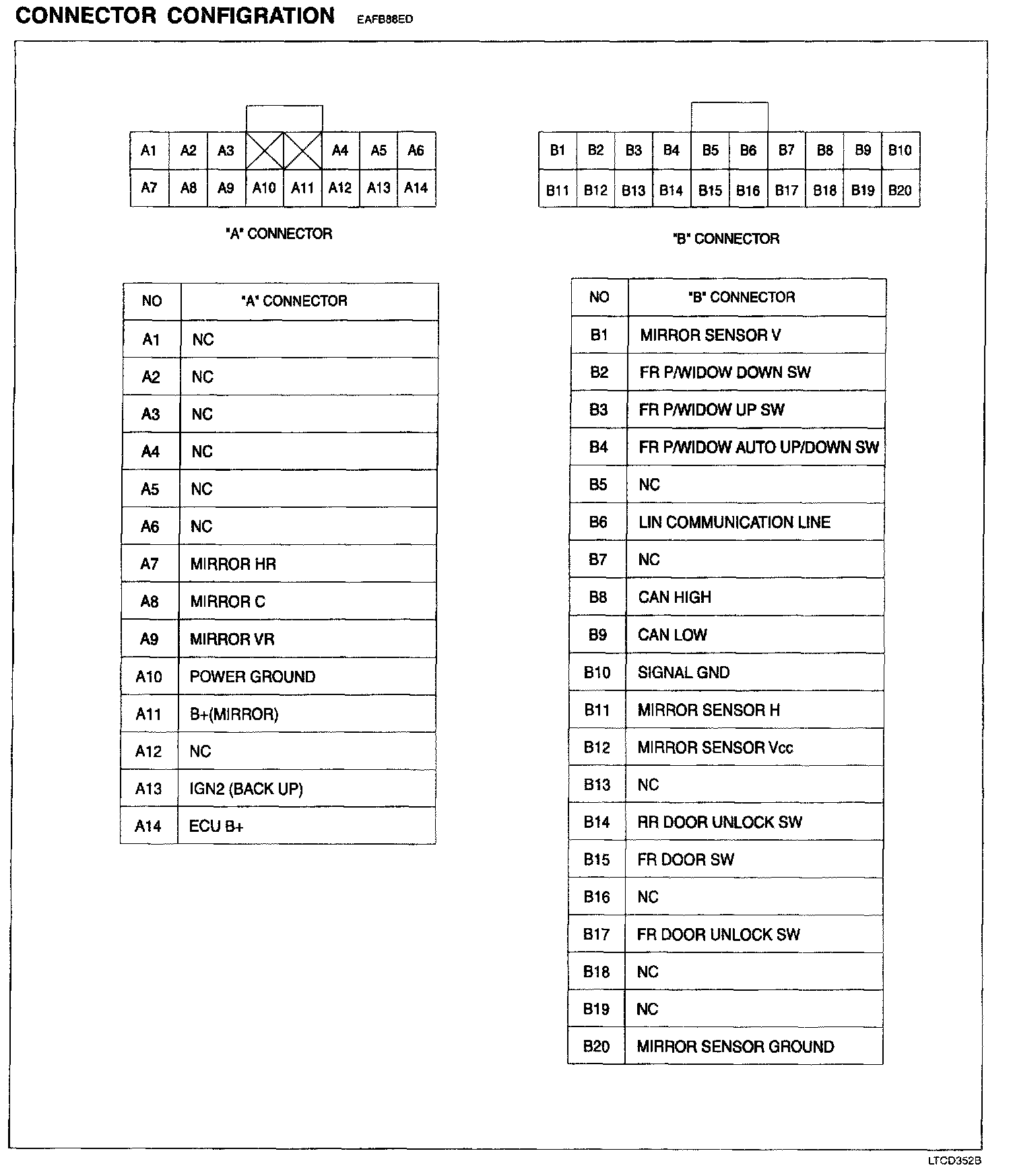

Assist Door Module - Connector Configuration:
