Cruise Control
>>
Cruise Control Switch
Cruise Control Switch

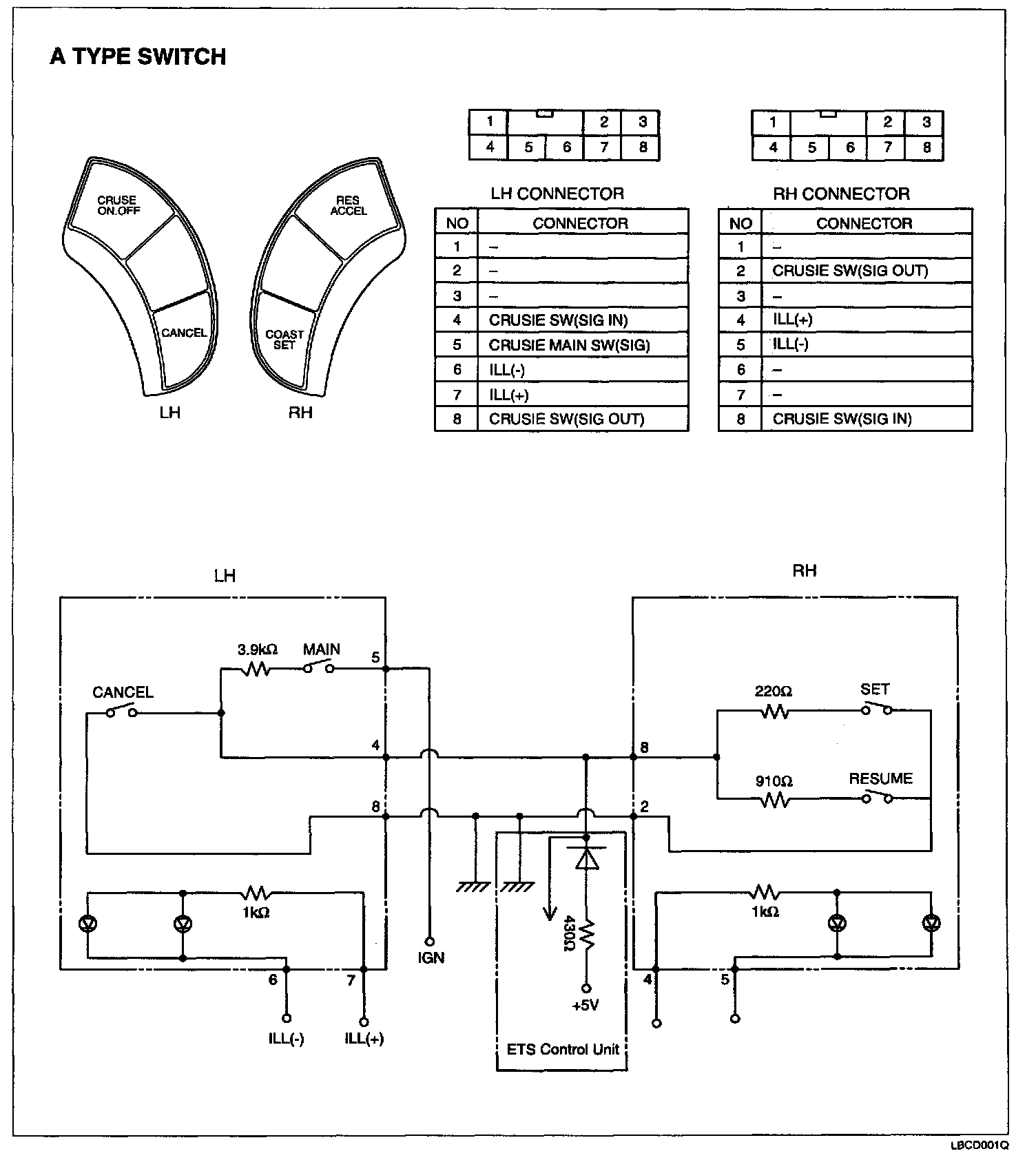

Cruise Control Main Switch - Circuit Diagram Part 1:
Cruise Control Main Switch - Circuit Diagram Part 2:
