Home >> Kia >> 2004 >> Amanti V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram P-1a

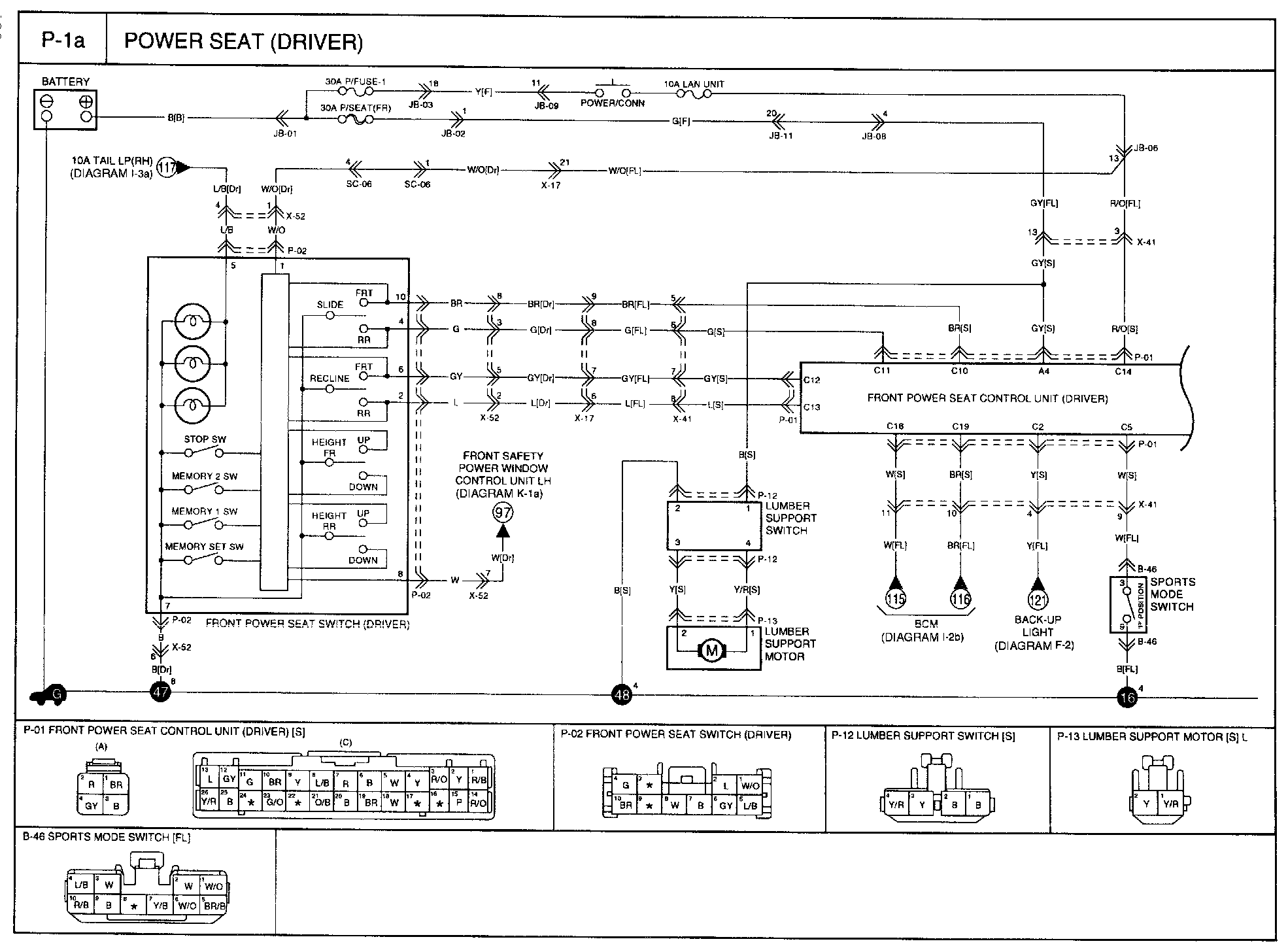

Diagram P-1a

Diagram P-1a:
