Amplifier, Sound System

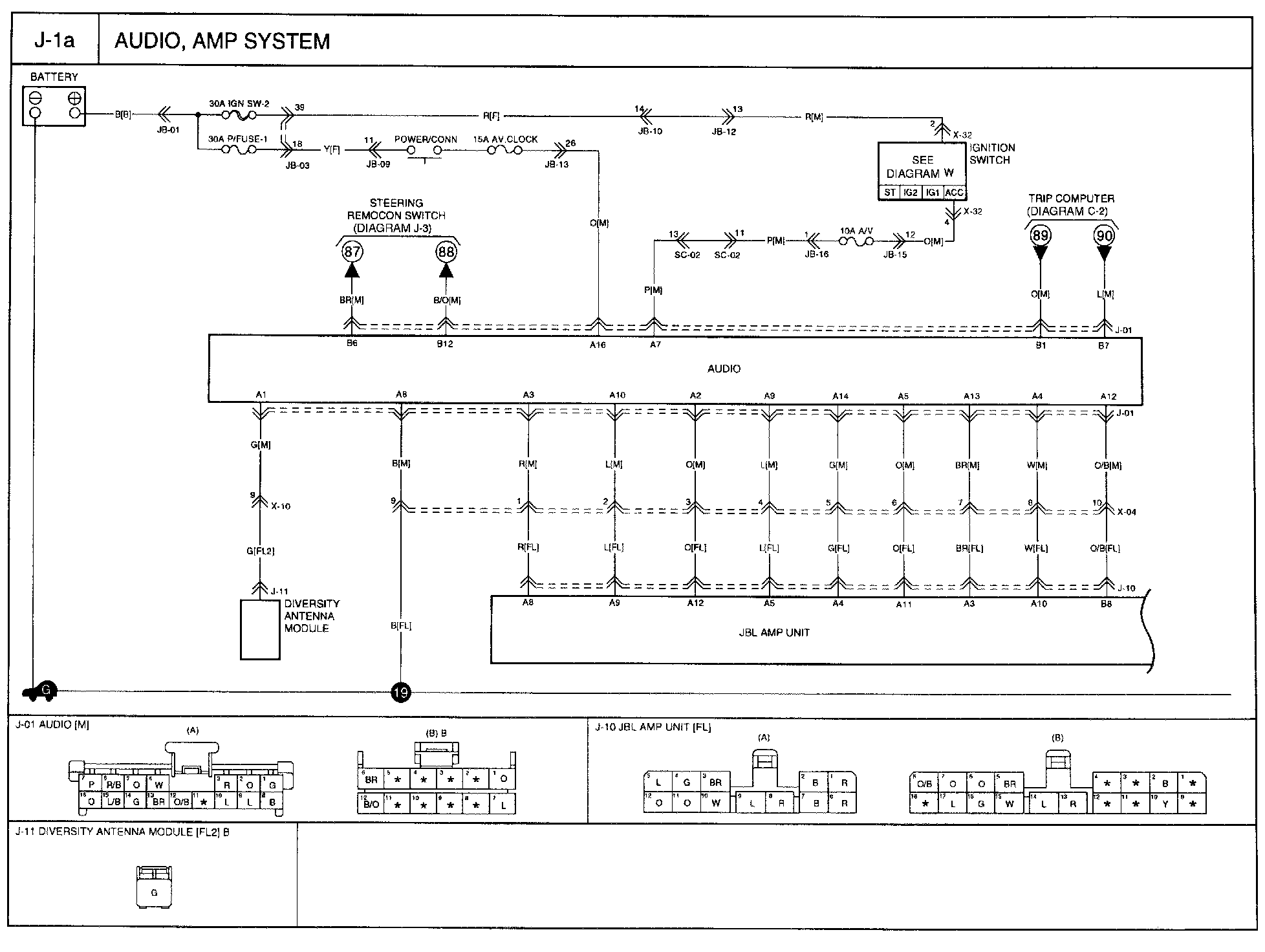

Diagram J-1a:

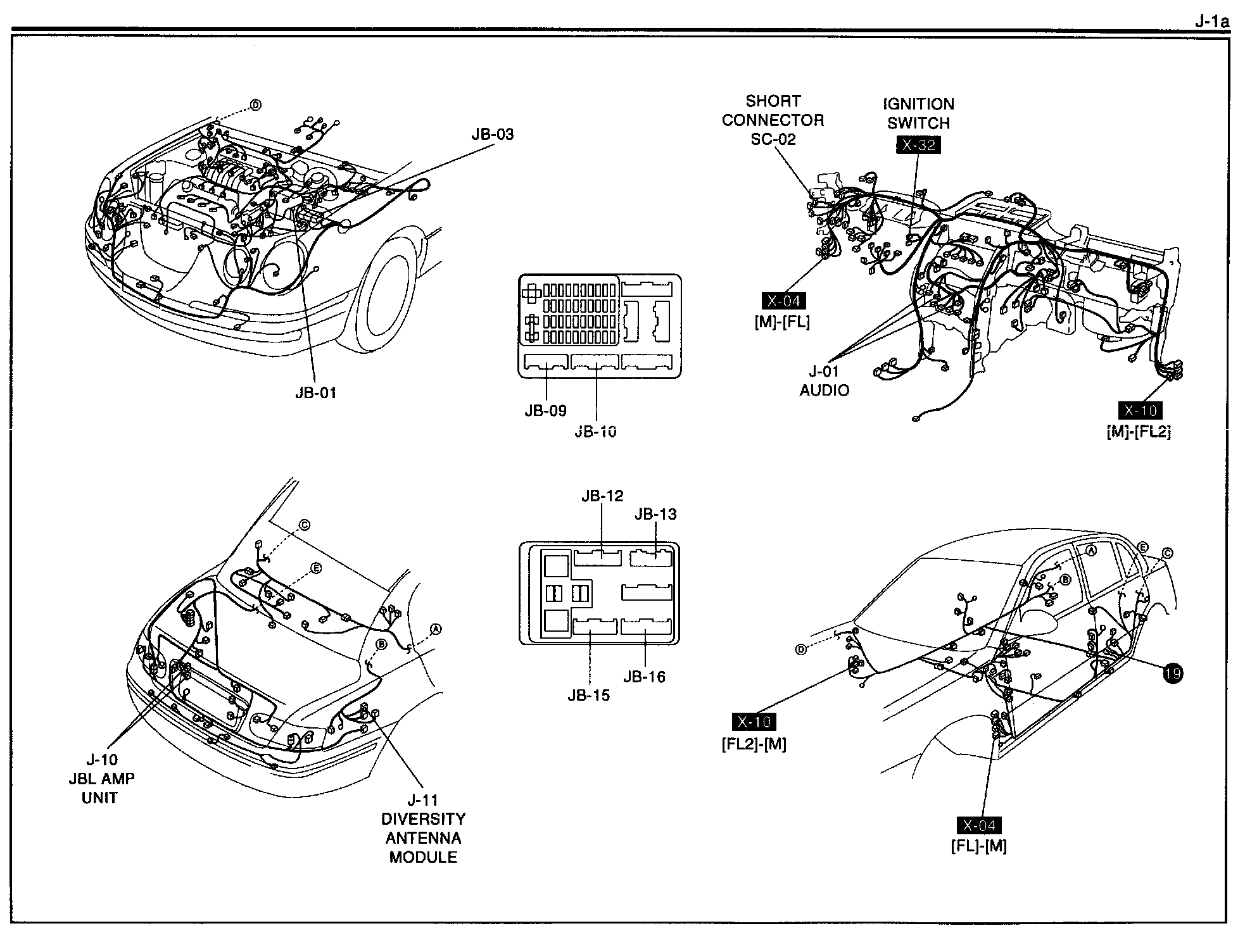

Routing View J-1a:

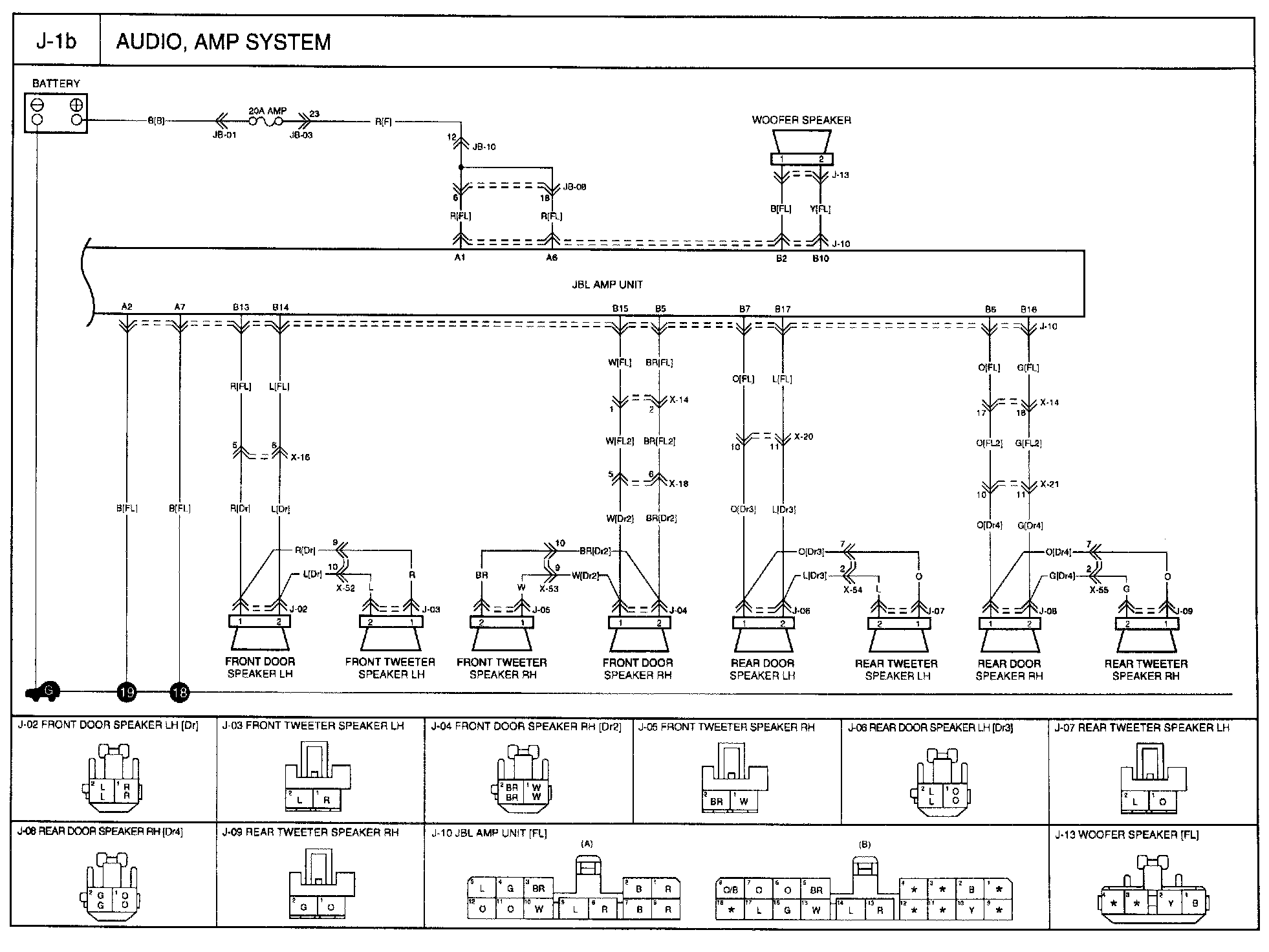

Diagram J-1b:
Routing View J-1b:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
