Home >> Kia >> 2004 >> Amanti V6-3.5L >> Repair and Diagnosis >> Lighting and Horns >> Dimmer Switch >> Locations

Dimmer Switch: Locations

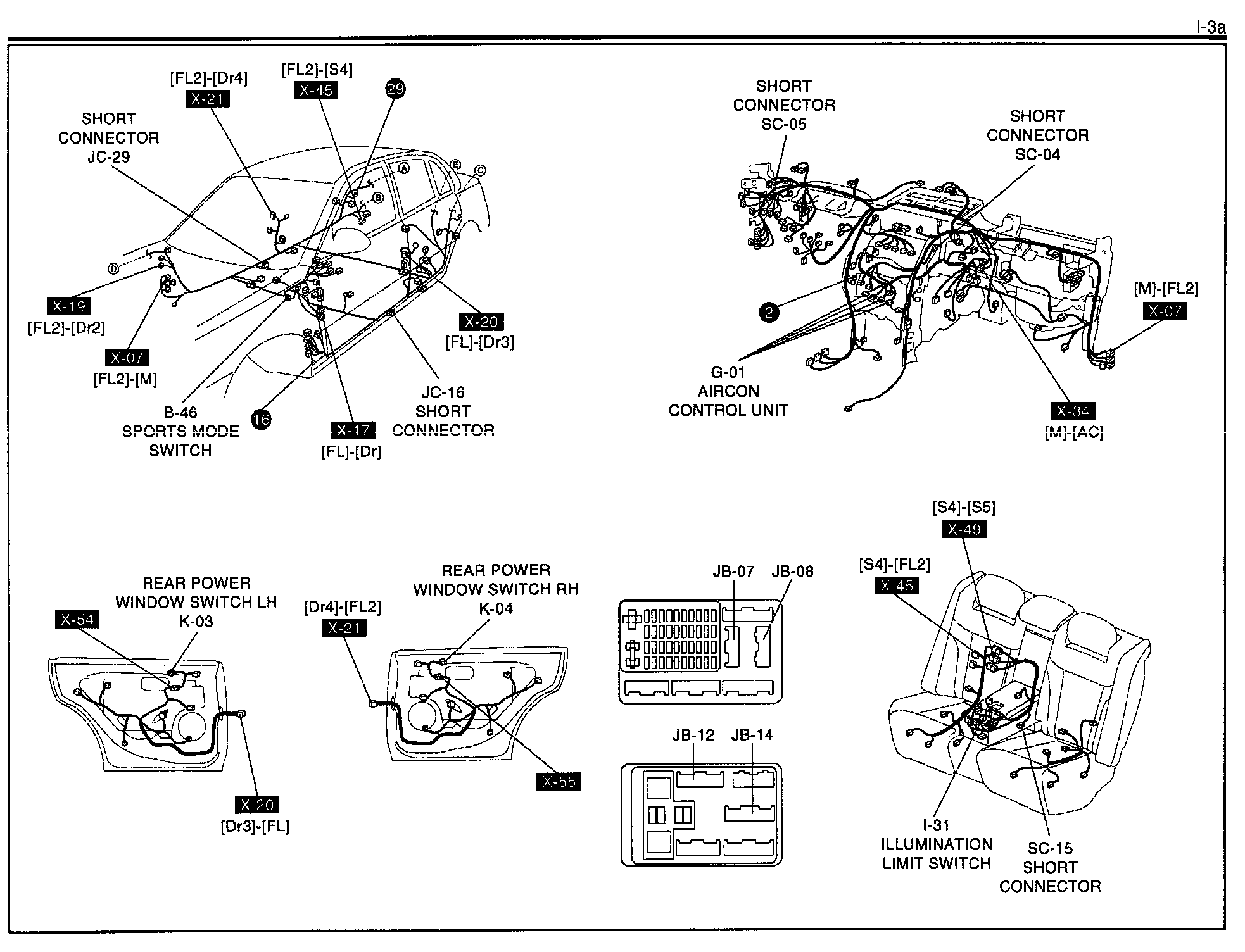

Routing View I-3a:



Routing View K-1a:



Routing View K-1b:
