System Specifications

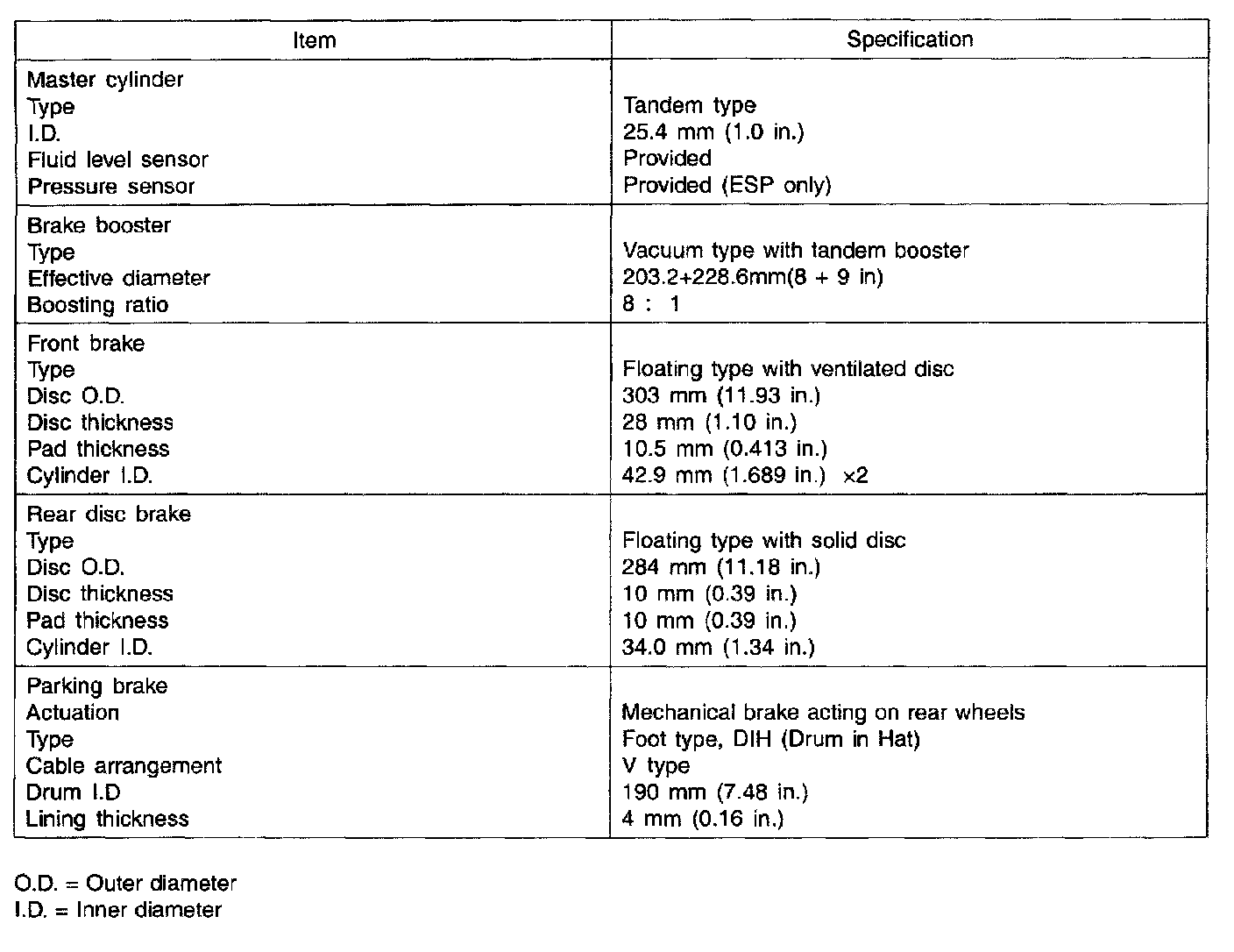

SPECIFICATIONS (BRAKE)

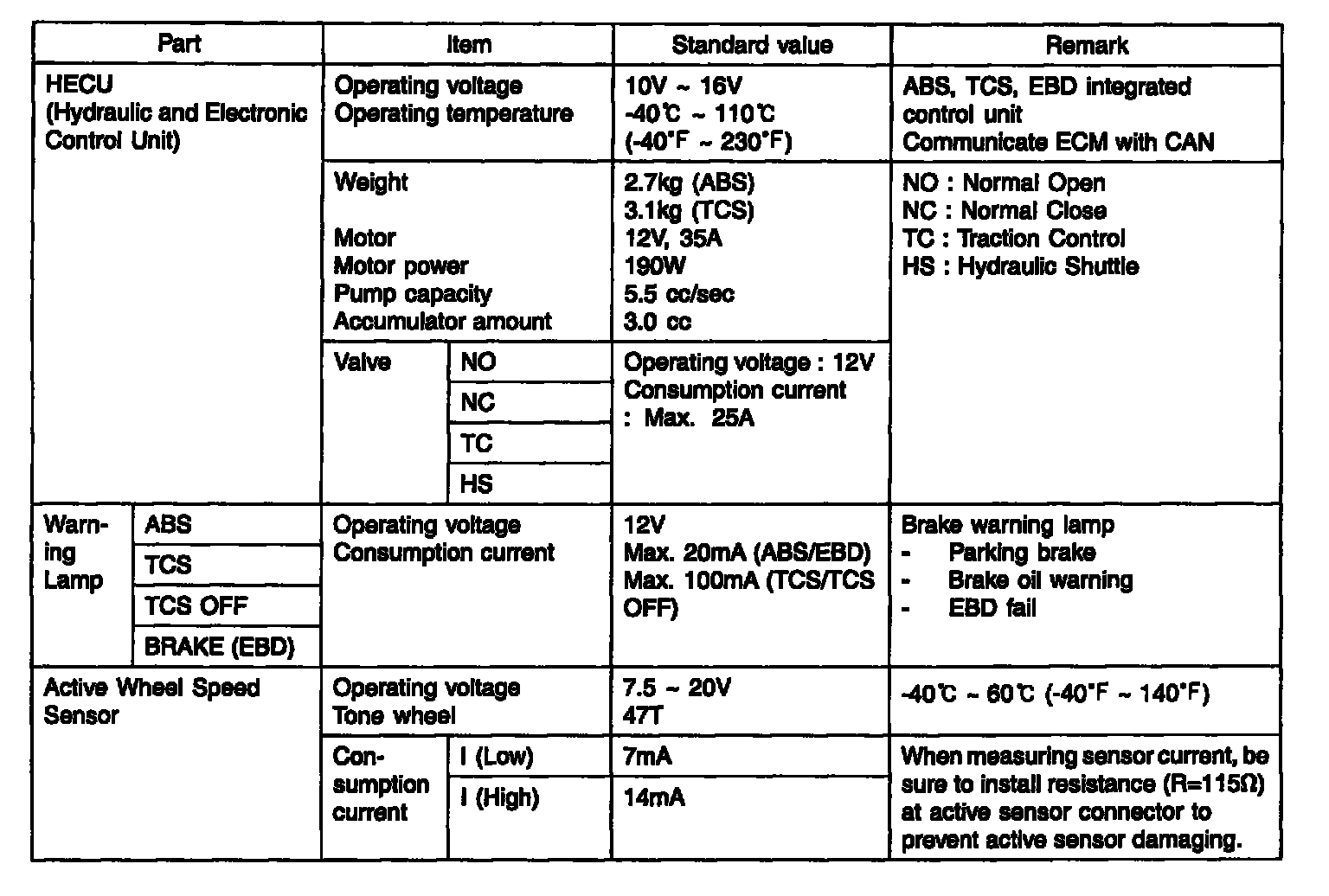

SPECIFICATIONS (ABS&TCS)

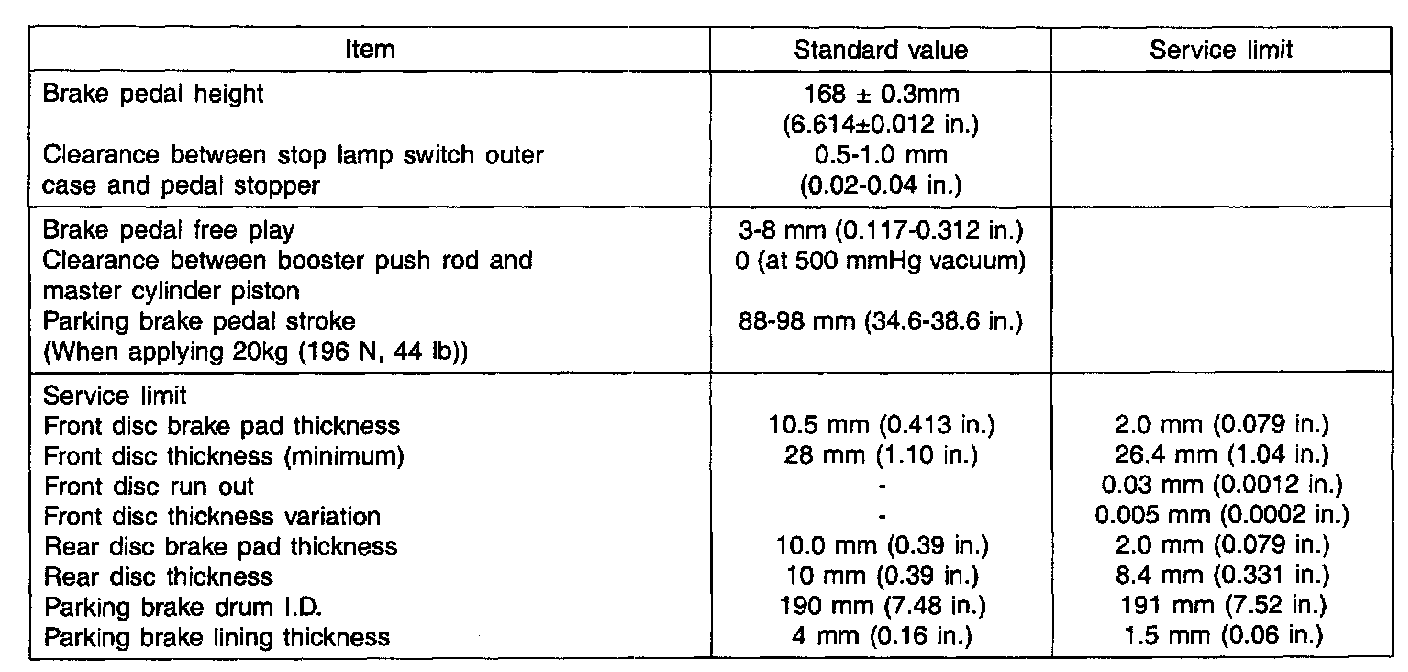

SERVICE STANDARD





TIGHTENING TORQUE (ABS&TCS)

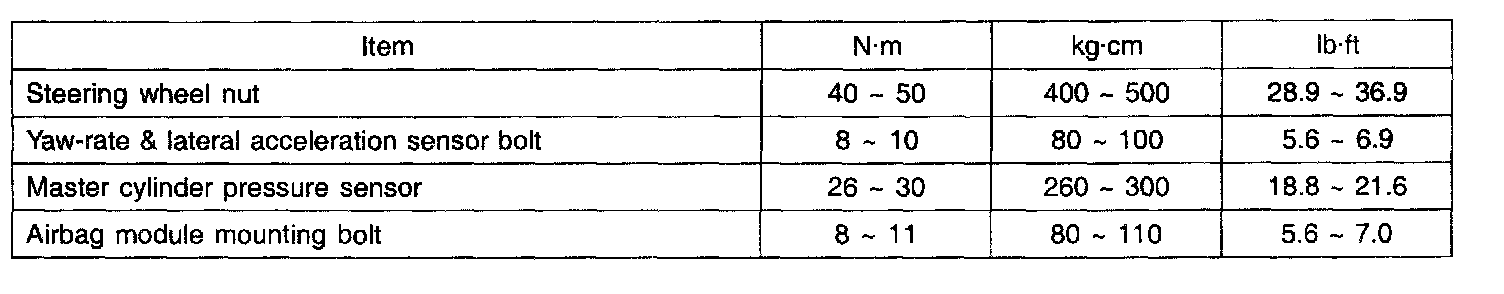

TIGHTENING TORQUE (ESP)
