System Specifications

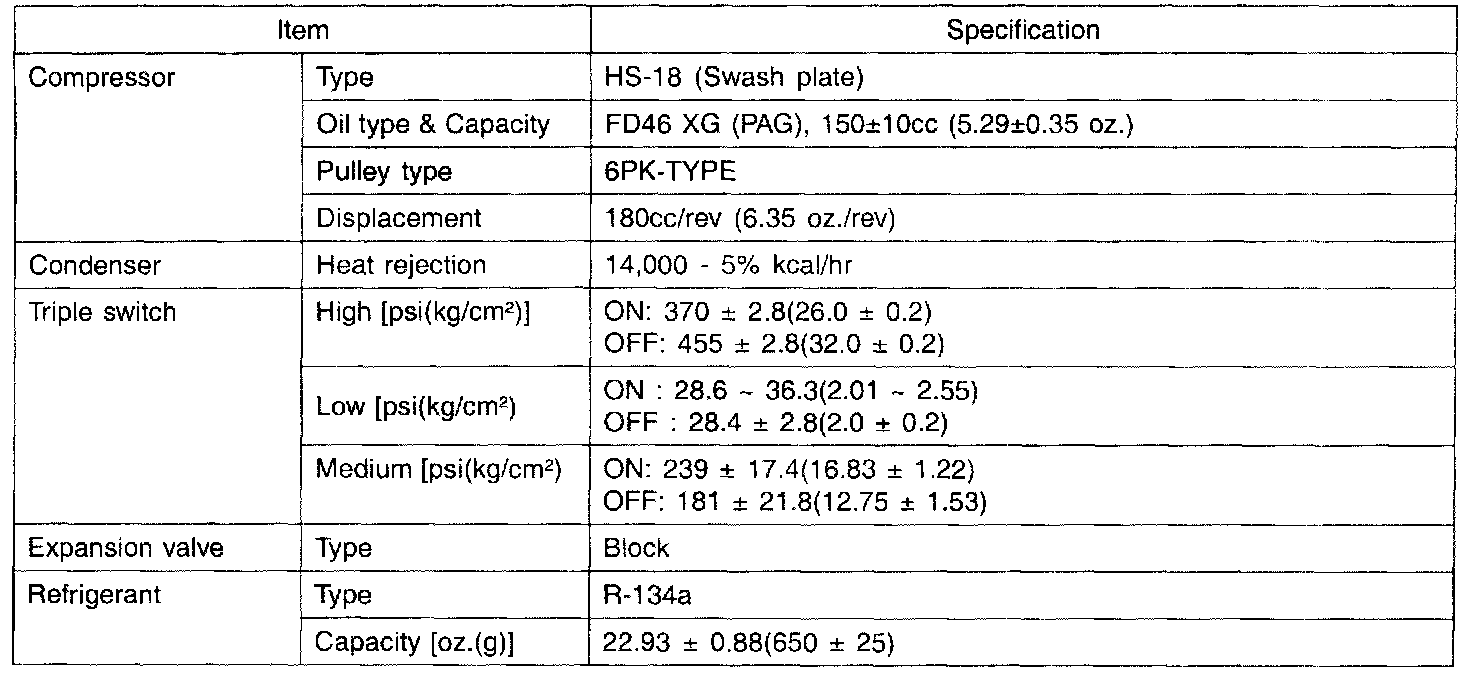

General Specification - Air Conditioner:



General Specification - Blower Unit:

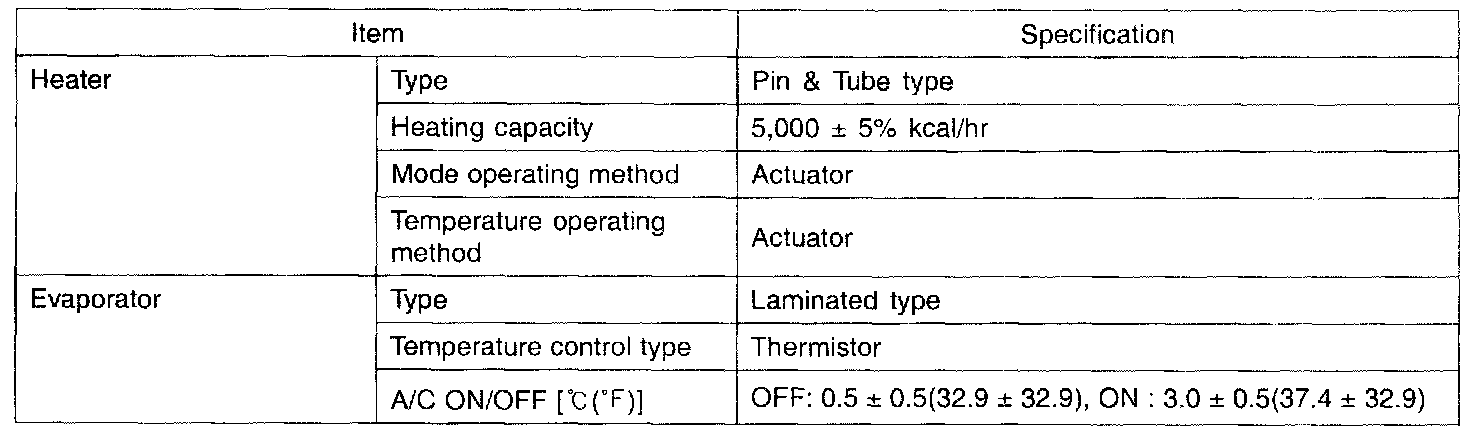

General Specification - Heater And Evaporator Unit:
