Fuse Block
>>
Application and ID
>>
Engine Compartment Fuse/Relay Box
Engine Compartment Fuse/Relay Box
Engine Compartment

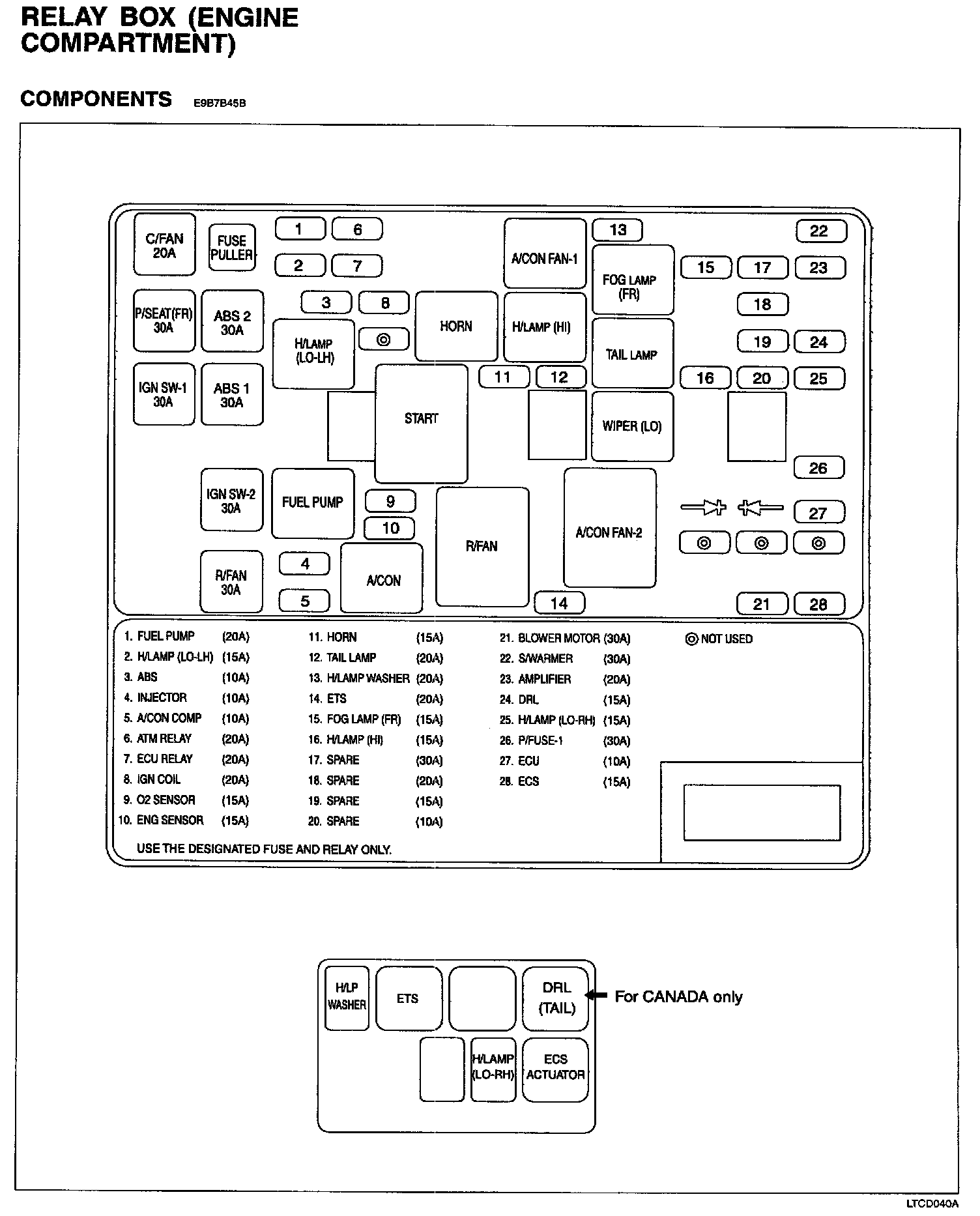

Fuses And Relays - Relay Box (ENGINE COMPARTMENT):
