Fluid Diagrams

HYDRAULIC PRESSURE CIRCUIT

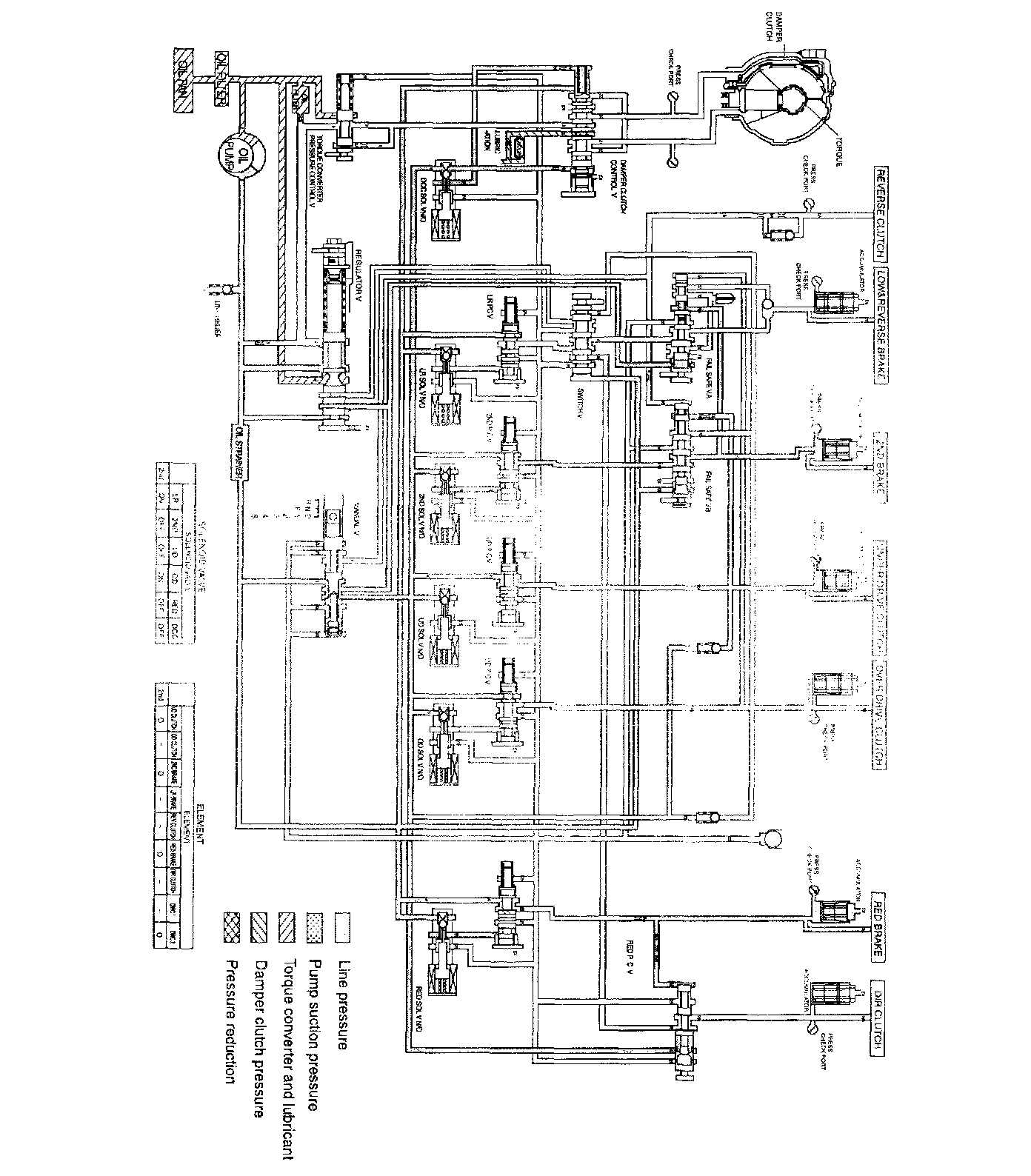

FIRST SPEED





SECOND SPEED

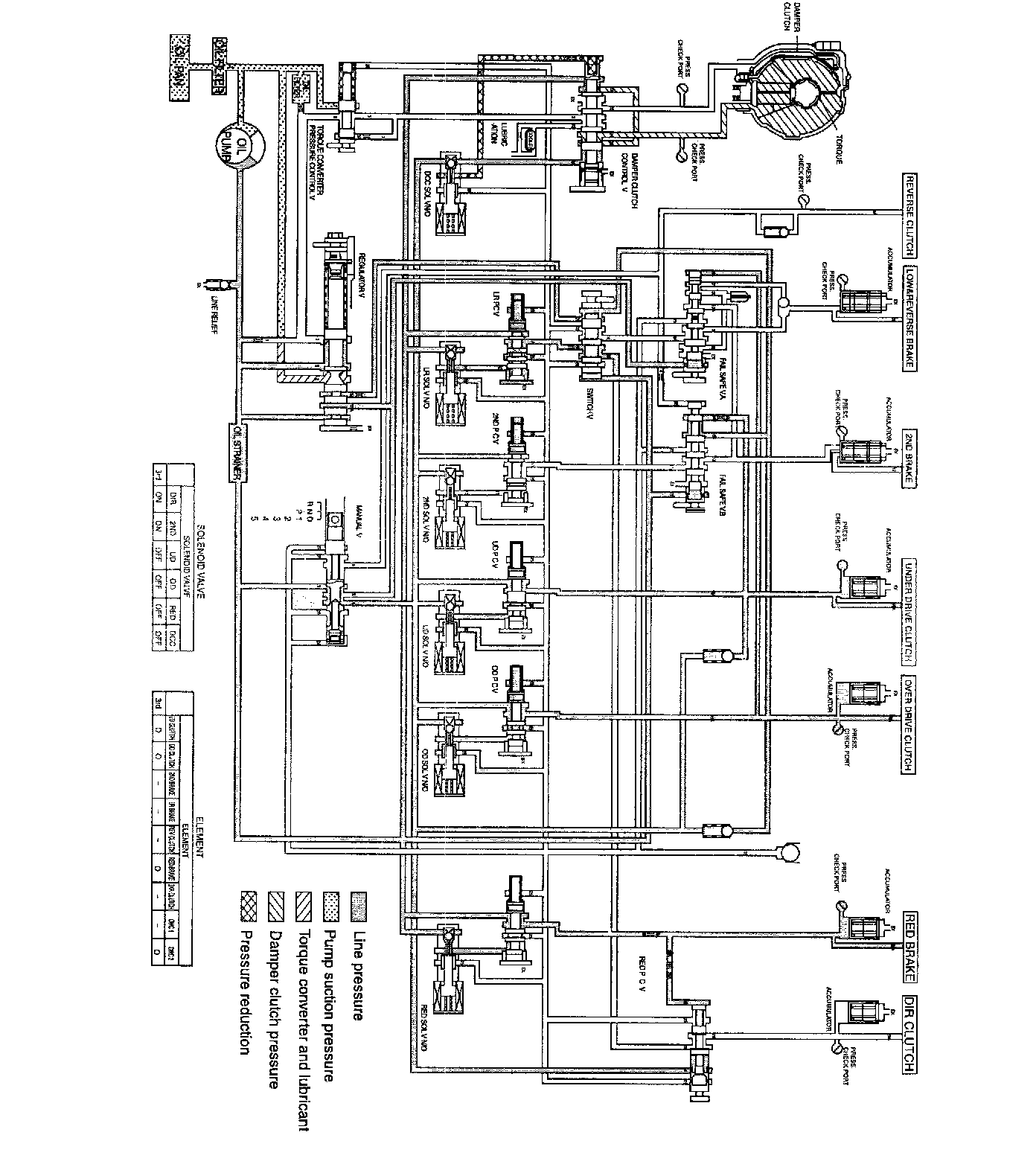

THIRD SPEED

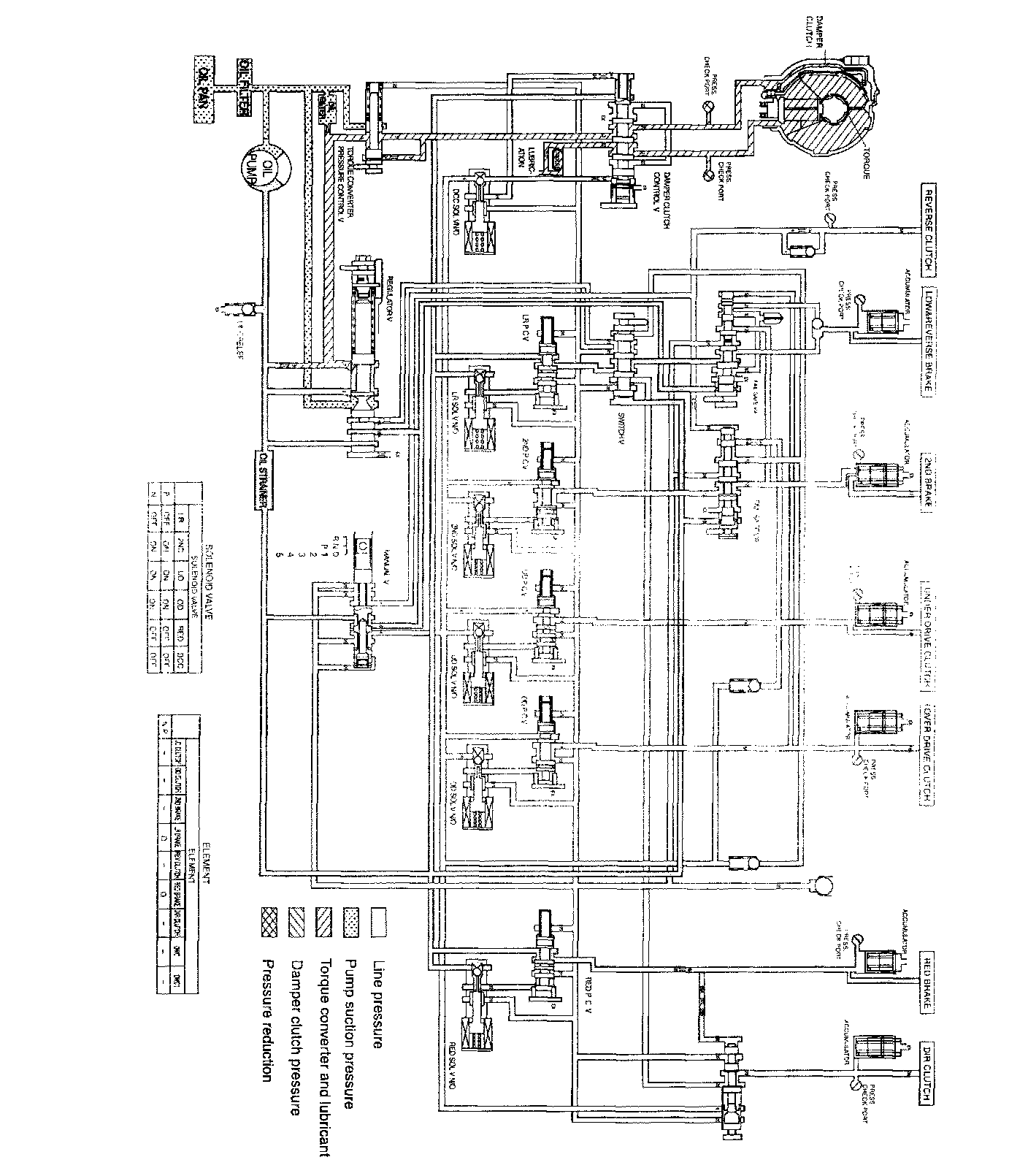

FOURTH SPEED

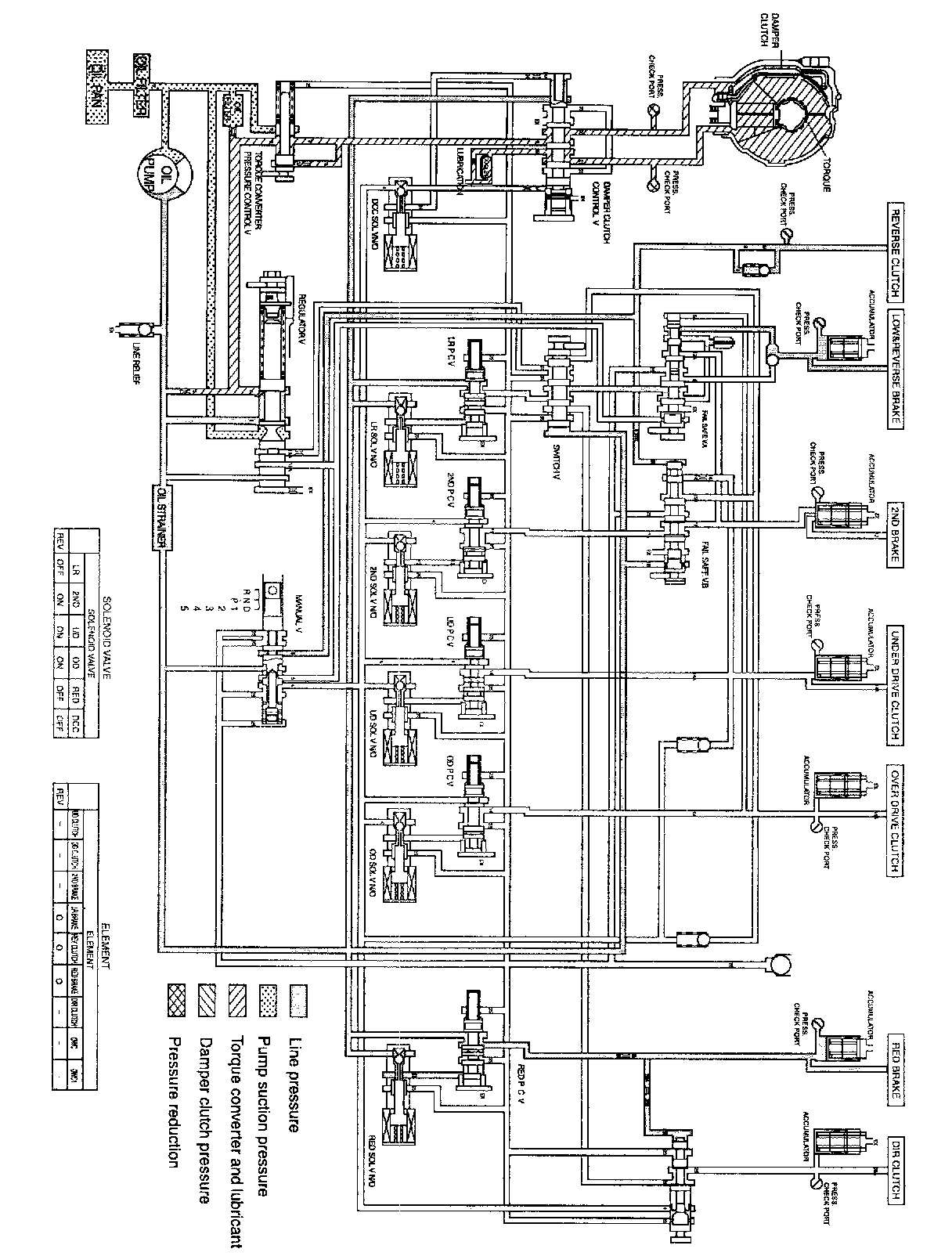

FIFTH SPEED





NEUTRAL AND PARKING





REVERSE
