Home >> Kia >> 2004 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram B-3d

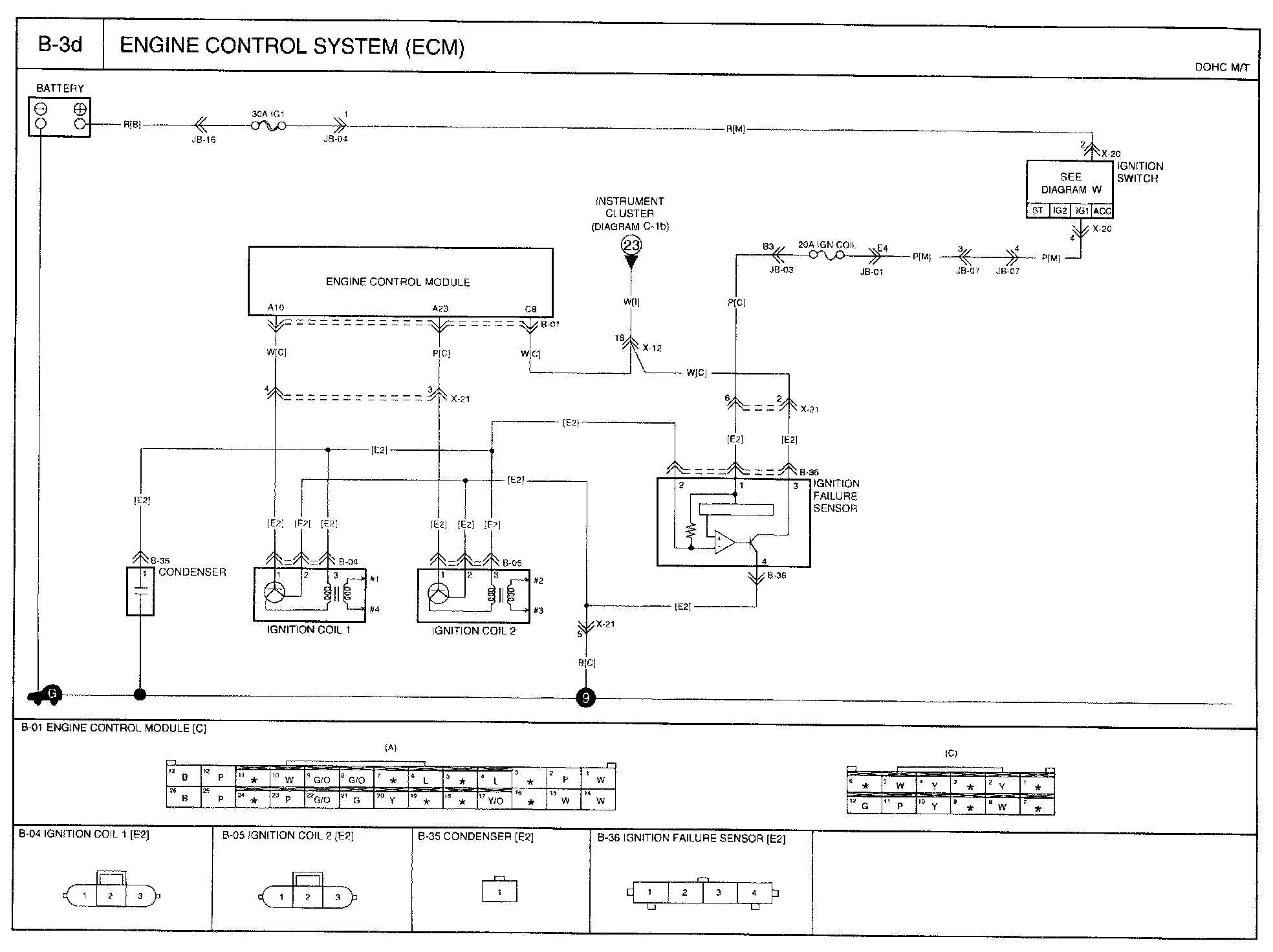

Diagram B-3d

Diagram B-3d:
