Automatic Transmission/Transaxle: Diagrams

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

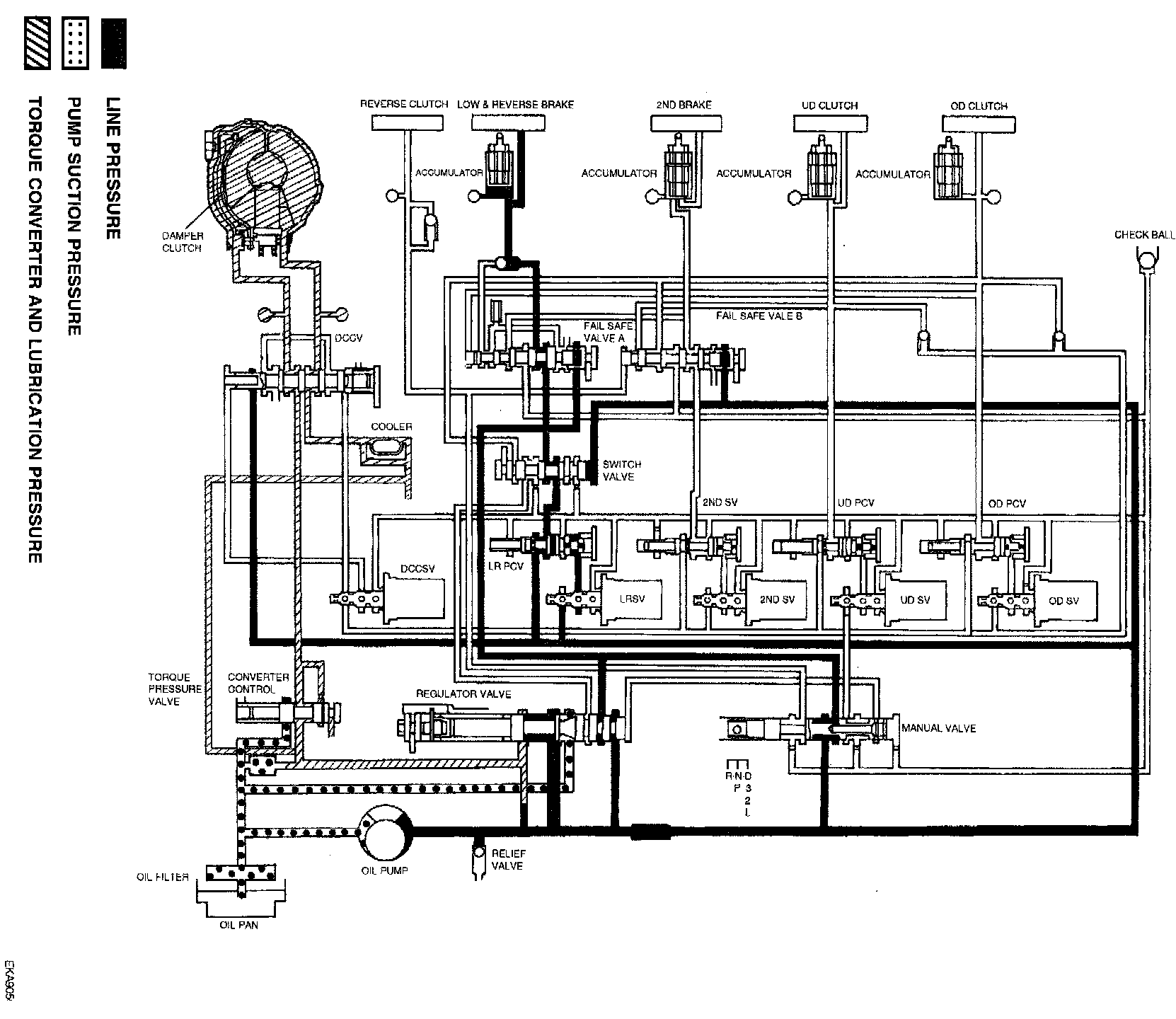

PARKING & NEUTRAL

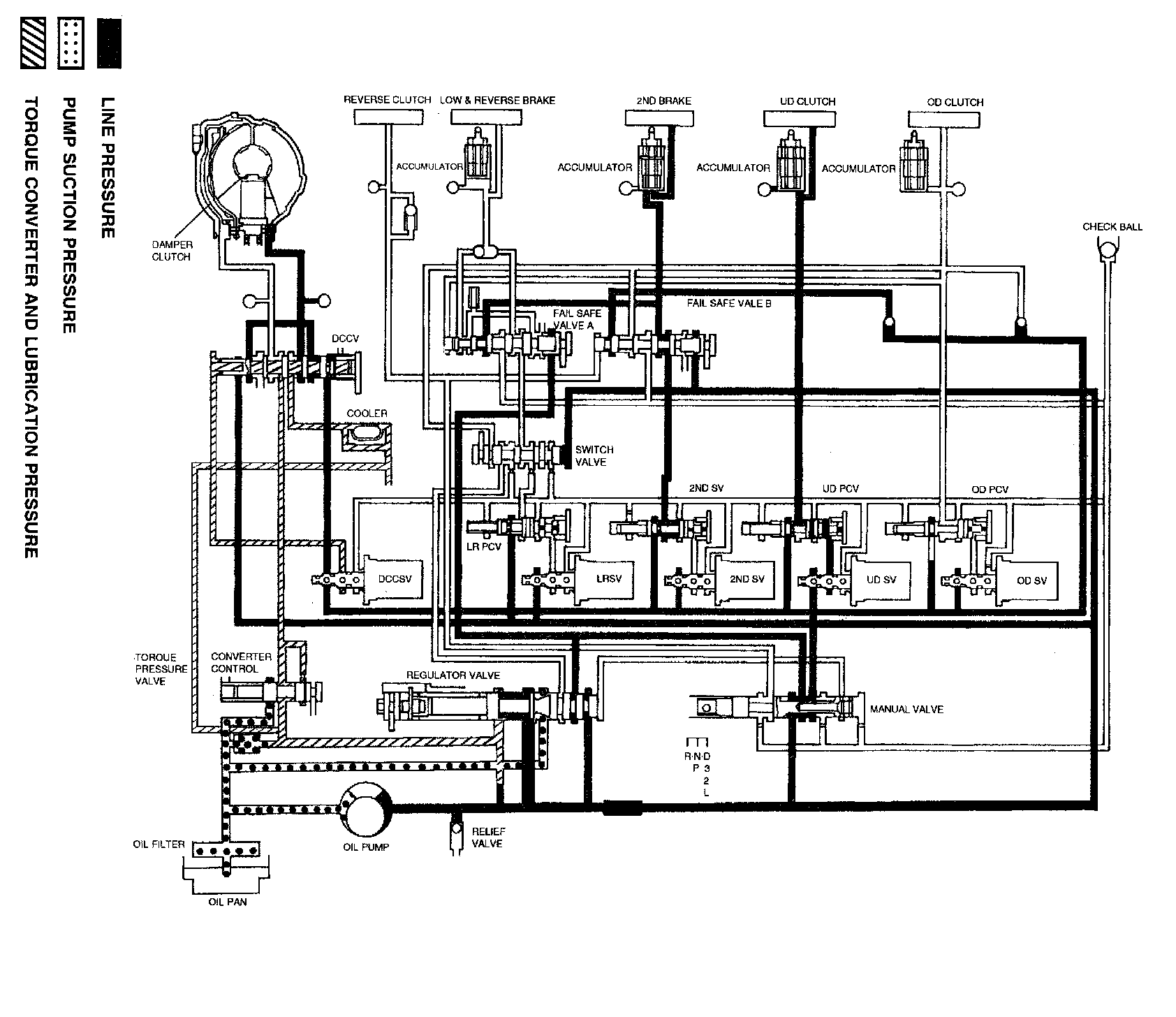

FIRST

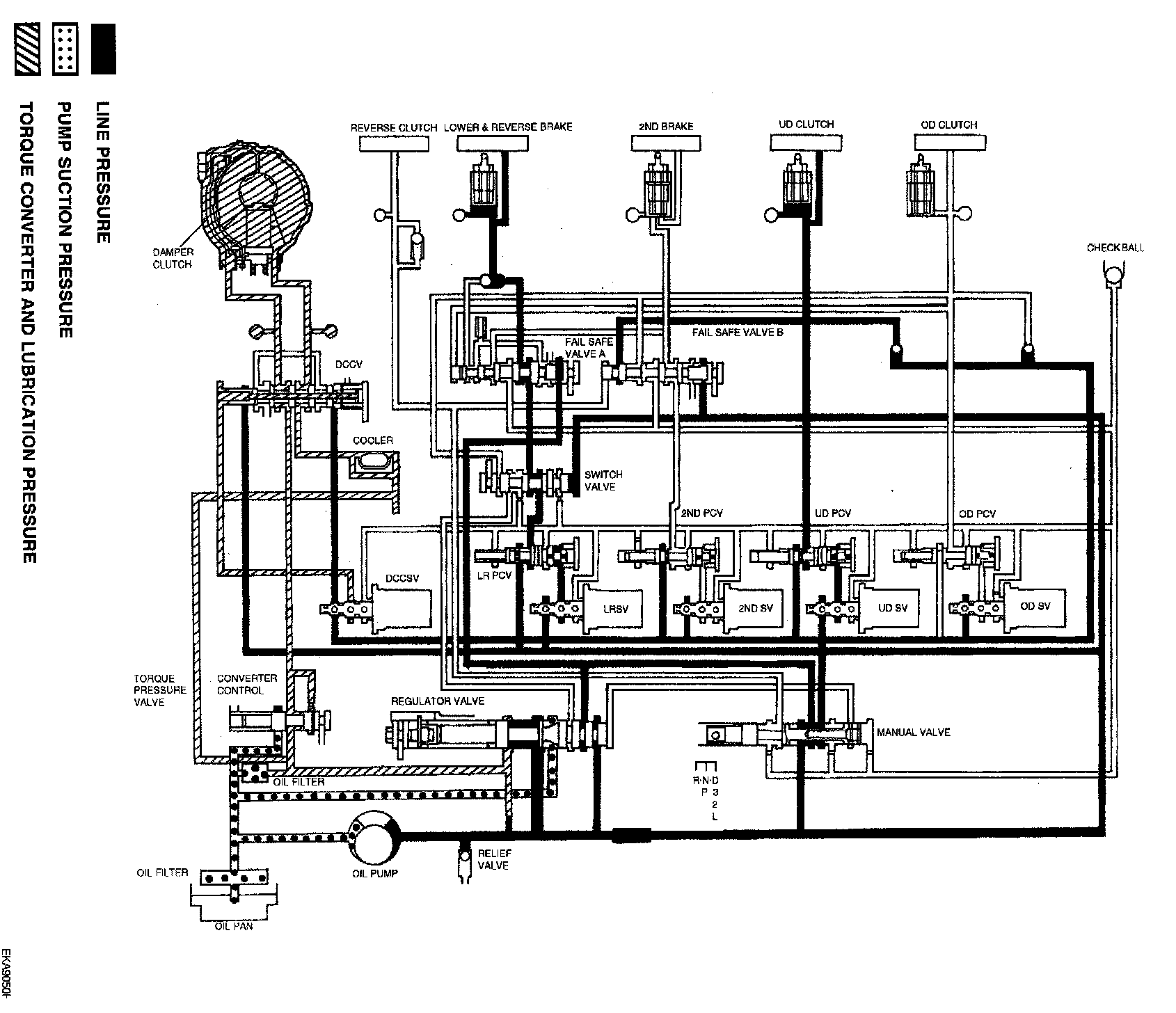

SECOND





THIRD

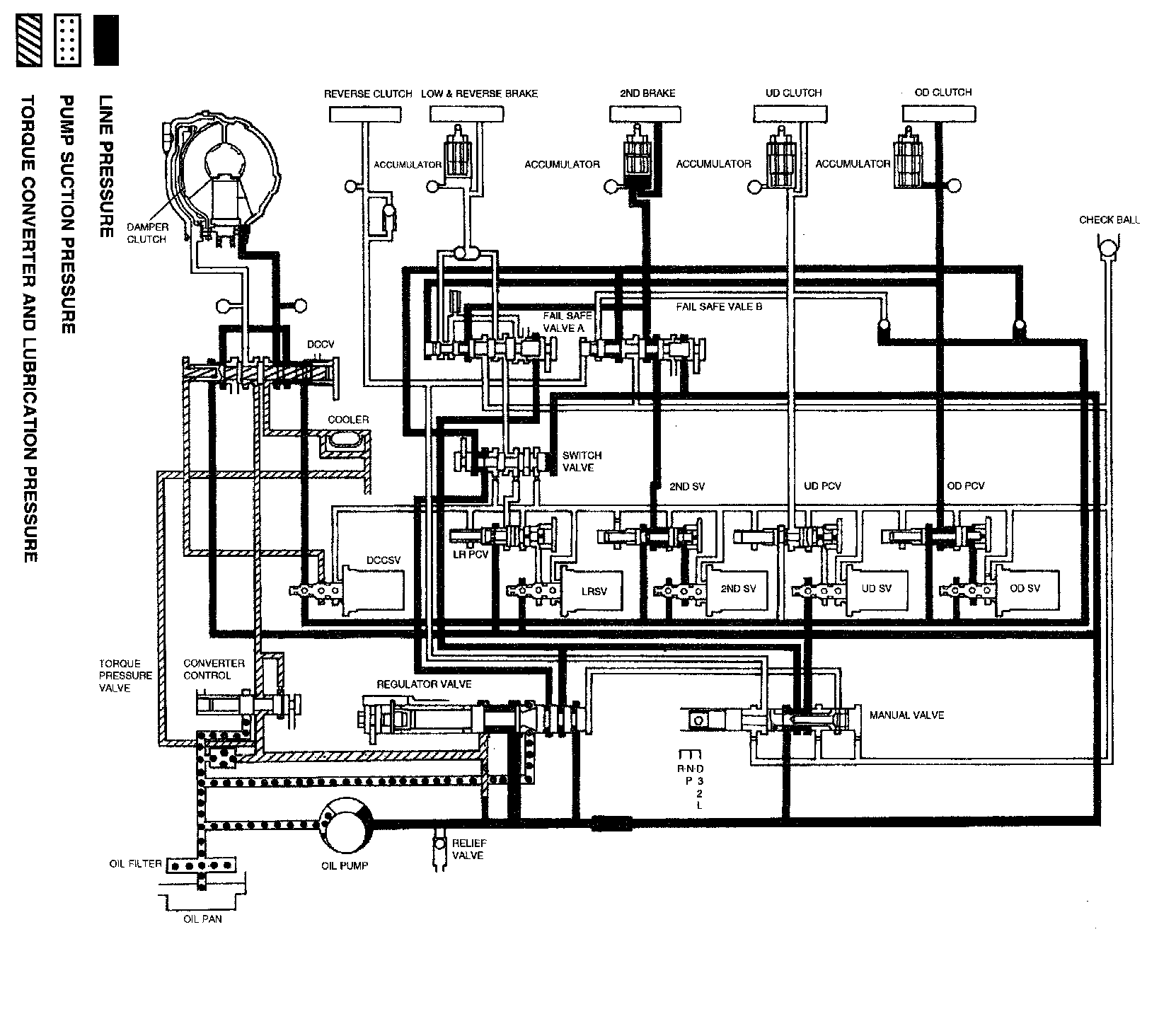

FOURTH





REVERSE
