Home >> Kia >> 2004 >> Spectra L4-1.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams

Fuse Block: Diagrams

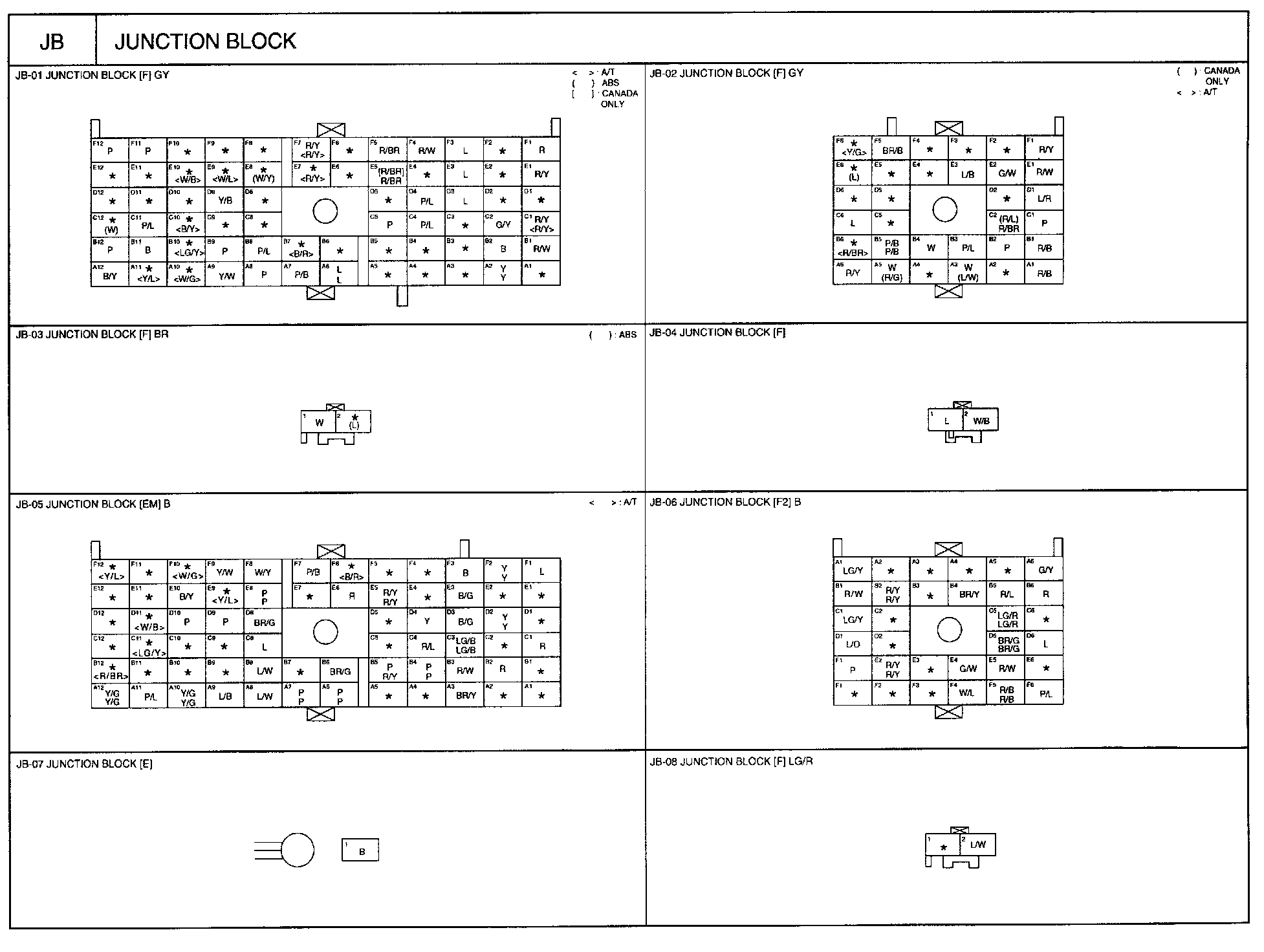

JB-JUNCTION BLOCK:
