Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2006
>>
Magentis (CANADA) L4-2.4L VIN 3
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Control Harness
Control Harness

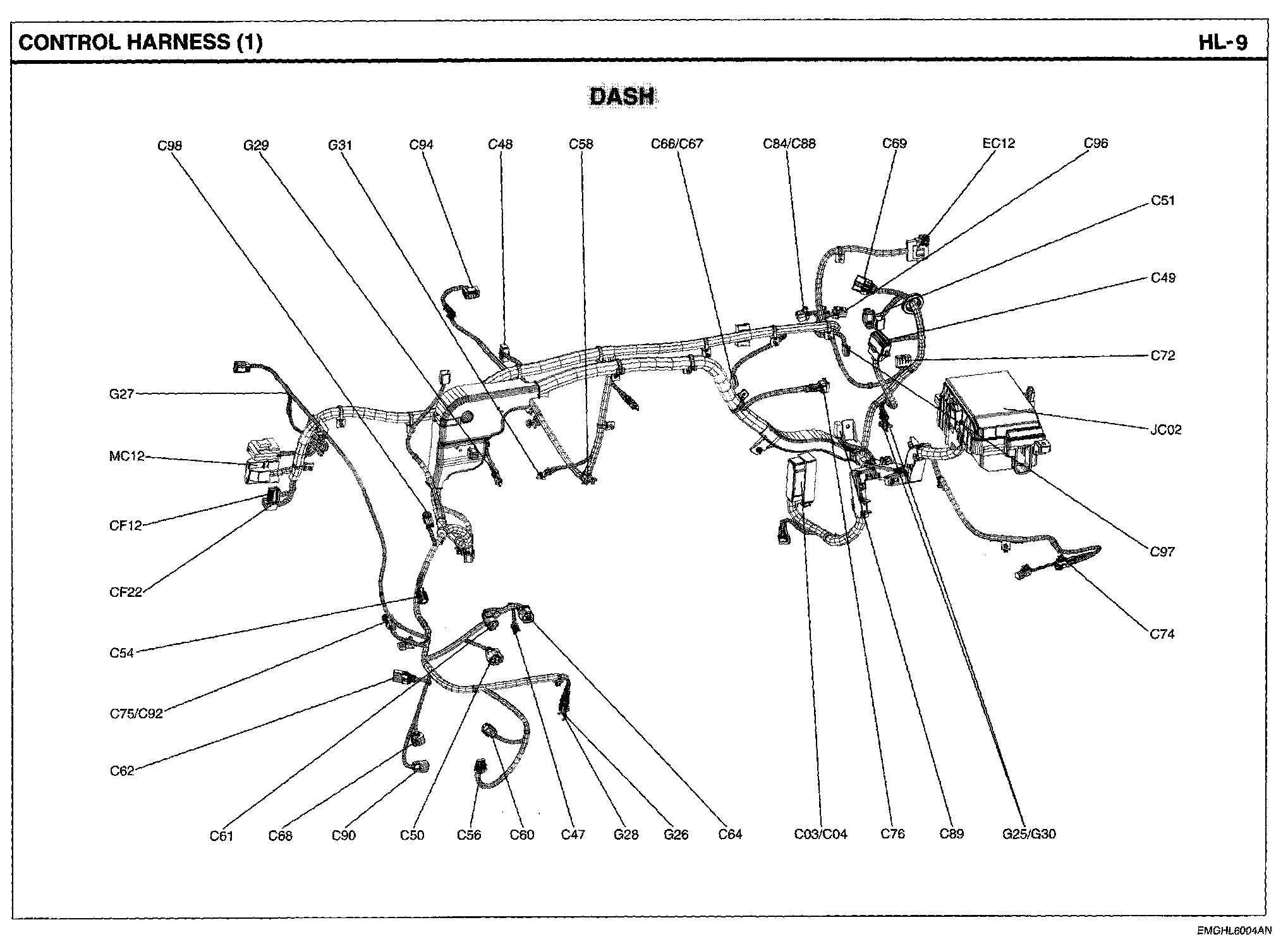

Control Harness View:

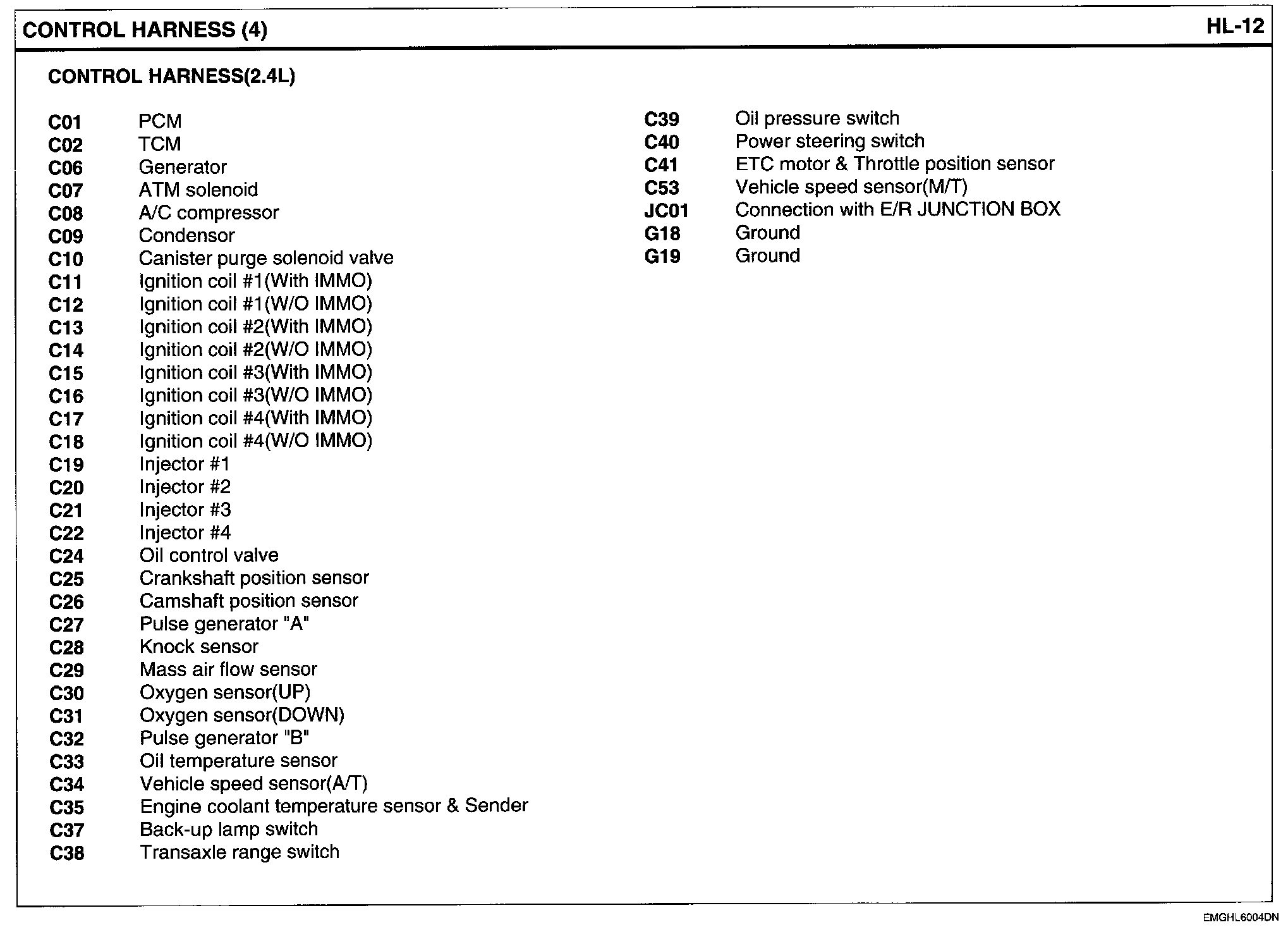

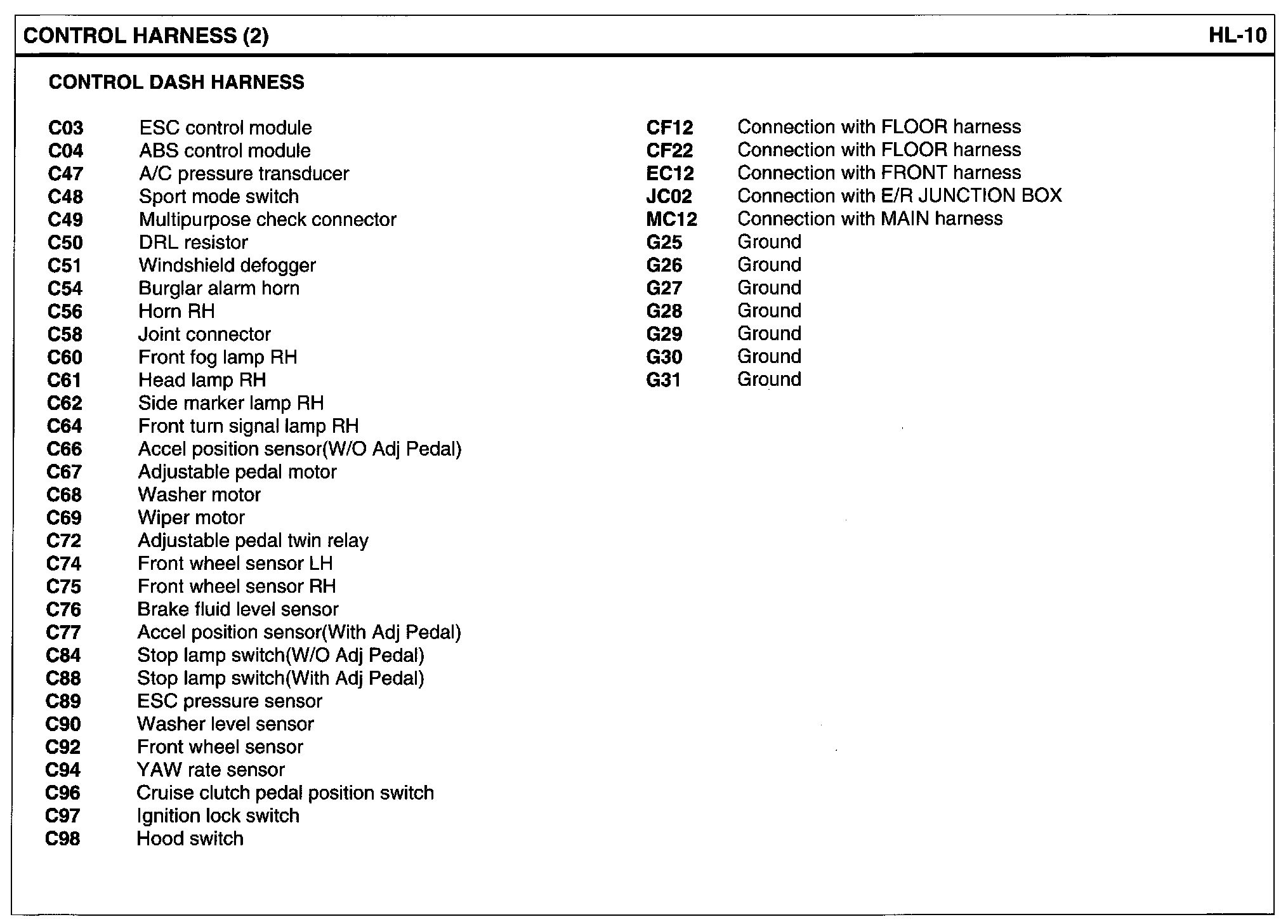

Control Harness Index:

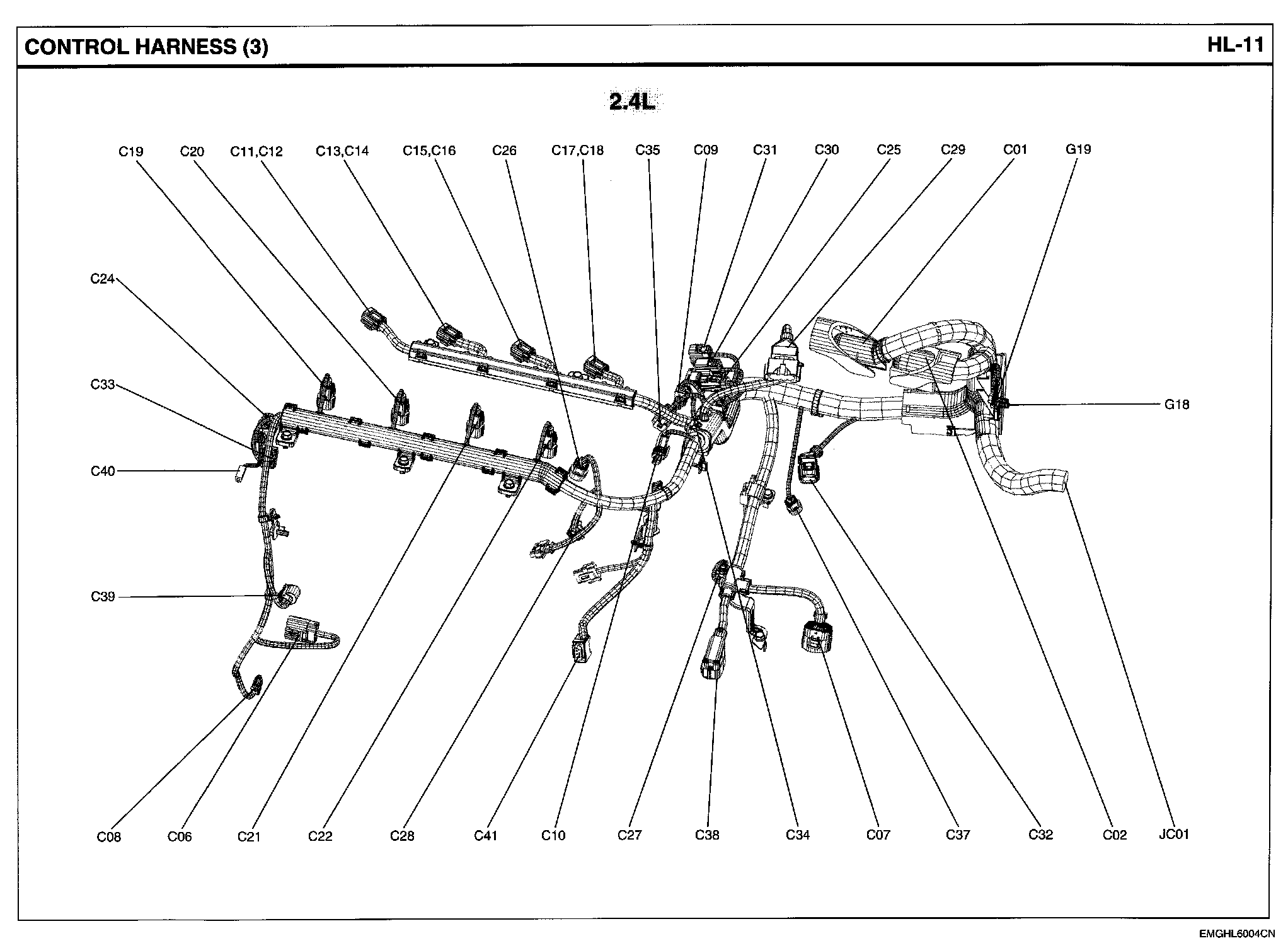

Control Harness View:
