Repair Procedures (A5GF1)

REMOVAL

1. Remove the center console cover(A).




2. Remove the center console(A).




3. Disconnect the sports mode connector(A).

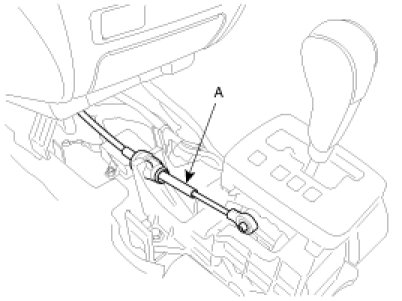

4. Disconnect the control cable(A).




5. Remove the shift lever assembly(A) (Bolt : 4EA)
