Automatic Transmission/Transaxle

AUTOMATIC TRANSAXLE

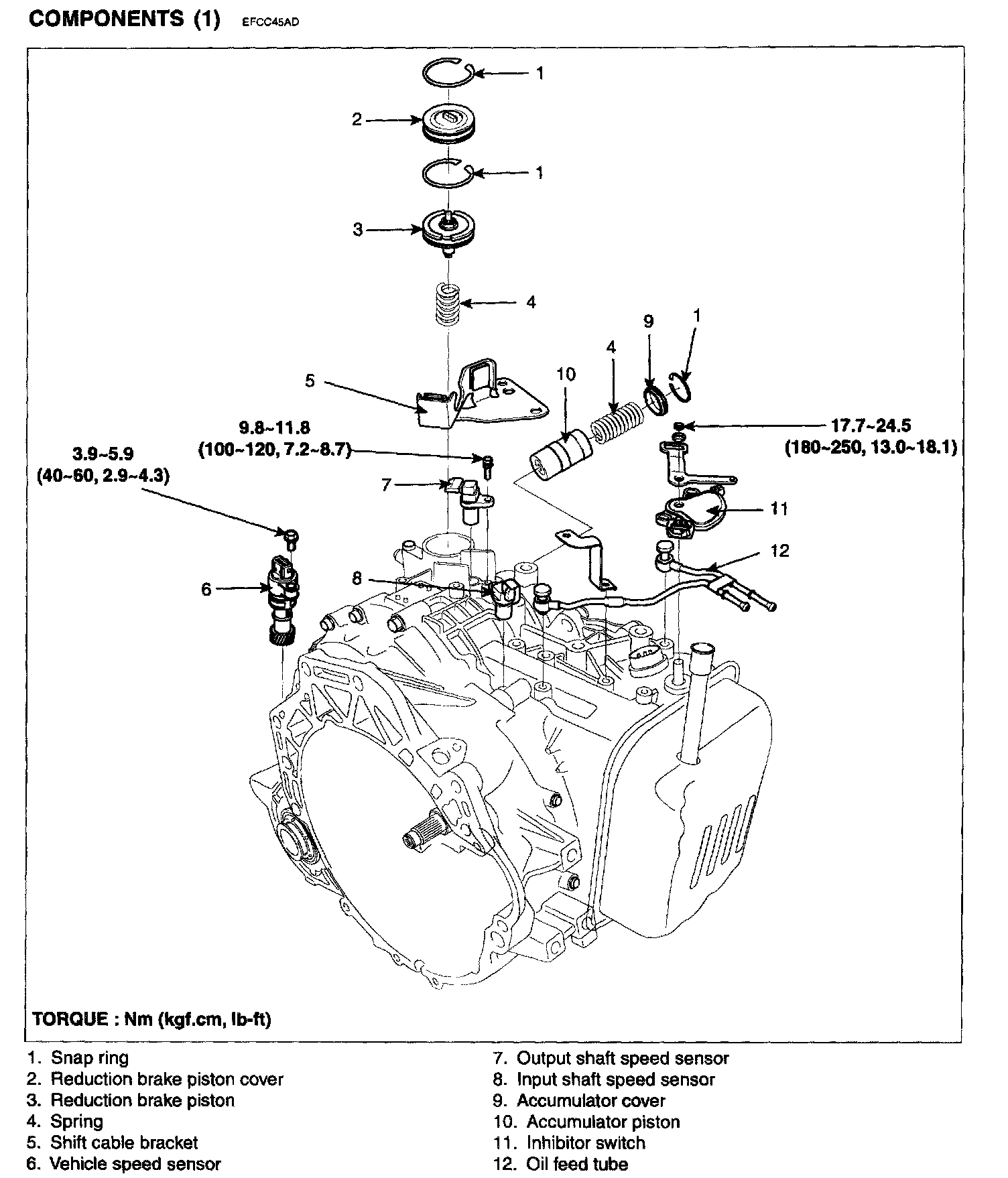

Components (1):




Components (2):

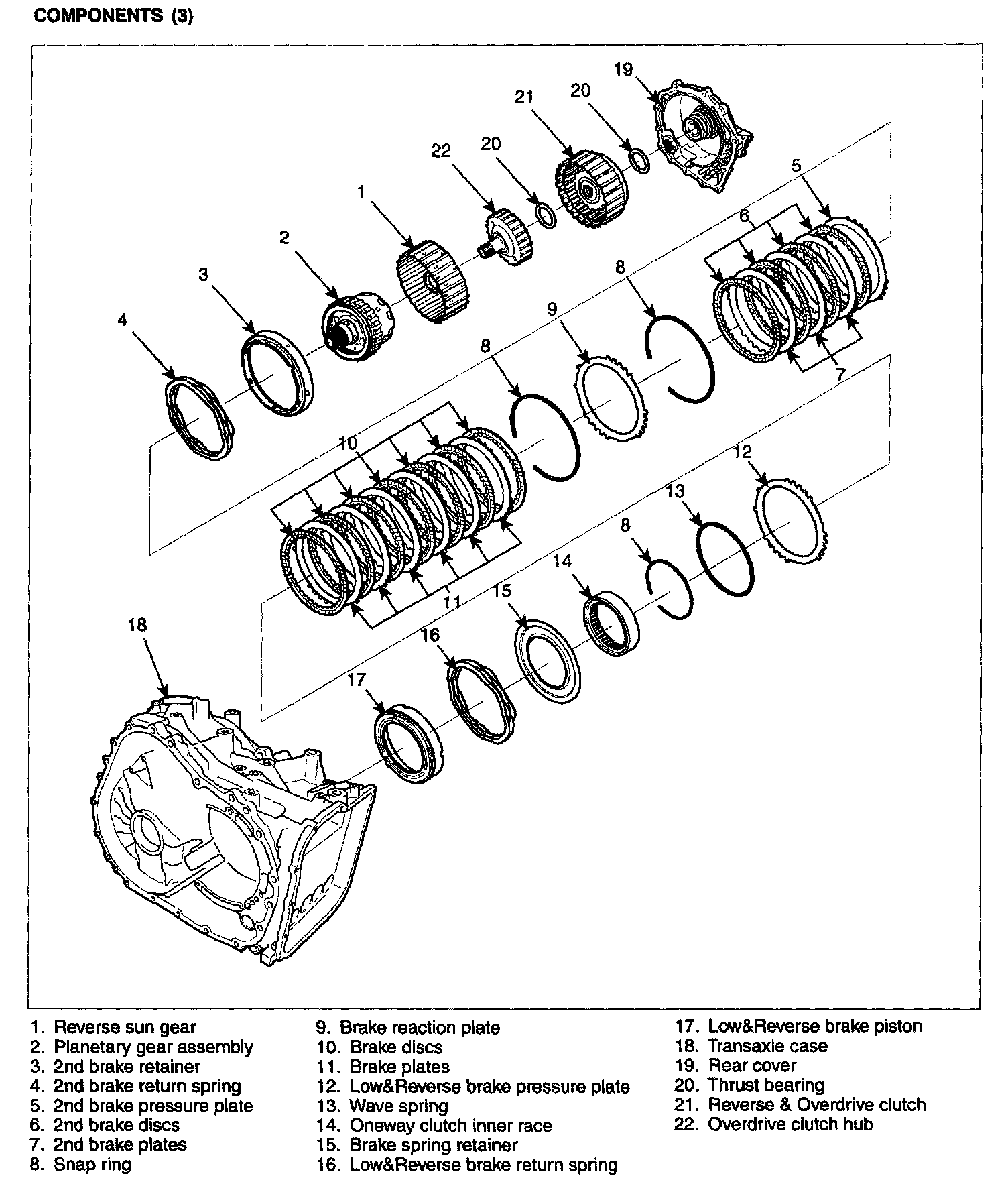

Components (3):
